M2200S014 40.000000,M220x差分有源晶體,MtronPTI進口晶振

產品簡介

M2200S014 40.000000,M220x差分有源晶體,MtronPTI進口晶振，編碼：M2200S014 40.000000，型號：M220x系列晶振，工作溫度：-40°C to +85°C，精度：±20ppm，尺寸：9.0*14.0mm，頻率：40MHz，電壓：3.3V，輸出方式：LVPECL，有源晶振SPXO，石英晶體振蕩器，美國進口晶振，差分晶振，采用QiK ChipTM技術 從訂購到發貨只需2周出色的抖動性能（小于0.25 ps RMS， 12千赫至20兆赫）鋸的替代品-更好的性能頻率從150兆赫到1.4千兆赫，應用在SONET / SDH / DWDM /等電信技術， FEC / SERDES / OC-3至OC-192 1-2-4-10千兆位光纖通道，無線基站/無線局域網/千兆以太網，航空電子飛行控制，軍事通信設備，時鐘和數據恢復 ，標清/高清視頻 FPGA/ASIC時鐘生成，測試和測量設備。

產品詳情

M2200S014 40.000000,M220x差分有源晶體,MtronPTI進口晶振，參數表

編碼	M2200S014 40.000000
品牌	MtronPTI晶振
型號	M220x
頻率	40MHz
精度	±20ppm
輸出方式	LVPECL
電壓	3.3V
工作溫度	-40°C ~ 85°C

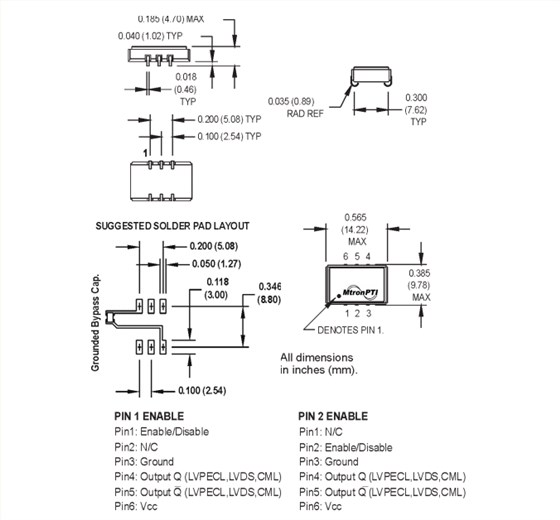

M2200S014 40.000000,M220x差分有源晶體,MtronPTI進口晶振，尺寸圖

Part Number	差分輸出振蕩器	Oscillator Type	Frequency	Frequency Tolerance (ppm)	Package	Temperature Range
M220168MPJ 156.250000	M220x	XO	156.25	±20 ppm	9.0 X 14.0 mm	-20°C to +70°C
M2200S014 40.000000	M220x	XO	40	±20 ppm	9.0 X 14.0 mm	-40°C to +85°C
M2200S015 84.000000	M220x	XO	84	±20 ppm	9.0 X 14.0 mm	-40°C to +85°C
M220024BPJ 500.000000	M220x	XO	500	±50 ppm	9.0 X 14.0 mm	-40°C to +85°C
M220024BPJ 750.000000	M220x	XO	750	±50 ppm	9.0 X 14.0 mm	-40°C to +85°C
M220024MPJ 1360.000000	M220x	XO	1,360.00	±50 ppm	9.0 X 14.0 mm	-40°C to +85°C
M220024SPJ 196.608000	M220x	XO	196.608	±50 ppm	9.0 X 14.0 mm	-40°C to +85°C
M220024UPJ 389.600000	M220x	XO	389.6	±50 ppm	9.0 X 14.0 mm	-40°C to +85°C
M220064UPJ 644.530000	M220x	XO	644.53	±50 ppm	9.0 X 14.0 mm	-20°C to +70°C
M225014FAN 25.000000	M2250	XO	25	±50 ppm	5.0 x 7.0 mm	0°C to +70°C
M225014FAN 50.000000	M2250	XO	50	±50 ppm	5.0 x 7.0 mm	0°C to +70°C
M225014TCN 125.000000	M2250	XO	125	±50 ppm	5.0 x 7.0 mm	0°C to +70°C
M225014TCN 25.000000	M2250	XO	25	±50 ppm	5.0 x 7.0 mm	0°C to +70°C
M225024FCN 25.000000	M2250	XO	25	±50 ppm	5.0 x 7.0 mm	-40°C to +85°C
M225024TCN 25.000000	M2250	XO	25	±50 ppm	5.0 x 7.0 mm	-40°C to +85°C
M225064TAN 25.000000	M2250	XO	25	±50 ppm	5.0 x 7.0 mm	-20°C to +70°C
M225068TCN 125.000000	M2250	XO	125	±20 ppm	5.0 x 7.0 mm	-20°C to +70°C
M2250S010 25.000000	M2250	XO	25	±50 ppm	5.0 x 7.0 mm	-20°C to +70°C
M2250S053 125.000000	M2250	XO	125	±20 ppm	5.0 x 7.0 mm	-20°C to +70°C
M2250S054 25.000000	M2250	XO	25	±25 ppm	5.0 x 7.0 mm	-20°C to +70°C
M240326TCN 8.000000	M2403	XO	8	±25 ppm	2.5 X 3.2 mm	-40°C to +85°C
M240644FCN 8.000000	M2403	XO	8	±50 ppm	5.0 x 7.0 mm	-55°C to +125°C
M2500S037 13.333000	M250x	XO	13.333	±100 ppm	2.5 X 2.0 mm	-40°C to +105°C
M2500S038 25.000000	M250x	XO	25	±25 ppm	2.5 X 2.0 mm	-40°C to +85°C
M2502S004 100.000000	M250x	XO	100	±50 ppm	2.5 X 2.0 mm	-40°C to +85°C
