3225差分石英晶體振蕩器,S3M025T-8.000-R,臺產晶振

產品簡介

3225差分石英晶體振蕩器,S3M025T-8.000-R,臺產晶振，編碼：S3M025T-8.000-R，型號：S3，工作溫度：-20°C ~ 70°C，尺寸：3.2*2.5mm，頻率：8MHz，精度：±25ppm，電壓：1.62V ~ 3.63V，電流：7mA，輸出方式：HCMOS，有源晶振SPXO,XO振蕩器，3225貼片有源晶振，光纖通信差分晶振，差分石英晶體振蕩器，差分時鐘晶體振蕩器，進口晶振，差分晶振具有低電平，低抖動，低功耗、相位低，噪音低，損耗低、精密穩定等特性。差分晶振低電壓的特征，普遍用于對于高速網絡要求，適用于：超速光纖收發器、網路咯路由器、光纖通信，網絡交換機、千兆網、串行ATA、SCSI、高端服務器、電腦周邊、PCI-Express、SDH、SONET、廣播服務、移動通信、基站、網絡設備、航天、航海等。

產品詳情

3225差分石英晶體振蕩器,S3M025T-8.000-R,臺產晶振，參數表

編碼	S3M025T-8.000-R
品牌	AKER
型號	S3
頻率	8MHz
精度	±25ppm
電壓	1.62V ~ 3.63V
電流	7mA
工作溫度	-20°C ~ 70°C
輸出方式	HCMOS
尺寸	3.2*2.5mm

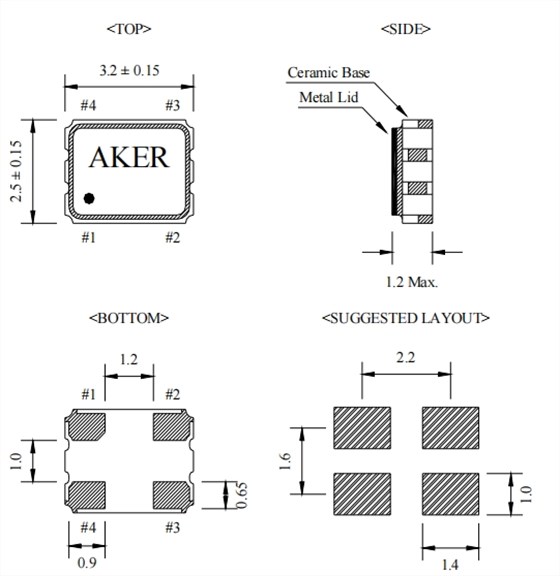

3225差分石英晶體振蕩器,S3M025T-8.000-R,臺產晶振，尺寸圖

Mfr Part #	差分輸出振蕩器	Series	Type	Frequency	Output	Voltage - Supply	Frequency Stability	Operating Temperature	Current - Supply (Max)
S2M025T-24.000-X-R	Aker Technology Corp	S2	XO (Standard)	24 MHz	HCMOS	1.62V ~ 3.63V	±25ppm	-40°C ~ 85°C	12mA
S73305-20.000-X-15-R	Aker Technology Corp	S7	XO (Standard)	20 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C	7mA
S73305T-25.000-R	Aker Technology Corp	S7	XO (Standard)	25 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C	7mA
S73305T-25.000-X-15-R	Aker Technology Corp	S7	XO (Standard)	25 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C	7mA
S733025T-25.000-15-R	Aker Technology Corp	S7	XO (Standard)	25 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C	7mA
S73305T-32.000-R	Aker Technology Corp	S7	XO (Standard)	32 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C	7mA
S73305T-11.2896-X-30-R	Aker Technology Corp	S7	XO (Standard)	11.2896 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C	7mA
S73305T-50.000-X-R	Aker Technology Corp	S7	XO (Standard)	50 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C	12mA
S533025T-25.000-R	Aker Technology Corp	S5	XO (Standard)	25 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C	12mA
S73310-60.000-X-15-R	Aker Technology Corp	S7	XO (Standard)	60 MHz	HCMOS	3.3V	±100ppm	-40°C ~ 85°C	25mA
S3M025T-8.000-R	Aker Technology Corp	S3	XO (Standard)	8 MHz	HCMOS	1.62V ~ 3.63V	±25ppm	-20°C ~ 70°C	7mA
S3M05T-8.000-R	Aker Technology Corp	S3	XO (Standard)	8 MHz	HCMOS	1.62V ~ 3.63V	±50ppm	-20°C ~ 70°C	7mA
S333025T-25.000-X-R	Aker Technology Corp	S3	XO (Standard)	25 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C	12mA
S533025T-25.000-X-R	Aker Technology Corp	S5	XO (Standard)	25 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C	12mA
S325025T-25.000-X-R	Aker Technology Corp	S3	XO (Standard)	25 MHz	HCMOS	2.5V	±25ppm	-40°C ~ 85°C	8mA
S218025T-24.000-R	Aker Technology Corp	S2	XO (Standard)	24 MHz	HCMOS	1.8V	±25ppm	-20°C ~ 70°C	5mA
S2M05T-24.000-R	Aker Technology Corp	S2	XO (Standard)	24 MHz	HCMOS	1.62V ~ 3.63V	±50ppm	-20°C ~ 70°C	12mA
S23305T-50.000-R	Aker Technology Corp	S2	XO (Standard)	50 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C	20mA
S233025T-25.000-R	Aker Technology Corp	S2	XO (Standard)	25 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C	12mA
S23305T-26.000-R	Aker Technology Corp	S2	XO (Standard)	26 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C	12mA
S23305T-50.000-X-R	Aker Technology Corp	S2	XO (Standard)	50 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C	20mA
S2M025T-25.000-X-R	Aker Technology Corp	S2	XO (Standard)	25 MHz	HCMOS	1.62V ~ 3.63V	±25ppm	-40°C ~ 85°C	12mA
S73305T-125.000-R	Aker Technology Corp	S7	XO (Standard)	125 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C	30mA
S53305T-125.000-X-R	Aker Technology Corp	S5	XO (Standard)	125 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C	40mA
S11805T-25.000-X1-R	Aker Technology Corp	S1 X1	XO (Standard)	25 MHz	CMOS	1.8V	±50ppm	-40°C ~ 85°C	5mA
