TZKTADSANF-26.000000有源晶振,2016溫補晶體振蕩器

產品簡介

TZKTADSANF-26.000000有源晶振,2016溫補晶體振蕩器，編碼：TZKTADSANF-26.000000，型號：TZ，工作溫度：-30°C ~ 85°C，尺寸：2.0mm*1.6mm，頻率：26MHz，精度：±500ppb，電壓：1.8V，電流：1.5mA，溫補有源晶振，進口石英晶體振蕩器，OSC石英晶振，2016貼片晶振，溫補晶體振蕩器，高精度溫補晶振 ，典型的2.0 x 1.6 x 0.7 mm陶瓷SMD封裝，用于自動裝配，小巧輕便，具有低抖動，低差損，低相噪，低相控，高性能等特點，產品廣泛應用于工業設備，智能手機，平板電腦，無線通信，智能家具家電等應用。

產品詳情

TZKTADSANF-26.000000有源晶振,2016溫補晶體振蕩器，參數表

編碼	TZKTADSANF-26.000000
品牌	Taitien
型號	TZ
頻率	26MHz
精度	±500ppb
電壓	1.8V
電流	1.5mA
工作溫度	-30°C ~ 85°C
尺寸	2.0mm*1.6mm

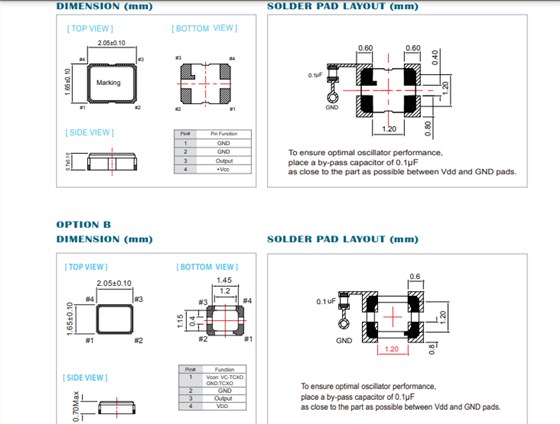

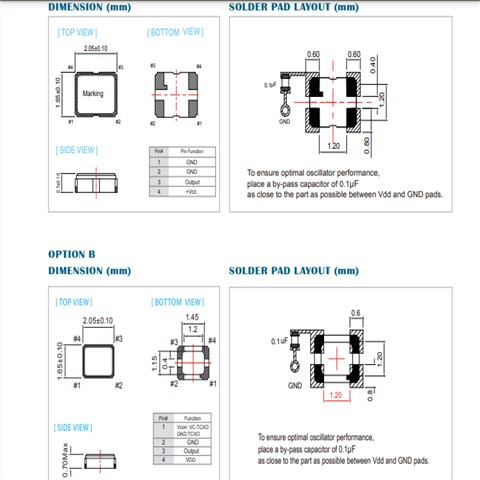

TZKTADSANF-26.000000有源晶振,2016溫補晶體振蕩器，尺寸圖

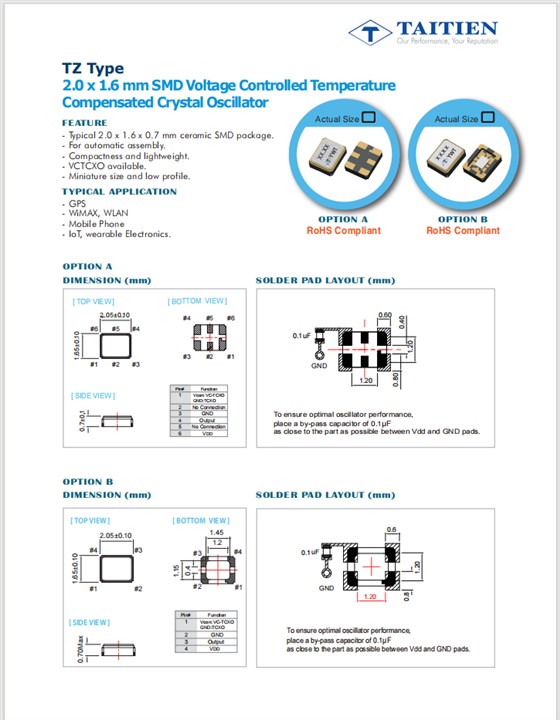

TZ.2016

Mfr Part #	石英晶振2016	Series	Type	Frequency	Output	Voltage - Supply	Frequency Stability
TZKTADSANF-26.000000	Taitien	TZ	TCXO	26 MHz	Clipped Sine Wave	1.8V	±500ppb
TYETBCSANF-32.000000	Taitien	TY	TCXO	32 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm
TYETBLSANF-40.000000	Taitien	TY	TCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm
TYEAPLSANF-40.000000	Taitien	TY	VCTCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1.5ppm
TYETACSANF-26.000000	Taitien	TY	TCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb
TYEAACSANF-38.400000	Taitien	TY	VCTCXO	38.4 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb
TYETBLSANF-38.400000	Taitien	TY	TCXO	38.4 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm
TYETBCSANF-50.000000	Taitien	TY	TCXO	50 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm
TYETACSANF-32.000000	Taitien	TY	TCXO	32 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb
TYETACSANF-20.000000	Taitien	TY	TCXO	20 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb
TYKTCCSANF-38.400000	Taitien	TY	TCXO	38.4 MHz	Clipped Sine Wave	1.8V	±2ppm
TYETBCSANF-20.000000	Taitien	TY	TCXO	20 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm
TZETADSANF-38.400000	Taitien	TZ	TCXO	38.4 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb
TYETACSANF-19.200000	Taitien	TY	TCXO	19.2 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb
TZETADSANF-26.000000	Taitien	TZ	TCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb
TZETADSANF-19.200000	Taitien	TZ	TCXO	19.2 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb
TZKTADSANF-38.400000	Taitien	TZ	TCXO	38.4 MHz	Clipped Sine Wave	1.8V	±500ppb
TZETADSAGF-26.000000	Taitien	TZ	TCXO	26 MHz	Clipped Sine Wave	3.3V	±500ppb
TZJTADSANF-19.200000	Taitien	TZ	TCXO	19.2 MHz	Clipped Sine Wave	2.5V	±500ppb
TYJABCSANF-16.367667	Taitien	TY	VCTCXO	16.367667 MHz	Clipped Sine Wave	2.5V	±1ppm
TYJADCSANF-16.367667	Taitien	TY	VCTCXO	16.367667 MHz	Clipped Sine Wave	2.5V	±2.5ppm
TYEAPCSANF-16.367667	Taitien	TY	VCTCXO	16.367667 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1.5ppm
TYKTDLSANF-50.000000	Taitien	TY	TCXO	50 MHz	Clipped Sine Wave	1.8V	±2.5ppm
TYKTBCSANF-26.000000	Taitien	TY	TCXO	26 MHz	Clipped Sine Wave	1.8V	±1ppm
TZETADSAGF-38.400000	Taitien	TZ	TCXO	38.4 MHz	Clipped Sine Wave	3.3V	±500ppb
TYETACSANF-16.367667	Taitien	TY	TCXO	16.367667 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb
TYKTALSANF-26.000000	Taitien	TY	TCXO	26 MHz	Clipped Sine Wave	1.8V	±500ppb
