2016陶瓷貼片晶振,XRCPB24M000F0L00R0,日本村田晶振

產品簡介

2016陶瓷貼片晶振,XRCPB24M000F0L00R0,日本村田晶振 ，編碼：XRCPB24M000F0L00R0，型號：XRCPB，工作溫度：-30°C ~ 85°C，尺寸：2.0mm*1.6mm，頻率：24MHz，精度：±100ppm，負載電容：6pF，進口晶振，muRata諧振器，2016晶振，石英晶諧振器，貼片晶振，無源貼片晶振，陶瓷貼片晶振，實現了小封裝和高精度的晶體單元頻率?；诖逄锏膬?yōu)秀封裝技術和高級石英晶體元件，實現小尺寸和高精密諧振器。特征1.該系列可用于以下應用場合高精度諧振器，特別它是最好的，S-ATA、USB2.0等通信時鐘，諧振器的尺寸非常小，并有助于減少安裝面積，該系列符合RoHS指令，是無鉛的。

產品詳情

2016陶瓷貼片晶振,XRCPB24M000F0L00R0,日本村田晶振，編碼：XRCPB24M000F0L00R0，型號：XRCPB，工作溫度：-30°C ~ 85°C，尺寸：2.0mm*1.6mm，頻率：24MHz，精度：±100ppm，負載電容：6pF，進口晶振，muRata諧振器，2016晶振，石英晶諧振器，貼片晶振，無源貼片晶振，陶瓷貼片晶振，實現了小封裝和高精度的晶體單元頻率。基于村田的優秀封裝技術和高級石英晶體元件，實現小尺寸和高精密諧振器。特征1.該系列可用于以下應用場合高精度諧振器，特別它是最好的，S-ATA、USB2.0等通信時鐘，諧振器的尺寸非常小，并有助于減少安裝面積，該系列符合RoHS指令，是無鉛的。

2016陶瓷貼片晶振,XRCPB24M000F0L00R0,日本村田晶振，參數表

編碼	XRCPB24M000F0L00R0
品牌	muRata
型號	XRCPB
頻率	24 MHz
精度	±100ppm
負載電容	6pF
工作溫度	-30°C ~ 85°C
尺寸	2.0mm*1.6mm

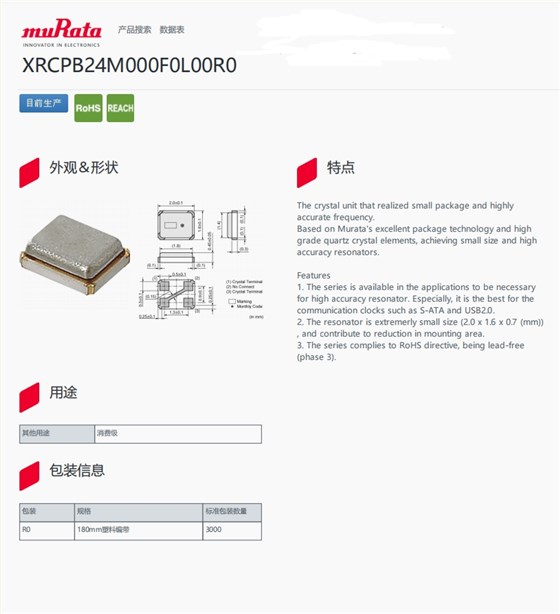

2016陶瓷貼片晶振,XRCPB24M000F0L00R0,日本村田晶振，尺寸圖

Mfr Part #	貼片晶振	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
XRCPB26M000F2P00R0	Murata Electronics	XRCPB	26 MHz	±20ppm	6pF	-30°C ~ 85°C
XRCPB24M000F0Z00R0	Murata Electronics	XRCPB	24 MHz	±100ppm	6pF	-40°C ~ 105°C
XRCPB24M000F2P00R0	Murata Electronics	XRCPB	24 MHz	±20ppm	6pF	-30°C ~ 85°C
XRCPB24M576F0L00R0	Murata Electronics	XRCPB	24.576 MHz	±100ppm	6pF	-30°C ~ 85°C
XRCPB25M000F0Z00R0	Murata Electronics	XRCPB	25 MHz	±100ppm	6pF	-40°C ~ 105°C
XRCPB25M000F3M00R0	Murata Electronics	XRCPB	25 MHz	±30ppm	6pF	-30°C ~ 85°C
XRCPB27M000F2P00R0	Murata Electronics	XRCPB	27 MHz	±20ppm	6pF	-30°C ~ 85°C
XRCPB32M000F0L00R0	Murata Electronics	XRCPB	32 MHz	±100ppm	6pF	-30°C ~ 85°C
XRCPB40M000F0L00R0	Murata Electronics	XRCPB	40 MHz	±100ppm	6pF	-30°C ~ 85°C
XRCPB48M000F4M00R0	Murata Electronics	XRCPB	48 MHz	±45ppm	6pF	-30°C ~ 85°C
XRCPB24M000F0L00R0	Murata Electronics	XRCPB	24 MHz	±100ppm	6pF	-30°C ~ 85°C
XRCPB24M000F3N00R0	Murata Electronics	XRCPB	24 MHz	±30ppm	6pF	-20°C ~ 85°C
XRCPB24M576F0Z00R0	Murata Electronics	XRCPB	24.576 MHz	±100ppm	6pF	-40°C ~ 105°C
XRCPB25M000F0L00R0	Murata Electronics	XRCPB	25 MHz	±100ppm	6pF	-30°C ~ 85°C
XRCPB25M000F2P00R0	Murata Electronics	XRCPB	25 MHz	±20ppm	6pF	-30°C ~ 85°C
XRCPB26M000F0L00R0	Murata Electronics	XRCPB	26 MHz	±100ppm	6pF	-30°C ~ 85°C
XRCPB26M000F0Z00R0	Murata Electronics	XRCPB	26 MHz	±100ppm	6pF	-40°C ~ 105°C
XRCPB26M000F3N00R0	Murata Electronics	XRCPB	26 MHz	±30ppm	6pF	-20°C ~ 85°C
XRCPB27M000F0L00R0	Murata Electronics	XRCPB	27 MHz	±100ppm	6pF	-30°C ~ 85°C
XRCPB27M120F0L00R0	Murata Electronics	XRCPB	27.12 MHz	±100ppm	6pF	-30°C ~ 85°C
XRCPB27M120F2P00R0	Murata Electronics	XRCPB	27.12 MHz	±20ppm	6pF	-30°C ~ 85°C
XRCPB30M000F0L00R0	Murata Electronics	XRCPB	30 MHz	±100ppm	6pF	-30°C ~ 85°C
XRCPB30M000F0Z00R0	Murata Electronics	XRCPB	30 MHz	±100ppm	6pF	-40°C ~ 105°C
