H130B-8.000-18-3030-EXT-TR諧振器,5032貼片晶振
頻率:8 MHz

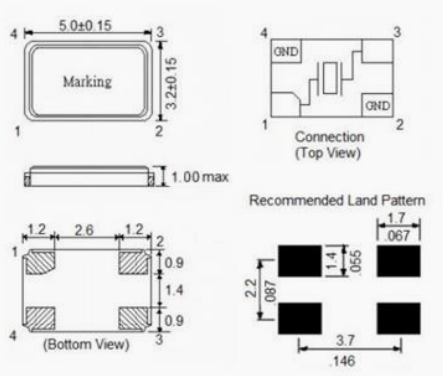

尺寸:5.0mm*3.2mm
H130B-8.000-18-3030-EXT-TR諧振器,5032貼片晶振 ,編碼:H130B-8.000-18-3030-EXT-TR,型號:H130B,工作溫度:-40°C ~ 85°C,尺寸:5.0mm*3.2mm,頻率:8MHz,精度:±30ppm,負載電容:18pF,無源貼片晶振,美國進口晶振,石英晶體諧振器,拉隆石英晶振,貼片晶體,石英晶振,5032進口晶振,5.0 x 3.2 x 1.0毫米的小型封裝,出色的耐受性和穩定性,提供定制規格,產品廣泛應用于無線電話 ,全球定位系統 ,藍牙,智能手機,智能手表,平板電腦,網絡設備。

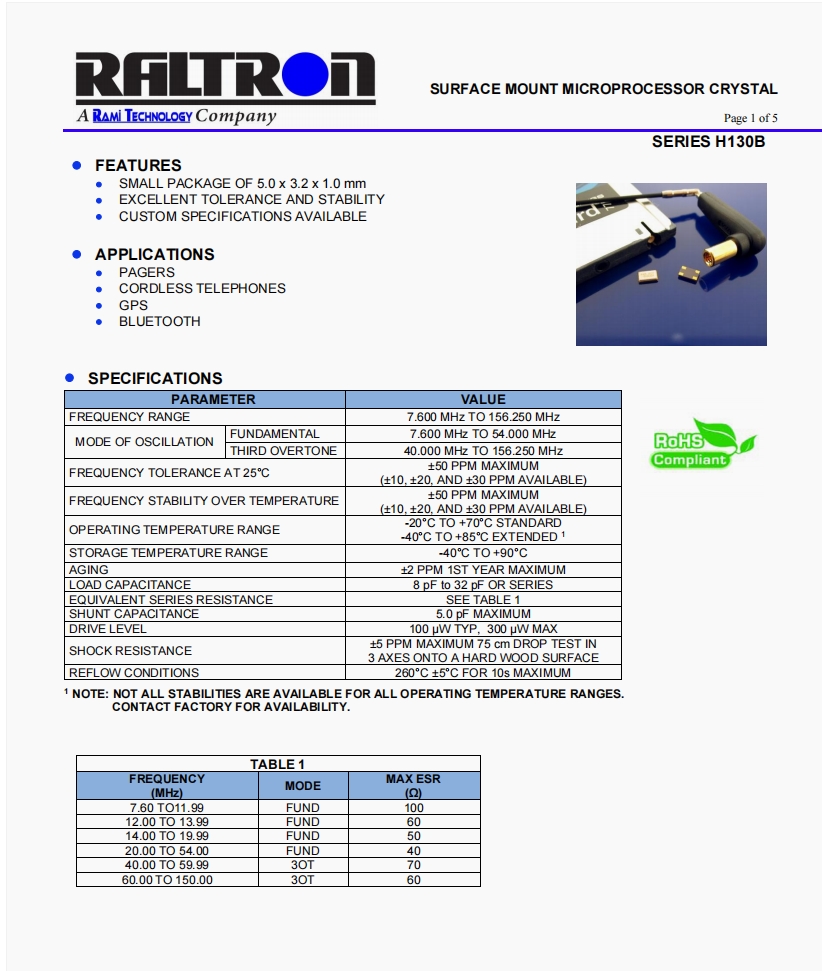

H130B-8.000-18-3030-EXT-TR諧振器,5032貼片晶振 ,參數表
編碼 |
H130B-8.000-18-3030-EXT-TR |
品牌 |
Raltron |
型號 |
H130B |
頻率 | 8MHz |
精度 |
±30ppm |
負載電容 |
18pF |
工作溫度 |
-40°C ~ 85°C |
尺寸 | 5.0mm*3.2mm |
Mfr Part # | 拉隆OSC晶振 | Series | Frequency | Frequency Tolerance | Load Capacitance | Operating Temperature |
H130B-8.000-18-3030-EXT-TR | Raltron Electronics | H130B | 8 MHz | ±30ppm | 18pF | -40°C ~ 85°C |
H130B-16.000-18-3030-EXT-TR | Raltron Electronics | H130B | 16 MHz | ±30ppm | 18pF | -40°C ~ 85°C |
H130B-12.000-18-3030-TR | Raltron Electronics | H130B | 12 MHz | ±30ppm | 18pF | -20°C ~ 70°C |
H130B-24.000-18-3030-EXT-TR | Raltron Electronics | H130B | 24 MHz | ±30ppm | 18pF | -40°C ~ 85°C |
H130A-8.000-8-2030-TR | Raltron Electronics | H130A | 8 MHz | ±20ppm | 8pF | -20°C ~ 70°C |
H13-8.000-18-3030-EXT-TR | Raltron Electronics | H13 | 8 MHz | ±30ppm | 18pF | -40°C ~ 85°C |
H130B-25.000-12-F-EXT-TR | Raltron Electronics | H130B | 25 MHz | ±50ppm | 12pF | -40°C ~ 85°C |
H130B-25.000-20-F-3030-TR | Raltron Electronics | H130B | 25 MHz | ±30ppm | 20pF | -20°C ~ 70°C |
H130B-18.432-18-EXT-TR | Raltron Electronics | H130B | 18.432 MHz | ±50ppm | 18pF | -40°C ~ 85°C |
H130A-24.000-18-2030-EXT-TR | Raltron Electronics | H130A | 24 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
H130B-50.000-16-F-1010-TR | Raltron Electronics | H130B | 50 MHz | ±10ppm | 16pF | -10°C ~ 60°C |
H13-6.000-16-5050-EXT-TR | Raltron Electronics | H13 | 6 MHz | ±50ppm | 16pF | -30°C ~ 85°C |
H130B-12.000-16-2525-EXT-TR | Raltron Electronics | H130B | 12 MHz | ±25ppm | 16pF | -40°C ~ 85°C |
H130B-24.576-22-F-EXT-TR | Raltron Electronics | H130B | 24.576 MHz | ±50ppm | 22pF | -40°C ~ 85°C |
H130A-25.000-18-F-2030-EXT-TR | Raltron Electronics | H130A | 25 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
H130A-24.000-8-2030-TR-NS1 | Raltron Electronics | H130A | 24 MHz | ±20ppm | 8pF | -20°C ~ 70°C |
H130B-25.000-10-F-1010-EXT-TR | Raltron Electronics | H130B | 25 MHz | ±10ppm | 10pF | -40°C ~ 85°C |
H130A-12.000-8-TR | Raltron Electronics | H130A | 12 MHz | ±50ppm | 8pF | -20°C ~ 70°C |
H130A-12.000-18-2030-EXT-TR | Raltron Electronics | H130A | 12 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
H130B-25.000-18-F-1030-EXT-TR | Raltron Electronics | H130B | 25 MHz | ±10ppm | 18pF | -40°C ~ 85°C |
H13-6.000-18-3030-EXT-TR | Raltron Electronics | H13 | 6 MHz | ±30ppm | 18pF | -40°C ~ 85°C |
H13-24.000-18-1020-EXT-TR | Raltron Electronics | H13 | 24 MHz | ±10ppm | 18pF | -30°C ~ 85°C |
H130B-12.000-12-3030-EXT-TR | Raltron Electronics | H130B | 12 MHz | ±30ppm | 12pF | -40°C ~ 85°C |
H130B-27.000-20-F-TR | Raltron Electronics | H130B | 27 MHz | ±50ppm | 20pF | -20°C ~ 70°C |
H130B-12.288-12-EXT-TR | Raltron Electronics | H130B | 12.288 MHz | ±50ppm | 12pF | -40°C ~ 85°C |
H130B-40.000-18-F-1015-EXT-TR | Raltron Electronics | H130B | 40 MHz | ±10ppm | 18pF | -40°C ~ 85°C |
H130B-20.000-20-2050-EXT-TR | Raltron Electronics | H130B | 20 MHz | ±20ppm | 20pF | -40°C ~ 85°C |
H130B-11.0592-22-3030-EXT-TR | Raltron Electronics | H130B | 11.0592 MHz | ±30ppm | 22pF | -40°C ~ 85°C |
H130B-20.000-12-3030-TR | Raltron Electronics | H130B | 20 MHz | ±30ppm | 12pF | -20°C ~ 70°C |
