X3FBPDNANF-37.400000,TAITIEN石英晶振,1612貼片晶體
頻率:37.4 MHz

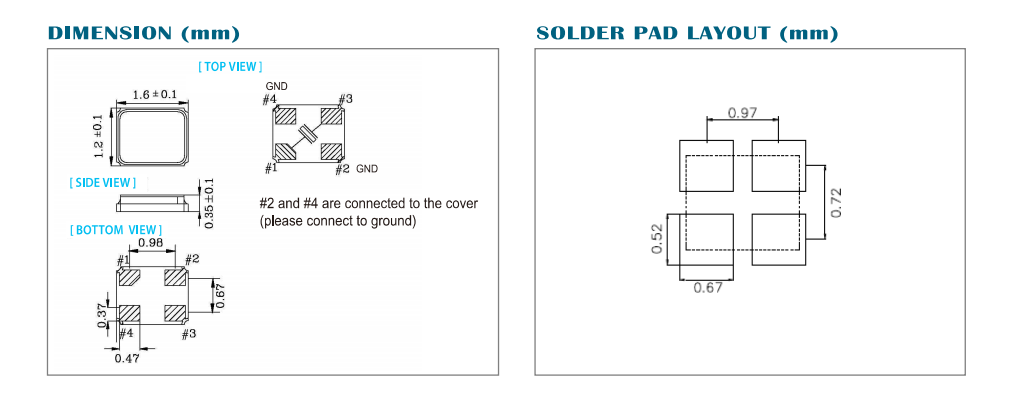

尺寸:1.6mm x 1.2mm
X3FBPDNANF-37.400000,TAITIEN石英晶振,1612貼片晶體,無源晶振,臺灣進口晶振,石英晶體晶振,編碼:X3FBPDNANF-37.400000,型號:X3系列晶振,工作溫度:-30°C ~ 85°C,精度:±10ppm,尺寸:1.6*1.2mm,頻率:37.4MHz,電容:16pF,貼片石英晶體,TAITIEN石英晶振,無源晶振,貼片石英晶體,晶體諧振器,它的特點有:典型的1.6*1.2*0.4mm超薄型陶瓷包裝,8mm的膠帶和卷軸包裝,用于自動組裝,被廣泛應用在藍牙,移動電話,無線局域網,辦公自動化,音頻。
訂購熱線:0755-27876236
X3FBPDNANF-37.400000,TAITIEN石英晶振,1612貼片晶體,無源晶振,臺灣進口晶振,石英晶體晶振,編碼:X3FBPDNANF-37.400000,型號:X3系列晶振,工作溫度:-30°C ~ 85°C,精度:±10ppm,尺寸:1.6*1.2mm,頻率:37.4MHz,電容:16pF,貼片石英晶體,TAITIEN石英晶振,無源晶振,貼片石英晶體,晶體諧振器,它的特點有:典型的1.6*1.2*0.4mm超薄型陶瓷包裝,8mm的膠帶和卷軸包裝,用于自動組裝,被廣泛應用在藍牙,移動電話,無線局域網,辦公自動化,音頻。

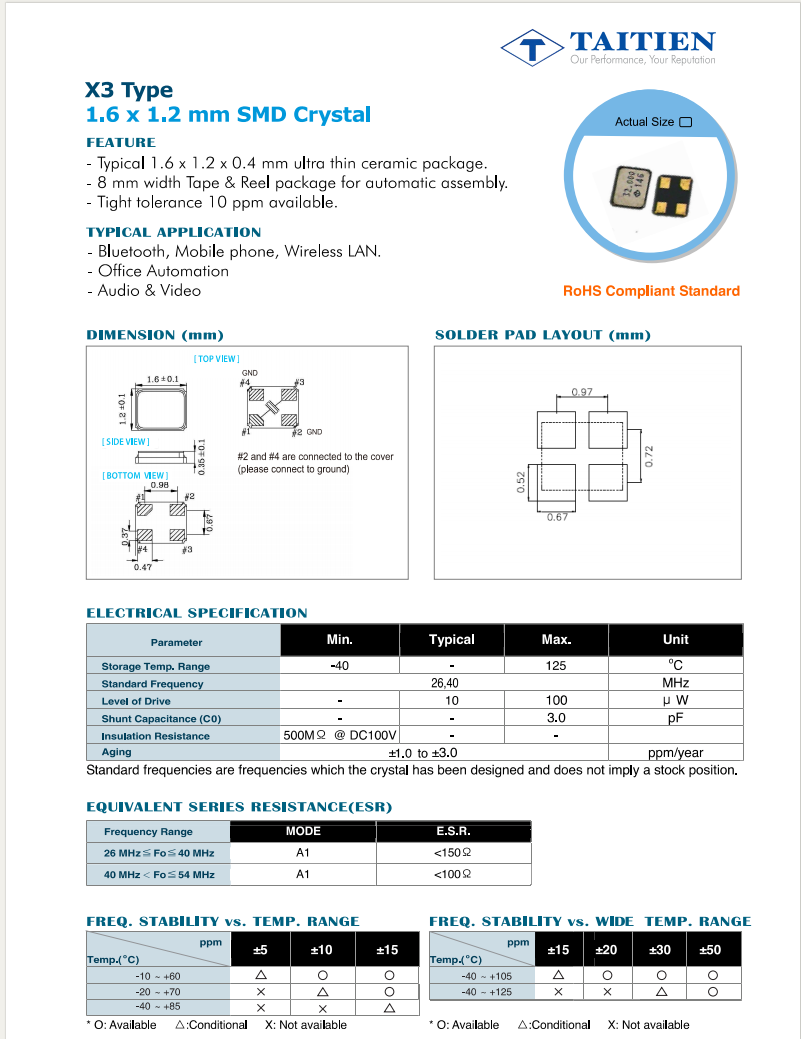

X3FBPDNANF-37.400000,TAITIEN石英晶振,1612貼片晶體,參數表
編碼 | X3FBPDNANF-37.400000 |
品牌 | TAITIEN晶振 |
型號 | X3 |
頻率 | 37.4MHz |
精度 | ±10ppm |
電容 | 16pF |
工作溫度 |
-30°C ~ 85°C |
原廠編碼 | 石英晶振 | 參數描述 | 型號 | 頻率 | 頻率容差 | 負載電容 |
X3AEELNANF-50.000000 | Taitien | CRYSTAL 50.0000MHZ 8PF SMD | X3 | 50 MHz | ±30ppm | 8pF |
X3ABBCNANF-32.000000 | Taitien | CRYSTAL 32.0000MHZ 8PF SMD | X3 | 32 MHz | ±10ppm | 8pF |
X3CBBCNANF-26.000000 | Taitien | CRYSTAL 26.0000MHZ 10PF SMD | X3 | 26 MHz | ±10ppm | 10pF |
X3LBBCNANF-32.000000 | Taitien | CRYSTAL 32.0000MHZ 6PF SMD | X3 | 32 MHz | ±10ppm | 6pF |
X3CBBCNANF-32.000000 | Taitien | CRYSTAL 32.0000MHZ 10PF SMD | X3 | 32 MHz | ±10ppm | 10pF |
X3ABBCNANF-26.000000 | Taitien | CRYSTAL 26.0000MHZ 8PF SMD | X3 | 26 MHz | ±10ppm | 8pF |
X3AEELNANF-26.000000 | Taitien | CRYSTAL 26.0000MHZ 8PF SMD | X3 | 26 MHz | ±30ppm | 8pF |
X3LEELNANF-30.000000 | Taitien | CRYSTAL 30.0000MHZ 6PF SMD | X3 | 30 MHz | ±30ppm | 6pF |
X3AEEJNANF-30.000000 | Taitien | CRYSTAL 30.0000MHZ 8PF SMD | X3 | 30 MHz | ±30ppm | 8pF |
X3LEECNANF-40.000000 | Taitien | CRYSTAL 40.0000MHZ 6PF SMD | X3 | 40 MHz | ±30ppm | 6pF |
X3LEELNANF-32.000000 | Taitien | CRYSTAL 32.0000MHZ 6PF SMD | X3 | 32 MHz | ±30ppm | 6pF |
X3LEEJNANF-40.000000 | Taitien | CRYSTAL 40.0000MHZ 6PF SMD | X3 | 40 MHz | ±30ppm | 6pF |
X3AEEJNANF-50.000000 | Taitien | CRYSTAL 50.0000MHZ 8PF SMD | X3 | 50 MHz | ±30ppm | 8pF |
X3AEEJNANF-32.000000 | Taitien | CRYSTAL 32.0000MHZ 8PF SMD | X3 | 32 MHz | ±30ppm | 8pF |
X3AEELNANF-38.400000 | Taitien | CRYSTAL 38.4000MHZ 8PF SMD | X3 | 38.4 MHz | ±30ppm | 8pF |
X3LEEJNANF-50.000000 | Taitien | CRYSTAL 50.0000MHZ 6PF SMD | X3 | 50 MHz | ±30ppm | 6pF |
X3LEEJNANF-26.000000 | Taitien | CRYSTAL 26.0000MHZ 6PF SMD | X3 | 26 MHz | ±30ppm | 6pF |
X3LEEJNANF-38.400000 | Taitien | CRYSTAL 38.4000MHZ 6PF SMD | X3 | 38.4 MHz | ±30ppm | 6pF |
X3LEELNANF-50.000000 | Taitien | CRYSTAL 50.0000MHZ 6PF SMD | X3 | 50 MHz | ±30ppm | 6pF |
X3DBBCNANF-26.000000 | Taitien | CRYSTAL 26.0000MHZ 12PF SMD | X3 | 26 MHz | ±10ppm | 12pF |
X3DCCCNANF-24.000000 | Taitien | CRYSTAL 24.0000MHZ 12PF SMD | X3 | 24 MHz | ±20ppm | 12pF |
X3FBPDNANF-37.400000 | Taitien | CRYSTAL 37.4000MHZ 16PF SMD | X3 | 37.4 MHz | ±10ppm | 16pF |
X3FEECNANF-24.000000 | Taitien | CRYSTAL 24.0000MHZ 16PF SMD | X3 | 24 MHz | ±30ppm | 16pF |
X3HCECNANF-25.000000 | Taitien | CRYSTAL 25.0000MHZ 20PF SMD | X3 | 25 MHz | ±20ppm | 20pF |
X3AEEJNANF-26.000000 | Taitien | CRYSTAL 26.0000MHZ 8PF SMD | X3 | 26 MHz | ±30ppm | 8pF |
X3AEEJNANF-27.000000 | Taitien | CRYSTAL 27.0000MHZ 8PF SMD | X3 | 27 MHz | ±30ppm | 8pF |
X3AEEJNANF-27.120000 | Taitien | CRYSTAL 27.1200MHZ 8PF SMD | X3 | 27.12 MHz | ±30ppm | 8pF |
X3AEEJNANF-38.400000 | Taitien | CRYSTAL 38.4000MHZ 8PF SMD | X3 | 38.4 MHz | ±30ppm | 8pF |
X3AEEJNANF-40.000000 | Taitien | CRYSTAL 40.0000MHZ 8PF SMD | X3 | 40 MHz | ±30ppm | 8pF |
X3AEEJNANF-48.000000 | Taitien | CRYSTAL 48.0000MHZ 8PF SMD | X3 | 48 MHz | ±30ppm | 8pF |
X3AEELNANF-27.000000 | Taitien | CRYSTAL 27.0000MHZ 8PF SMD | X3 | 27 MHz | ±30ppm | 8pF |
X3AEELNANF-27.120000 | Taitien | CRYSTAL 27.1200MHZ 8PF SMD | X3 | 27.12 MHz | ±30ppm | 8pF |
X3AEELNANF-30.000000 | Taitien | CRYSTAL 30.0000MHZ 8PF SMD | X3 | 30 MHz | ±30ppm | 8pF |
