7X-50.000MBE-T,3225貼片晶體,TXC石英晶體振蕩器
頻率:50 MHz

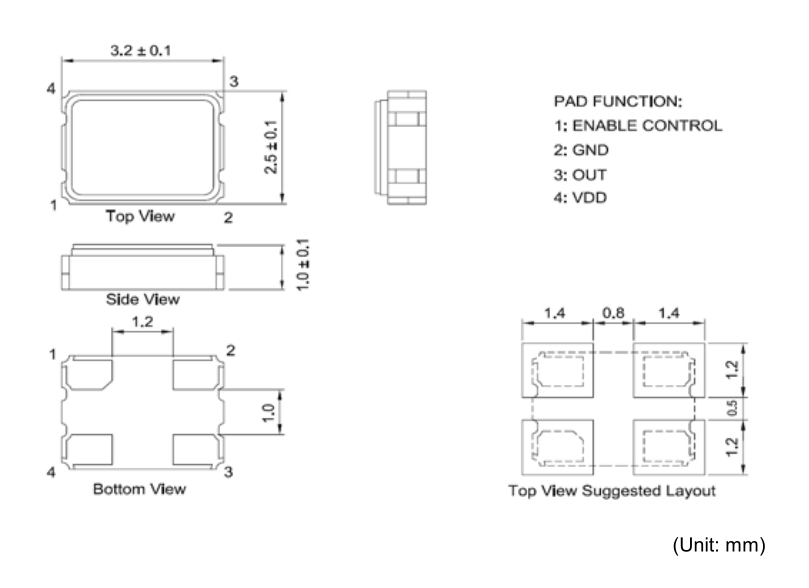

尺寸:3.2mm*2.5mm

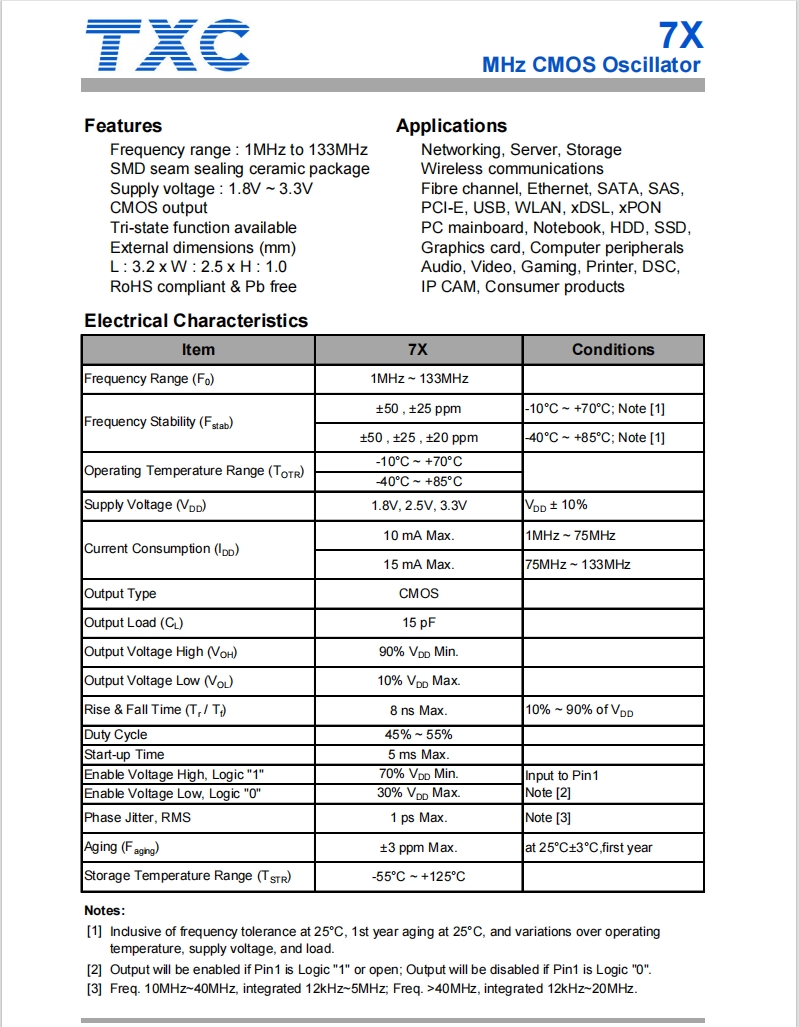

7X-50.000MBE-T,3225貼片晶體,TXC石英晶體振蕩器,編碼:7X-50.000MBE-T,型號:7X,工作溫度:-40°C ~ 85°C,尺寸:3.2mm*2.5mm,頻率:50 MHz,精度:±50ppm,電壓:3.3V,電流:20mA,進口石英晶體振蕩器,有源晶振SPXO,OSC石英晶振,時鐘晶體振蕩器,TXC晶振,3225進口晶振,頻率范圍: 1MHz至133MHz,SMD接縫密封陶瓷封裝,電源電壓: 1.8V ~ 3.3V,CMOS輸出,三態功能可用,符合RoHS標準& Pb免費,被廣泛應用到網絡、服務器、存儲、光纖通道,計算機外設,打印機,微波爐,數碼電子產品。
7X-50.000MBE-T,3225貼片晶體,TXC石英晶體振蕩器,參數表
編碼 |
7X-50.000MBE-T |
品牌 | TXC |
型號 | 7X |
頻率 | 50 MHz |
精度 |
±50ppm |
電壓 |
3.3V |
電流 |
20mA |
工作溫度 |
-40°C ~ 85°C |
尺寸 | 3.2mm*2.5mm |
Mfr Part # | 石英晶體振蕩器 | Series | Type | Frequency | Output | Voltage - Supply | Frequency Stability | Operating Temperature |
7X-50.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 50 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
7X-19.200MBA-T | TXC CORPORATION | 7X | XO (Standard) | 19.2 MHz | CMOS | 3.3V | ±25ppm | -10°C ~ 70°C |
7X-26.000MBA-T | TXC CORPORATION | 7X | XO (Standard) | 26 MHz | CMOS | 3.3V | ±25ppm | -10°C ~ 70°C |
7X-26.000MBB-T | TXC CORPORATION | 7X | XO (Standard) | 26 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
7X-48.000MBB-T | TXC CORPORATION | 7X | XO (Standard) | 48 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
7X-25.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 25 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
7X-38.400MBE-T | TXC CORPORATION | 7X | XO (Standard) | 38.4 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
7X-30.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 30 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
7X-26.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 26 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
7X-30.000MBB-T | TXC CORPORATION | 7X | XO (Standard) | 30 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
7X-38.400MBA-T | TXC CORPORATION | 7X | XO (Standard) | 38.4 MHz | CMOS | 3.3V | ±25ppm | -10°C ~ 70°C |
7X-50.000MBB-T | TXC CORPORATION | 7X | XO (Standard) | 50 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
7X-48.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 48 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
7X-24.576MBB-T | TXC CORPORATION | 7X | XO (Standard) | 24.576 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
7X-12.000MBA-T | TXC CORPORATION | 7X | XO (Standard) | 12 MHz | CMOS | 3.3V | ±25ppm | -10°C ~ 70°C |
7X-19.200MBB-T | TXC CORPORATION | 7X | XO (Standard) | 19.2 MHz | CMOS | 3.3V | ±50ppm | -10°C ~ 70°C |
7X-48.000MBA-T | TXC CORPORATION | 7X | XO (Standard) | 48 MHz | CMOS | 3.3V | ±25ppm | -10°C ~ 70°C |
7X-25.000MBA-T | TXC CORPORATION | 7X | XO (Standard) | 25 MHz | CMOS | 3.3V | ±25ppm | -10°C ~ 70°C |
7X48070007 | TXC CORPORATION | 7X | XO (Standard) | 48 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 105°C |
7X54070001 | TXC CORPORATION | 7X | XO (Standard) | 54 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 105°C |
7X54070002 | TXC CORPORATION | 7X | XO (Standard) | 54 MHz | CMOS | 1.8V | ±50ppm | -40°C ~ 105°C |
7X-5.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 5 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
7X-6.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 6 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
7X-8.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 8 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
7X-10.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 10 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
7X-12.288MBE-T | TXC CORPORATION | 7X | XO (Standard) | 12.288 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
7X-14.7456MBE-T | TXC CORPORATION | 7X | XO (Standard) | 14.7456 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
7X-19.440MBE-T | TXC CORPORATION | 7X | XO (Standard) | 19.44 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
7X-20.480MBE-T | TXC CORPORATION | 7X | XO (Standard) | 20.48 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
7X-24.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 24 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
7X-24.576MBE-T | TXC CORPORATION | 7X | XO (Standard) | 24.576 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
7X-27.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 27 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
7X-32.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 32 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
7X-33.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 33 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
7X-34.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 34 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
