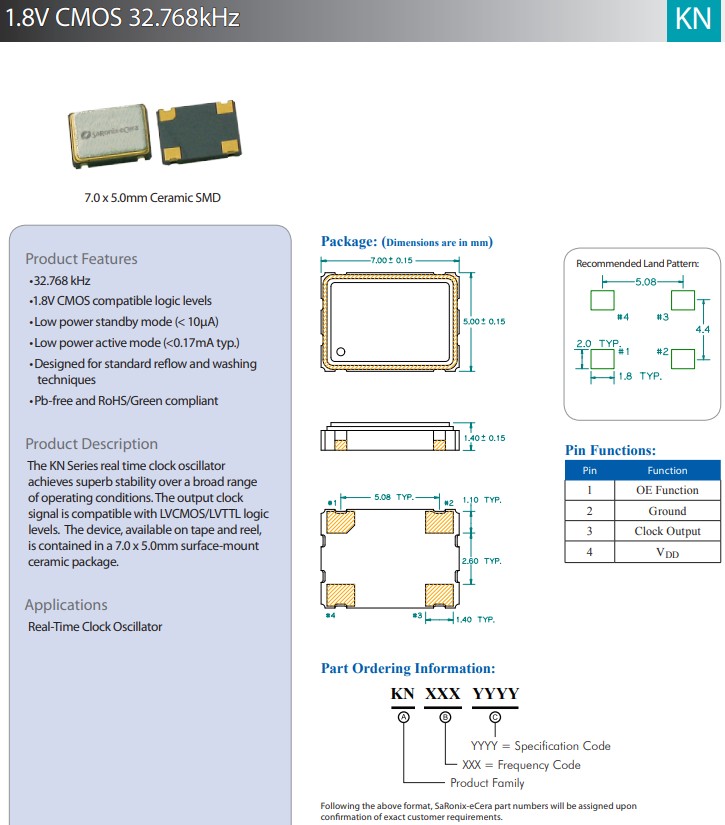

KN系列1.8V小體積尺寸7050mm有源晶振,KN3270034,KN3270026,時鐘晶體振蕩器,ECERA晶振
亞陶晶振KN系列實時時鐘振蕩器在廣泛的工作條件下實現了卓越的穩定性。KN系列1.8V、小體積尺寸7.0x5.0mm、32.768k有源晶振,CMOS晶體振蕩器,輸出時鐘信號與LVCMOS/LVTTL邏輯電平兼容。該器件采用卷帶包裝,采用7.0x5.0mm表面貼裝陶瓷封裝。
特征:
頻率:32.768kHz
1.8V CMOS兼容邏輯電平
低功耗待機模式(< 10μA)
低功耗主動模式(<0.17mA typ.)
專為標準回流和清洗技術而設計
無鉛且符合RoHS/Green標準
應用:實時時鐘晶體振蕩器
KN系列1.8V小體積尺寸7050mm有源晶振,KN3270034,KN3270026,時鐘晶體振蕩器,ECERA晶振
PXA000010 | Diodes Incorporated | SaRonix-eCera™ PX | 100MHz | ±50ppm | -20°C ~ 70°C |
NX5031E0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm | -40°C ~ 85°C |
FD0100003 | Diodes Incorporated | SaRonix-eCera™ FD | 1MHz | ±50ppm | -20°C ~ 70°C |
FD0180008 | Diodes Incorporated | SaRonix-eCera™ FD | 1.8432MHz | ±50ppm | -20°C ~ 70°C |
FD0180009 | Diodes Incorporated | SaRonix-eCera™ FD | 1.8432MHz | ±25ppm | -20°C ~ 70°C |
FD0180010 | Diodes Incorporated | SaRonix-eCera™ FD | 1.8432MHz | ±50ppm | -40°C ~ 85°C |
FD0200013 | Diodes Incorporated | SaRonix-eCera™ FD | 2.048MHz | ±25ppm | -20°C ~ 70°C |
FD0200014 | Diodes Incorporated | SaRonix-eCera™ FD | 2.048MHz | ±50ppm | -40°C ~ 85°C |
FD0200015 | Diodes Incorporated | SaRonix-eCera™ FD | 2.048MHz | ±50ppm | -20°C ~ 70°C |
FD0350006 | Diodes Incorporated | SaRonix-eCera™ FD | 3.579545MHz | ±50ppm | -20°C ~ 70°C |
FD0360017 | Diodes Incorporated | SaRonix-eCera™ FD | 3.6864MHz | ±50ppm | -20°C ~ 70°C |
FD0360018 | Diodes Incorporated | SaRonix-eCera™ FD | 3.6864MHz | ±25ppm | -20°C ~ 70°C |
FD0360019 | Diodes Incorporated | SaRonix-eCera™ FD | 3.6864MHz | ±50ppm | -40°C ~ 85°C |
FD0400021 | Diodes Incorporated | SaRonix-eCera™ FD | 4MHz | ±25ppm | -20°C ~ 70°C |
FD0500003 | Diodes Incorporated | SaRonix-eCera™ FD | 5MHz | ±50ppm | -20°C ~ 70°C |
FD0600006 | Diodes Incorporated | SaRonix-eCera™ FD | 6MHz | ±25ppm | -20°C ~ 70°C |
FD0610002 | Diodes Incorporated | SaRonix-eCera™ FD | 6.144MHz | ±20ppm | -20°C ~ 70°C |
FD0730013 | Diodes Incorporated | SaRonix-eCera™ FD | 7.3728MHz | ±50ppm | -20°C ~ 70°C |
FD0800013 | Diodes Incorporated | SaRonix-eCera™ FD | 8MHz | ±50ppm | -40°C ~ 85°C |
FD0810003 | Diodes Incorporated | SaRonix-eCera™ FD | 8.192MHz | ±50ppm | -20°C ~ 70°C |
FD0810004 | Diodes Incorporated | SaRonix-eCera™ FD | 8.192MHz | ±25ppm | -20°C ~ 70°C |
FD0810005 | Diodes Incorporated | SaRonix-eCera™ FD | 8.192MHz | ±50ppm | -40°C ~ 85°C |
FD0820001 | Diodes Incorporated | SaRonix-eCera™ FD | 8.25MHz | ±50ppm | -20°C ~ 70°C |
FD1000015 | Diodes Incorporated | SaRonix-eCera™ FD | 10MHz | ±50ppm | -20°C ~ 70°C |
FD1000016 | Diodes Incorporated | SaRonix-eCera™ FD | 10MHz | ±25ppm | -20°C ~ 70°C |
FD1000017 | Diodes Incorporated | SaRonix-eCera™ FD | 10MHz | ±50ppm | -40°C ~ 85°C |
FD1100008 | Diodes Incorporated | SaRonix-eCera™ FD | 11.0592MHz | ±50ppm | -40°C ~ 85°C |
FD1120009 | Diodes Incorporated | SaRonix-eCera™ FD | 11.2896MHz | ±50ppm | -20°C ~ 70°C |
FD1200028 | Diodes Incorporated | SaRonix-eCera™ FD | 12MHz | ±50ppm | -20°C ~ 70°C |
FD1200029 | Diodes Incorporated | SaRonix-eCera™ FD | 12MHz | ±25ppm | -20°C ~ 70°C |
FD1200030 | Diodes Incorporated | SaRonix-eCera™ FD | 12MHz | ±50ppm | -40°C ~ 85°C |
FD1220014 | Diodes Incorporated | SaRonix-eCera™ FD | 12.288MHz | ±50ppm | -20°C ~ 70°C |
FD1220015 | Diodes Incorporated | SaRonix-eCera™ FD | 12.288MHz | ±50ppm | -40°C ~ 85°C |
FD1220016 | Diodes Incorporated | SaRonix-eCera™ FD | 12.288MHz | ±25ppm | -20°C ~ 70°C |
FD1350007 | Diodes Incorporated | SaRonix-eCera™ FD | 13.5MHz | ±50ppm | -20°C ~ 70°C |
FD1430016 | Diodes Incorporated | SaRonix-eCera™ FD | 14.3181MHz | ±50ppm | -20°C ~ 70°C |
FD1430018 | Diodes Incorporated | SaRonix-eCera™ FD | 14.3181MHz | ±50ppm | -40°C ~ 85°C |
FD1470015 | Diodes Incorporated | SaRonix-eCera™ FD | 14.7456MHz | ±50ppm | -20°C ~ 70°C |
FD1470017 | Diodes Incorporated | SaRonix-eCera™ FD | 14.7456MHz | ±50ppm | -40°C ~ 85°C |
FD1600015 | Diodes Incorporated | SaRonix-eCera™ FD | 16MHz | ±50ppm | -20°C ~ 70°C |
FD1600016 | Diodes Incorporated | SaRonix-eCera™ FD | 16MHz | ±25ppm | -20°C ~ 70°C |
FD1600017 | Diodes Incorporated | SaRonix-eCera™ FD | 16MHz | ±50ppm | -40°C ~ 85°C |
FD1630009 | Diodes Incorporated | SaRonix-eCera™ FD | 16.384MHz | ±50ppm | -20°C ~ 70°C |
FD1630010 | Diodes Incorporated | SaRonix-eCera™ FD | 16.384MHz | ±25ppm | -20°C ~ 70°C |
FD1630011 | Diodes Incorporated | SaRonix-eCera™ FD | 16.384MHz | ±50ppm | -40°C ~ 85°C |
FD1630012 | Diodes Incorporated | SaRonix-eCera™ FD | 16.384MHz | ±50ppm | -40°C ~ 85°C |
FD1650001 | Diodes Incorporated | SaRonix-eCera™ FD | 16.5MHz | ±50ppm | -20°C ~ 70°C |
FD1800003 | Diodes Incorporated | SaRonix-eCera™ FD | 18MHz | ±50ppm | -40°C ~ 85°C |
FD1840014 | Diodes Incorporated | SaRonix-eCera™ FD | 18.432MHz | ±50ppm | -20°C ~ 70°C |
FD1940001 | Diodes Incorporated | SaRonix-eCera™ FD | 19.44MHz | ±50ppm | -20°C ~ 70°C |
FD1940002 | Diodes Incorporated | SaRonix-eCera™ FD | 19.44MHz | ±25ppm | -20°C ~ 70°C |

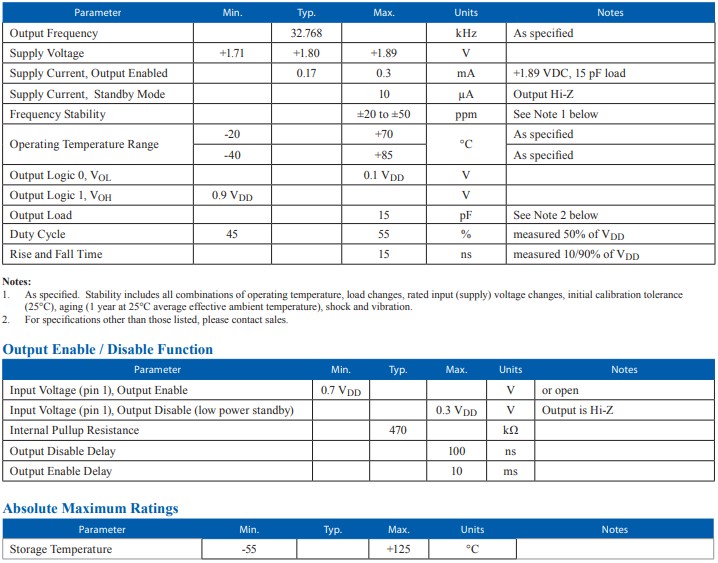

Product Parameters
Output Logic | CMOS |
---|---|
Supply Voltage (V) | 1.8 |
Package Size (mm) | 7.0 x 5.0 x 1.4 |
PkgType | Ceramic Seam |
Stability (PPM) | 20 to 50 |
ProductSeries | KN_1 |
Freq Range (MHz) | 32.768KHZ |
Jitter RMS (ps) | <1 PS |
Pads | 4 |
Family | kHz XO |
KN系列1.8V小體積尺寸7050mm有源晶振,KN3270034,KN3270026,時鐘晶體振蕩器,ECERA晶振
產品參數:
輸出邏輯 CMOS電源電壓 1.8V
包裝尺寸 7.0x5.0x1.4mm貼片晶振
包裝類型 陶瓷縫
穩定性 20PPM到50PPM
產品系列 KN_1
頻率范圍 (MHz) 32.768KHZ
抖動均方根 (ps) <1 PS
墊 4腳
家庭 千赫XO
FD1940004 | Diodes Incorporated | SaRonix-eCera™ FD | 19.44MHz | ±50ppm | -40°C ~ 85°C |
FD2000046 | Diodes Incorporated | SaRonix-eCera™ FD | 20MHz | ±50ppm | -20°C ~ 70°C |
FD2000048 | Diodes Incorporated | SaRonix-eCera™ FD | 20MHz | ±50ppm | -40°C ~ 85°C |
FD2000049 | Diodes Incorporated | SaRonix-eCera™ FD | 20MHz | ±25ppm | -20°C ~ 70°C |
FD2400022 | Diodes Incorporated | SaRonix-eCera™ FD | 24MHz | ±50ppm | -20°C ~ 70°C |
FD2400023 | Diodes Incorporated | SaRonix-eCera™ FD | 24MHz | ±50ppm | -40°C ~ 85°C |
FD2400024 | Diodes Incorporated | SaRonix-eCera™ FD | 24MHz | ±25ppm | -20°C ~ 70°C |
FD2450018 | Diodes Incorporated | SaRonix-eCera™ FD | 24.576MHz | ±50ppm | -20°C ~ 70°C |
FD2450019 | Diodes Incorporated | SaRonix-eCera™ FD | 24.576MHz | ±25ppm | -20°C ~ 70°C |
FD2500049 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±25ppm | -20°C ~ 70°C |
FD2500052 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±50ppm | -40°C ~ 85°C |
FD2500054 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±50ppm | -40°C ~ 85°C |
FD2500057 | Diodes Incorporated | SaRonix-eCera™ FD | 25.0012MHz | ±25ppm | -20°C ~ 70°C |
FD2500058 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±50ppm | -20°C ~ 70°C |
FD2500061 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±25ppm | -20°C ~ 70°C |
FD2600027 | Diodes Incorporated | SaRonix-eCera™ FD | 26MHz | ±50ppm | -20°C ~ 70°C |
FD2600028 | Diodes Incorporated | SaRonix-eCera™ FD | 26MHz | ±25ppm | -20°C ~ 70°C |
FD2600030 | Diodes Incorporated | SaRonix-eCera™ FD | 26MHz | ±50ppm | -40°C ~ 85°C |
FD2600031 | Diodes Incorporated | SaRonix-eCera™ FD | 26MHz | ±25ppm | -20°C ~ 70°C |
FD2660003 | Diodes Incorporated | SaRonix-eCera™ FD | 26.66MHz | ±25ppm | -20°C ~ 70°C |
FD2700033 | Diodes Incorporated | SaRonix-eCera™ FD | 27MHz | ±25ppm | -20°C ~ 70°C |
FD2700034 | Diodes Incorporated | SaRonix-eCera™ FD | 27MHz | ±50ppm | -40°C ~ 85°C |
FD2700035 | Diodes Incorporated | SaRonix-eCera™ FD | 27MHz | ±50ppm | -20°C ~ 70°C |
FD2700038 | Diodes Incorporated | SaRonix-eCera™ FD | 27MHz | ±50ppm | -20°C ~ 70°C |
FD2700043 | Diodes Incorporated | SaRonix-eCera™ FD | 27MHz | ±50ppm | -20°C ~ 70°C |
KN系列1.8V小體積尺寸7050mm有源晶振,KN3270034,KN3270026,時鐘晶體振蕩器,ECERA晶振
我們的32.768kHz晶體振蕩器(XO)具有適用于各種應用的卓越性能。我們的產品包括世界上最小的32.768kHz晶體振蕩器 (XO),尺寸僅為2.0x1.6mm(KM系列)。KM 系列旨在應對小型化的挑戰,同時保持時序信號的卓越精度。我們還提供KX系列晶體振蕩器,它們是業界功耗最低(小于10µA)和最嚴格穩定性 (+/- 20 ppm) 的32.768k XO。
由于許多低功耗和便攜式應用程序大部分時間都處于待機模式,因此這些系統必須最大限度地降低待機功耗。我們基于32.768kHz的定時源允許這些系統快速轉換到待機模式(<10ms),以最大限度地延長電池壽命,而不會犧牲維持準確時鐘和日歷所需的穩定性(± 20ppm)。
FD2860005
Diodes Incorporated
SaRonix-eCera™ FD
28.6363MHz
±50ppm
-20°C ~ 70°C
FD2860006
Diodes Incorporated
SaRonix-eCera™ FD
28.63636MHz
±50ppm
-40°C ~ 85°C
FD3000014
Diodes Incorporated
SaRonix-eCera™ FD
30MHz
±25ppm
-20°C ~ 70°C
FD3000015
Diodes Incorporated
SaRonix-eCera™ FD
30MHz
±50ppm
-40°C ~ 85°C
FD3000016
Diodes Incorporated
SaRonix-eCera™ FD
30MHz
±50ppm
-20°C ~ 70°C
FD3120001
Diodes Incorporated
SaRonix-eCera™ FD
31.25MHz
±25ppm
-20°C ~ 70°C
FD3300021
Diodes Incorporated
SaRonix-eCera™ FD
33MHz
±50ppm
-20°C ~ 70°C
FD3300022
Diodes Incorporated
SaRonix-eCera™ FD
33MHz
±25ppm
-20°C ~ 70°C
FD3300023
Diodes Incorporated
SaRonix-eCera™ FD
33MHz
±50ppm
-40°C ~ 85°C
FD3330016
Diodes Incorporated
SaRonix-eCera™ FD
33.333MHz
±25ppm
-20°C ~ 70°C
FD3330017
Diodes Incorporated
SaRonix-eCera™ FD
33.333MHz
±50ppm
-40°C ~ 85°C
FD3330018
Diodes Incorporated
SaRonix-eCera™ FD
33.3333MHz
±50ppm
-20°C ~ 70°C
FD3330019
Diodes Incorporated
SaRonix-eCera™ FD
33.3333MHz
±25ppm
-20°C ~ 70°C
FD3330020
Diodes Incorporated
SaRonix-eCera™ FD
33.3333MHz
±50ppm
-40°C ~ 85°C
FD3330022
Diodes Incorporated
SaRonix-eCera™ FD
33.333MHz
±50ppm
-20°C ~ 70°C
FD3330024
Diodes Incorporated
SaRonix-eCera™ FD
33.333333MHz
±25ppm
-20°C ~ 70°C
FD3330026
Diodes Incorporated
SaRonix-eCera™ FD
33.333MHz
±50ppm
-40°C ~ 85°C
FD3430001
Diodes Incorporated
SaRonix-eCera™ FD
34.368MHz
±25ppm
-20°C ~ 70°C
FD3530003
Diodes Incorporated
SaRonix-eCera™ FD
35.328MHz
±50ppm
-20°C ~ 70°C
FD3530004
Diodes Incorporated
SaRonix-eCera™ FD
35.328MHz
±25ppm
-20°C ~ 70°C
FD3530005
Diodes Incorporated
SaRonix-eCera™ FD
35.328MHz
±50ppm
-40°C ~ 85°C
FD3600009
Diodes Incorporated
SaRonix-eCera™ FD
36MHz
±25ppm
-20°C ~ 70°C
FD3680001
Diodes Incorporated
SaRonix-eCera™ FD
36.864MHz
±50ppm
-20°C ~ 70°C
FD3680002
Diodes Incorporated
SaRonix-eCera™ FD
36.864MHz
±25ppm
-20°C ~ 70°C
FD3680003
Diodes Incorporated
SaRonix-eCera™ FD
36.864MHz
±50ppm
-40°C ~ 85°C
KN系列1.8V小體積尺寸7050mm有源晶振,KN3270034,KN3270026,時鐘晶體振蕩器,ECERA晶振
KN 1.8V 1.8 7.0x5.0x1.4 陶瓷縫 20~50 KN_1 32.768KHZ <1 4 1.8V、7.0x5.0mm、32.768kHz CMOS晶體振蕩器
KN 2.5V 2.5 7.0x5.0x1.4 陶瓷縫 20~50 KN_2 32.768KHZ <1 4 2.5V、7.0x5.0mm、32.768kHz CMOS晶體振蕩器
KN 3.3V 3.3 7.0x5.0x1.4 陶瓷縫 20~50 KN_3 32.768KHZ <1 4 3.3V、7.0x5.0mm、32.768kHz CMOS晶體振蕩器
KX201 1.82.53.3 2.0x1.6x0.75 陶瓷縫 20~50 KX201 32.768KHZ <1 4 1.8V/2.5V/3.3V, 2.0x1.6mm, 32.768kHz CMOS晶體振蕩器
KX251 1.82.53.3 2.5x2.0x0.9 陶瓷縫 20~50 KX251 32.768KHZ <1 4 1.8V/2.5V/3.3V, 2.5x2.0mm, 32.768kHz CMOS晶體振蕩器
KX31Q 3.32.51.8 3.2x2.5 陶瓷縫 20~50 KXQ 32.768KHZ <1 4 1.8/2.5/3.3V、3.2x2.5mm、超低電流、32.768KHz、汽車級CMOS晶體振蕩器
KX321 1.82.53.3 3.2x2.5x1.0 陶瓷縫 20~50 KX321 32.768KHZ <1 4 1.8V/2.5V/3.3V, 3.2x2.5mm, 32.768kHz CMOS晶體振蕩器
KX501 1.82.53.3 5.0x3.2x1.2 陶瓷縫 20~50 KX501 32.768KHZ <1 4 1.8V/2.5V/3.3V, 5.0x3.2mm, 32.768kHz CMOS晶體振蕩器
