高性能LVDS晶體振蕩器UF323/UF33 XO系列,UF3231FB0156.250000,振蕩器,ECERA小體積晶振

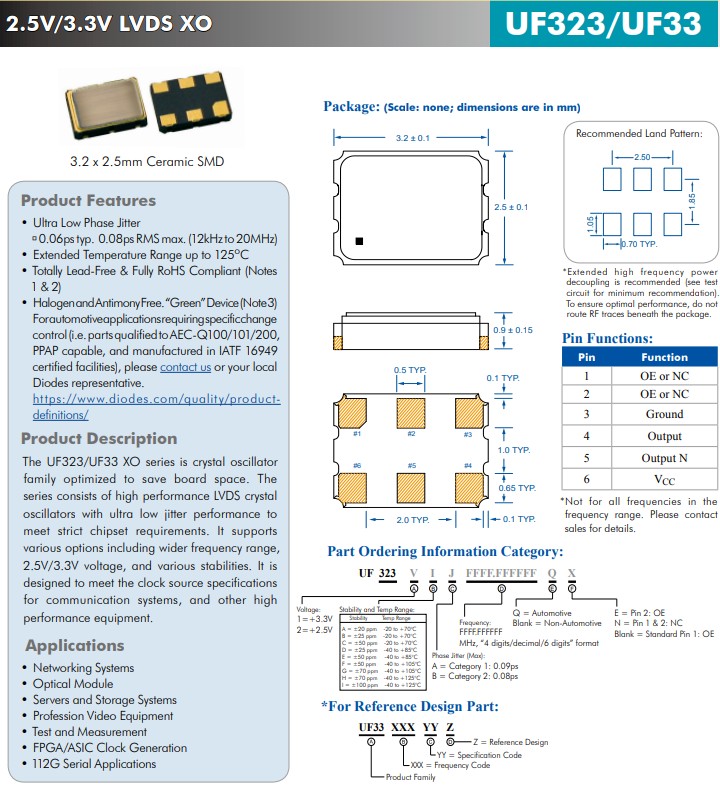

百利通亞陶晶振UF323/UF33 XO系列是經過優化的晶體振蕩器系列，可節省電路板空間。該系列由具有超低抖動性能的高性能LVDS晶體振蕩器組成，可滿足嚴格的芯片組要求。它支持多種選擇，包括更寬的頻率范圍、2.5V/3.3V電壓和各種穩定性。它旨在滿足通信系統和其他高性能設備的時鐘源規范。
特征：
超低相位抖動石英晶振
0.06ps 典型值。0.08ps RMS最大值（12kHz至20MHz）
擴展溫度范圍高達125℃
完全無鉛且完全符合RoHS標準
不含鹵素和銻。“綠色”設備
應用程序：
網絡系統
光模塊
服務器和存儲系統
專業視頻設備
測試與測量
FPGA/ASIC時鐘生成
112G 串行應用
高性能LVDS晶體振蕩器UF323/UF33 XO系列,UF3231FB0156.250000,振蕩器,ECERA小體積晶振
NX7021D0622.080000
Diodes Incorporated
SaRonix-eCera™ NX
622.08MHz
±25ppm
-40°C ~ 85°C
NX7021D0622.080000
Diodes Incorporated
SaRonix-eCera™ NX
622.08MHz
±25ppm
-40°C ~ 85°C
NX7021D0622.080000
Diodes Incorporated
SaRonix-eCera™ NX
622.08MHz
±25ppm
-40°C ~ 85°C
NX7031D0644.531250
Diodes Incorporated
SaRonix-eCera™ NX
644.53125MHz
±25ppm
-40°C ~ 85°C
NX7031D0644.531250
Diodes Incorporated
SaRonix-eCera™ NX
644.53125MHz
±25ppm
-40°C ~ 85°C
NX7031D0644.531250
Diodes Incorporated
SaRonix-eCera™ NX
644.53125MHz
±25ppm
-40°C ~ 85°C
WF7021B0622.080000
Diodes Incorporated
SaRonix-eCera™ WF
622.08MHz
±5ppm
-40°C ~ 85°C
WF7021B0622.080000
Diodes Incorporated
SaRonix-eCera™ WF
622.08MHz
±5ppm
-40°C ~ 85°C
WF7021B0622.080000
Diodes Incorporated
SaRonix-eCera™ WF
622.08MHz
±5ppm
-40°C ~ 85°C
WF9021B0622.080000
Diodes Incorporated
SaRonix-eCera™ WF
622.08MHz
±5ppm
-40°C ~ 85°C
WF9021B0622.080000
Diodes Incorporated
SaRonix-eCera™ WF
622.08MHz
±5ppm
-40°C ~ 85°C
WF9021B0622.080000
Diodes Incorporated
SaRonix-eCera™ WF
622.08MHz
±5ppm
-40°C ~ 85°C
KD3270040
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±25ppm
-40°C ~ 85°C
KD3270040
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±25ppm
-40°C ~ 85°C
KD3270040
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±25ppm
-40°C ~ 85°C
KD3270046Z
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±50ppm
-40°C ~ 85°C
KD3270046Z
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±50ppm
-40°C ~ 85°C
KD3270046Z
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±50ppm
-40°C ~ 85°C
JX5011C0056.000000
Diodes Incorporated
SaRonix-eCera™ JX
56MHz
±50ppm
-20°C ~ 70°C
JX5011C0056.000000
Diodes Incorporated
SaRonix-eCera™ JX
56MHz
±50ppm
-20°C ~ 70°C
JX5011C0056.000000
Diodes Incorporated
SaRonix-eCera™ JX
56MHz
±50ppm
-20°C ~ 70°C
KK3270050
Diodes Incorporated
SaRonix-eCera™ KK
32.768kHz
±25ppm
-20°C ~ 70°C
KK3270050
Diodes Incorporated
SaRonix-eCera™ KK
32.768kHz
±25ppm
-20°C ~ 70°C
KK3270050
Diodes Incorporated
SaRonix-eCera™ KK
32.768kHz
±25ppm
-20°C ~ 70°C
JT255CF0026.000000
Diodes Incorporated
SaRonix-eCera™ JT
26MHz
±500ppb
-30°C ~ 85°C
JT255CF0026.000000
Diodes Incorporated
SaRonix-eCera™ JT
26MHz
±500ppb
-30°C ~ 85°C
| JT255CF0026.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb | -30°C ~ 85°C |
| FRBST1061 | Diodes Incorporated | SaRonix-eCera™ FR | 61.44MHz | ±50ppm | -40°C ~ 85°C |
| JT2551T0039.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 39MHz | ±2.5ppm | -40°C ~ 85°C |
| JT2551T0039.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 39MHz | ±2.5ppm | -40°C ~ 85°C |
| JT2551T0039.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 39MHz | ±2.5ppm | -40°C ~ 85°C |
| KM3270004 | Diodes Incorporated | SaRonix-eCera™ KM | 32.768kHz | ±25ppm | -40°C ~ 85°C |
| FK2500021 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm | -40°C ~ 85°C |
| FN4000159 | Diodes Incorporated | SaRonix-eCera™ FN | 40MHz | ±50ppm | -40°C ~ 85°C |
| FK0800003 | Diodes Incorporated | SaRonix-eCera™ FK | 8MHz | ±50ppm | -20°C ~ 70°C |
| PRBST1122 | Diodes Incorporated | SaRonix-eCera™ FR | 122.88MHz | ±50ppm | -40°C ~ 85°C |
| PRBST1122 | Diodes Incorporated | SaRonix-eCera™ FR | 122.88MHz | ±50ppm | -40°C ~ 85°C |
| PRBST1122 | Diodes Incorporated | SaRonix-eCera™ FR | 122.88MHz | ±50ppm | -40°C ~ 85°C |
| KJ3270001 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm | -40°C ~ 85°C |
| KJ3270001 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm | -40°C ~ 85°C |
| KJ3270001 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm | -40°C ~ 85°C |
| FK2500022 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm | -40°C ~ 85°C |
| FK2500022 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm | -40°C ~ 85°C |
| FK5000013 | Diodes Incorporated | SaRonix-eCera™ FK | 50MHz | ±50ppm | -40°C ~ 85°C |
| FK5000013 | Diodes Incorporated | SaRonix-eCera™ FK | 50MHz | ±50ppm | -40°C ~ 85°C |
| FD2500050 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±50ppm | -20°C ~ 70°C |
| FD2500050 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±50ppm | -20°C ~ 70°C |
| FDSAS2062 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 62.5MHz | ±50ppm | -20°C ~ 70°C |
| FDSAS2062 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 62.5MHz | ±50ppm | -20°C ~ 70°C |
| FDSAS2062 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 62.5MHz | ±50ppm | -20°C ~ 70°C |
| FK1200011 | Diodes Incorporated | SaRonix-eCera™ FK | 12MHz | ±50ppm | -40°C ~ 85°C |

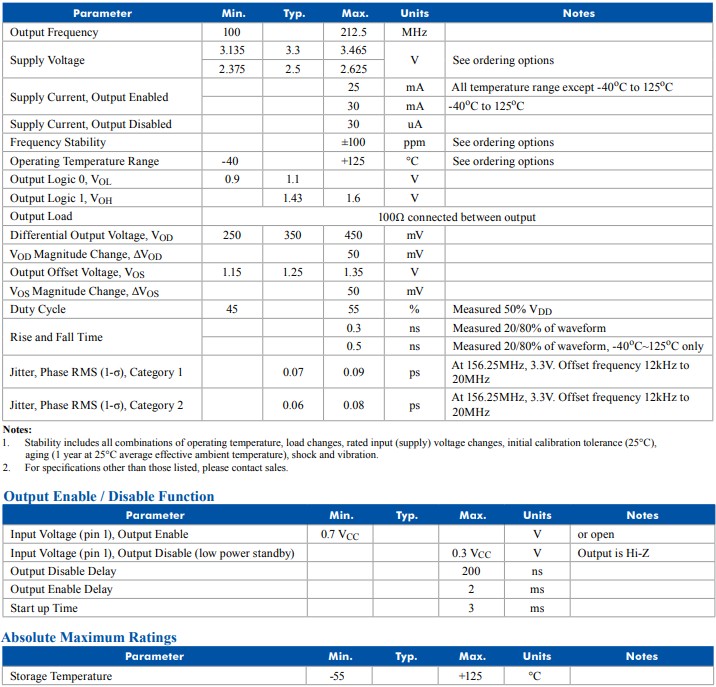

Product Parameters
| Stability (PPM) | 20 to 100 |
|---|---|
| Package Size (mm) | 3.2 x 2.5 x 0.9 |
| PkgType | Ceramic Seam |
| Freq Range (MHz) | 100 to 212.5 |
| Jitter RMS (ps) | 0.08 to 0.09 |
| Output Logic | LVDS |
| Supply Voltage (V) | 3.3, 2.5 |
| Pads | 6 |
| ProductSeries | UFQ3 |
高性能LVDS晶體振蕩器UF323/UF33 XO系列,UF3231FB0156.250000,振蕩器,ECERA小體積晶振
產品參數：
穩定性 20PPM到100PPM包裝尺寸 3.2x2.5x0.9mm有源晶振
包裝類型 陶瓷縫
頻率范圍 (MHz) 100MHz至212.5MHz
抖動均方根 0.08ps至0.09ps
輸出邏輯 LVDS
電源電壓 3.3V, 2.5V
墊 6腳
產品系列 UFQ3
| FK1200011 | Diodes Incorporated | SaRonix-eCera™ FK | 12MHz | ±50ppm | -40°C ~ 85°C |
| FNSAS2075 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 75MHz | ±50ppm | -20°C ~ 70°C |
| FD6250012 | Diodes Incorporated | SaRonix-eCera™ FD | 62.5MHz | ±50ppm | -20°C ~ 70°C |
| KN3270028 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±50ppm | -20°C ~ 70°C |
| KD3270032 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm | -20°C ~ 70°C |
| KN3270031 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±50ppm | -20°C ~ 70°C |
| KD3270042 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm | -20°C ~ 70°C |
| KN3270022 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±50ppm | -20°C ~ 70°C |
| KD3270036 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm | -20°C ~ 70°C |
| KN3270032 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| KN3270033 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| KD3270034 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| KX3211B0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm | -20°C ~ 70°C |
| KX3211C0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm | -20°C ~ 70°C |
| KX3211E0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| KX3211G0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm | 0°C ~ 70°C |
| KX3213B0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm | -20°C ~ 70°C |
| KX3213C0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm | -20°C ~ 70°C |
| KX3213G0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm | 0°C ~ 70°C |
| KX3211H0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm | 0°C ~ 85°C |
| KD3270043 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm | -20°C ~ 70°C |
| KN3270026 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±25ppm | -20°C ~ 70°C |
| KN3270034 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±25ppm | -20°C ~ 70°C |
| KD3270012 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm | -20°C ~ 70°C |
| KK3270040 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm | -20°C ~ 70°C |
最小尺寸的超低抖動晶體振蕩器(XO)，DIODES UF系列超低 抖動，微型晶體振蕩器是 用于高性能計算和網絡的前沿 要求最苛刻的行業 高級應用。Automotivecompliant變體可用。 這種新型晶體振蕩器 支持廣泛的應用 要求非常低的噪音 采用最小的工業標準封裝之一。較大的包裝 也可滿足靈活 設計需求。 有多種輸出標準可供選擇: LVPECL，LVDS和HCSL差分晶振，以及2.5V和3.3V的電源電壓， 提供客戶指定的頻率 高達212.5MHz，溫度 穩定性達到25PPM。
高性能LVDS晶體振蕩器UF323/UF33 XO系列,UF3231FB0156.250000,振蕩器,ECERA小體積晶振
| KK3270042 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| KK3270044 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm | -20°C ~ 70°C |
| KN3270027 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±20ppm | -20°C ~ 70°C |
| KD3270033 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±20ppm | -20°C ~ 70°C |
| KN3270030 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±20ppm | -20°C ~ 70°C |
| KD3270039 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±20ppm | -20°C ~ 70°C |
| KN3270023 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| FNC500129 | Diodes Incorporated | SaRonix-eCera™ FN | 125MHz | ±50ppm | -20°C ~ 70°C |
| KN3270036 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±25ppm | -40°C ~ 85°C |
| KN3270029 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±25ppm | -40°C ~ 85°C |
| KX2511B0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm | -20°C ~ 70°C |
| KX2511C0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm | -20°C ~ 70°C |
| KX2511E0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| KX2511H0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm | 0°C ~ 85°C |
| KX2513C0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm | -20°C ~ 70°C |
| KX2513E0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| KX2513H0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm | 0°C ~ 85°C |
| KX2513B0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm | -20°C ~ 70°C |
| KD3270038 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm | -20°C ~ 70°C |
| KD3270038 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm | -20°C ~ 70°C |
| KD3270038 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm | -20°C ~ 70°C |
| KN3270025 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±25ppm | -20°C ~ 70°C |
| KX2513A0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±20ppm | -20°C ~ 70°C |
| KD3270041 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±20ppm | -20°C ~ 70°C |
| KN3270024 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±20ppm | -20°C ~ 70°C |
高性能LVDS晶體振蕩器UF323/UF33 XO系列,UF3231FB0156.250000,振蕩器,ECERA小體積晶振
UF系列為高速提供超低抖動
為高性能應用提供盡可能小的封裝。
UF系列XO振蕩器
超低均方根抖動(典型值低至50fs)
超過苛刻應用的要求，并且
提供廣泛的設計余量
2.5毫米x2.0mm毫米大小的包裝:
優化電路板空間以支持微型系統設計
寬溫度范圍(-40℃至125℃)
符合汽車行業標準(符合AEC-Q104)的版本
支持在惡劣環境中運行的加固設備設計
應用程序：光學模塊，網絡系統，測試和測量，裝備，112G系列應用，PCIe 5.0建筑，系統，服務器和存儲系統，專業視頻設備，F(xiàn)PGA/ASIC參考時鐘，發電機
