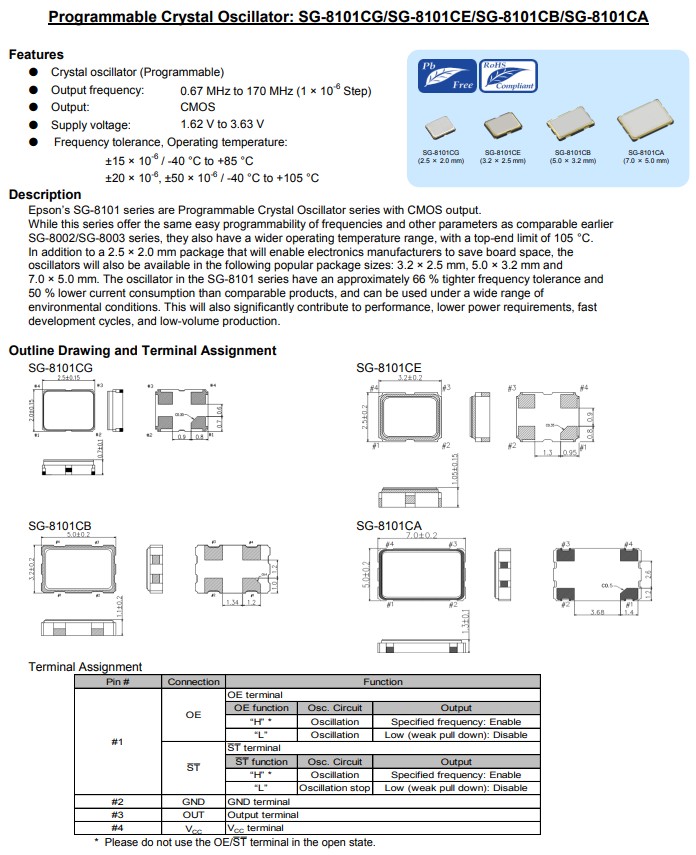

愛普生有源晶振SG-8101系列是一款實現15ppm(工業級)，20ppm(105℃寬溫）)較高精度的石英晶體振蕩器。共有四個常規尺寸，分別是2520mm（SG-8101CG），3225mm（SG-8101CE），5032mm（SG-8101CB）和7050mm（SG-8101CA）小體積封裝有助于電子制造商節省電路板空間，支持CMOS輸出的可編程晶振系列，輸出頻率范圍:0.67MHz至170MHz，電源電壓:1.62V至3.63V。SG-8101系列具有小體積輕薄型，低抖動，低功耗，高性能，高品質，有更高的溫度特性，適用于對穩定性要求更好的晶振應用。被廣泛用于5G-WIFI6，物聯網通訊，鐘表，車載導航，智能手機，WIFI模塊，數碼產品，光電技術等通訊設備及各種頻率控制設備。

WIFI模塊應用晶振SG-8101CG可編程晶振X1G005181001400

愛普生晶振	頻率	型號	尺寸(長寬高)	輸出波	電源電壓	工作溫度
X1G005181001100	48.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181001300	66.666660 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181001400	24.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181001500	100.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181001600	16.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181001700	25.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181001800	25.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181001900	1.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181002000	80.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181002100	58.982400 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181002200	25.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181002300	40.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181002400	50.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181002500	16.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181002600	68.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005181002700	24.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005181002800	16.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005181002900	25.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005181003000	39.321600 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181003100	31.250000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181003200	16.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005181003300	12.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181003400	8.192000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181003500	5.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181003600	96.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181003700	49.152000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C

X1G005181003800	20.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005181003900	33.333000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005181004000	25.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005181004100	21.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005181004200	48.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005181004300	1.544000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181004400	74.176000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005181004500	43.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005181004600	48.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005181004700	2.048000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181004800	35.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181005200	33.333300 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005181005300	125.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181005400	109.800000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181005600	26.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181005700	19.200000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181005800	26.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005181006000	22.579200 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181006100	24.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181006400	38.400000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181006500	12.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005181006800	51.840000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181006900	76.800000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181007000	12.288000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181007200	50.000000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005181007300	19.200000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181007400	74.250000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005181007500	88.200000 MHz	SG-8101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C

WIFI模塊應用晶振SG-8101CG可編程晶振X1G005181001400

愛普生集團是世界500強企業,所涉及領域較廣,主要生產噴墨打印機、激光打印機、點陣式打印機、掃描器和手表、以及電子產品,如石英晶振,32.768K,可編程晶振,石英晶體振蕩器,濾波器等頻率元件.致力于發揮“石英”材料的優越性能的“QMEMS”技術，創造出體積更小、更高性能或全新功能的電子元器件,愛普生晶振集團在晶振全球廠家排名中占據首位.
