超小型晶振|CX2016DB|CX2016DB19200H0KFQC1|19.2MHz|2016mm|12pF
頻率：19.2MHz
尺寸：2.0x1.6mm

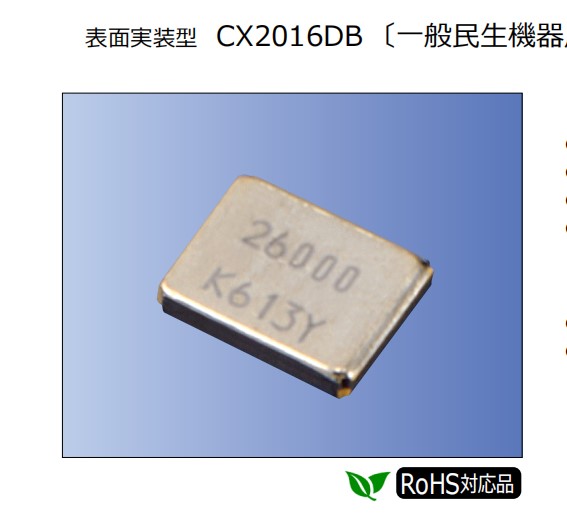

超小型晶振|CX2016DB|CX2016DB19200H0KFQC1|19.2MHz|2016mm|12pF，日本進口晶振，Kyocera京瓷晶振，型號CX2016DB，編碼為CX2016DB19200H0KFQC1，是一款小體積晶振尺寸2.0x1.6mm表面貼裝型，四腳貼片石英晶體，無源晶振，晶體諧振器，石英晶振，無鉛環保晶振，頻率19.2MHz，工作溫度范圍：-30℃至+85℃，具有超小型，輕薄型，耐熱及耐環境特點，石英晶振被廣泛用于通訊設備，數碼家電，一般民用機器設備，無線藍牙，智能手機，平板電腦，智能家居，汽車電子，可穿戴設備，小型便捷式設備等應用。
訂購熱線：0755-27876236
超小型晶振|CX2016DB|CX2016DB19200H0KFQC1|19.2MHz|2016mm|12pF，日本進口晶振，Kyocera京瓷晶振，型號CX2016DB，編碼為CX2016DB19200H0KFQC1，是一款小體積晶振尺寸2.0x1.6mm表面貼裝型，四腳貼片石英晶體，無源晶振，晶體諧振器，石英晶振，無鉛環保晶振，頻率19.2MHz，工作溫度范圍：-30℃至+85℃，具有超小型，輕薄型，耐熱及耐環境特點，石英晶振被廣泛用于通訊設備，數碼家電，一般民用機器設備，無線藍牙，智能手機，平板電腦，智能家居，汽車電子，可穿戴設備，小型便捷式設備等應用。

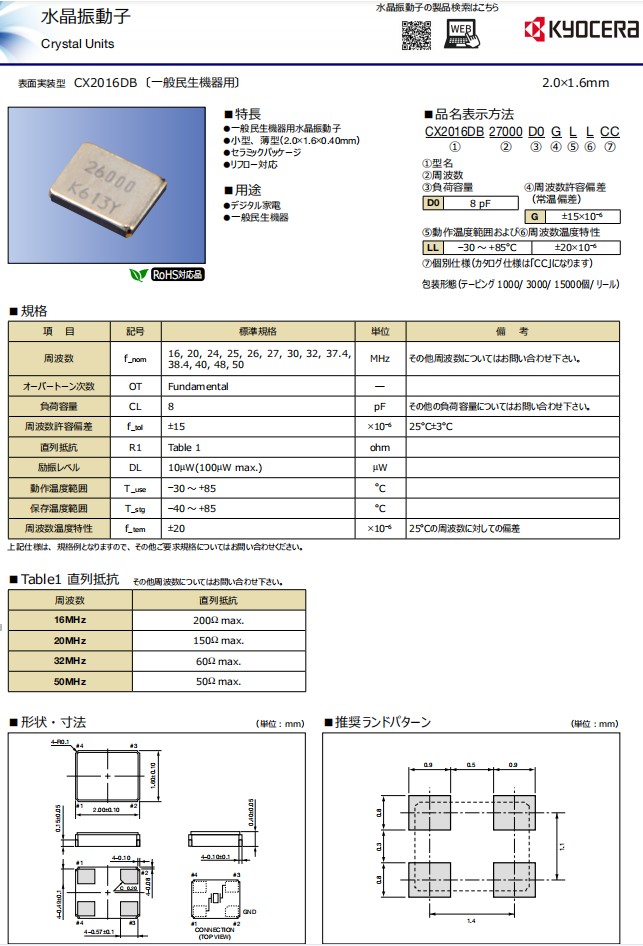

超小型晶振|CX2016DB|CX2016DB19200H0KFQC1|19.2MHz|2016mm|12pF，參數圖
| 項 目 | 記號 | CX2016DB 規格 | 単位 | 備 考 |
| 周波數 |
 f_nom
|
16, 20, 24, 25, 26, 27, 30, 32, 37 .4, 38 .4, 40, 48, 50 | MHz | 關于其他頻率請咨詢 |
| 超調階數 | OT | Fundamental | ― | |
| 負荷容量 | CL | 8 | pF | 關于其他的負荷容量請咨詢 |
| 周波數許容偏差 | f_tol | ± 15 | × 10−6 | 25°C± 3°C |
| 直列抵抗 | R1 | Table 1 | ohm | |
| 激勵水平 | DL | 10μW(100μW max .) |
 W
|
|
| 動作溫度範囲 | T_use | − 30 ~ +85 | °C | |
| 保存溫度範囲 | T_stg | −40 ~ +85 | °C | |
| 周波數溫度特性 | f_tem | ± 20 | × 10−6 | 相對于25℃頻率的偏差 |

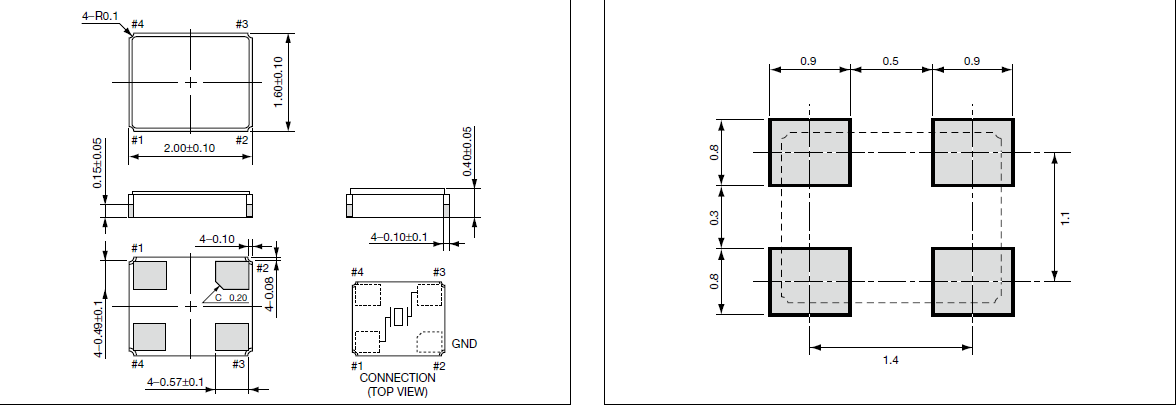

超小型晶振|CX2016DB|CX2016DB19200H0KFQC1|19.2MHz|2016mm|12pF，尺寸圖
超小型晶振|CX2016DB|CX2016DB19200H0KFQC1|19.2MHz|2016mm|12pF
品名表示方法
CX2016DB 27000 D0 G L L CC
① ② ③ ④ ⑤ ⑥ ⑦
①型名
②周波數
③負荷容量
|
D0 |
8 pF |
|
G |
± 15× 10−6 |
⑤動作溫度范圍及
⑥頻率溫度特性
|
LL |
− 30 ~ +85°C |
± 20× 10−6 |
⑦個別規格（目錄規格為“CC”）
包裝形態（包裝1000/3000/15000個/卷軸）
| 原廠編碼 | 京瓷SMD晶振 | 頻率 | 工作溫度 | 包裝/封裝 |
| CX2016DB27120B0HLLC1 | CX2016DB | 27.12MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB19200H0KFQC1 | CX2016DB | 19.2MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CX2016DB38400C0WPLA2 | CX2016DB | 38.4MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB38400D0FLJCC | CX2016DB | 38.4MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB32000D0WZRC1 | CX2016DB | 32MHz | -25°C ~ 75°C | 4-SMD, No Lead |
| CX2016DB26000H0FLJC2 | CX2016DB | 26MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB24000D0GEJCC | CX2016DB | 24MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2016DB32000D0FLJCC | CX2016DB | 32MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB40000D0FLJCC | CX2016DB | 40MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB48000C0WPLA2 | CX2016DB | 48MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB16000D0FLJCC | CX2016DB | 16MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB24000H0FLJC4 | CX2016DB | 24MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB25000H0FLJC1 | CX2016DB | 25MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB24576H0FLJC1 | CX2016DB | 24.576MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB19200D0FLJC1 | CX2016DB | 19.2MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB20000H0FLJC1 | CX2016DB | 20MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB19200H0FLJC2 | CX2016DB | 19.2MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB48000H0FLJC1 | CX2016DB | 48MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB16000H0FLJC1 | CX2016DB | 16MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB25000D0FLJC2 | CX2016DB | 25MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB32000H0FLJC1 | CX2016DB | 32MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB24000D0FLJC6 | CX2016DB | 24MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB27000H0FLFC1 | CX2016DB | 27MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB26000D0FLJCC | CX2016DB | 26MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB20000D0FLJCC | CX2016DB無源晶振 | 20MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB48000E0DLFA1 | CX2016DB | 48MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB16000D0WZRC1 | CX2016DB | 16MHz | -25°C ~ 75°C | 4-SMD, No Lead |
| CX2016DB48000C0WLLA1 | CX2016DB | 48MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB16000D0GPSC1 | CX2016DB | 16MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB32000D0WPRC1 | CX2016DB | 32MHz | -25°C ~ 75°C | 4-SMD, No Lead |
| CX2016DB19200D0GPSC1 | CX2016DB | 19.2MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB20000D0GPSC1 | CX2016DB | 20MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB24000D0GPSC2 | CX2016DB | 24MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB24576D0FLJC1 | CX2016DB | 24.576MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB24576D0GPSC1 | CX2016DB | 24.576MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB25000D0GPSC1 | CX2016DB | 25MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB26000D0FLJC4 | CX2016DB | 26MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB26000D0GPSC1 | CX2016DB | 26MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB27000D0FLJC1 | CX2016DB | 27MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB27000H0FLJC1 | CX2016DB | 27MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB27000D0GPSC1 | CX2016DB | 27MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB30000D0FLJC1 | CX2016DB | 30MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB30000H0FLJC1 | CX2016DB | 30MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB30000D0GPSC1 | CX2016DB | 30MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB32000D0GPSC1 | CX2016DB | 32MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB38400D0FLJC2 | CX2016DB | 38.4MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB38400H0FLJC1 | CX2016DB | 38.4MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB38400D0GPSC1 | CX2016DB | 38.4MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB40000H0FLJC1 | CX2016DB | 40MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB40000D0GPSC1 | CX2016DB | 40MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB48000D0FLJC1 | CX2016DB | 48MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB48000D0GPSC1 | CX2016DB | 48MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB24576D0GEJCC | CX2016DB | 24.576MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2016DB27000D0GEJCC | CX2016DB | 27MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2016DB35416K0DZFA1 | CX2016DB | 35.416MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2016DB35416K0HJLC1 | CX2016DB貼片晶振 | 35.416MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB24576D0GEJZ1 | CX2016DB | 24.576MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2016DB26000D0FLJZ1 | CX2016DB | 26MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB27000D0GEJZ1 | CX2016DB | 27MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2016DB32000D0FLJZ1 | CX2016DB | 32MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB38400D0FLJZ1 | CX2016DB | 38.4MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB40000D0FLJZ1 | CX2016DB | 40MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB24000D0GEJZ1 | CX2016DB | 24MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2016DB26000D0FLJC1 | CX2016DB | 26MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB50000D0KJSC1 | CX2016DB | 50MHz | -30°C ~ 75°C | 4-SMD, No Lead |
| CX2016DB31250K0KJSC1 | CX2016DB | 31.25MHz | -30°C ~ 75°C | 4-SMD, No Lead |
| CX2016DB39062K0KJSC1 | CX2016DB | 39.0625MHz | -30°C ~ 75°C | 4-SMD, No Lead |
| CX2016DB38880D0KJSC1 | CX2016DB | 38.88MHz | -30°C ~ 75°C | 4-SMD, No Lead |
| CX2016DB40960D0KJSC1 | CX2016DB | 40.96MHz | -30°C ~ 75°C | 4-SMD, No Lead |
| CX2016DB53125K0KJSC1 | CX2016DB | 53.125MHz | -30°C ~ 75°C | 4-SMD, No Lead |
