CA25C26M5HLR是一款高性能的光纖通道專用VCXO壓控晶振

返回列表 來源:壹兆電子 查看手機網址
掃一掃!CA25C26M5HLR是一款高性能的光纖通道專用VCXO壓控晶振掃一掃!
瀏覽:- 發布日期:2022-10-21 17:22:54【
分享到:

CA25C26M5HLR是一款高性能的光纖通道專用VCXO壓控晶振,CTS最高頻率壓控晶振突出了獨特的設計技術,使我們的vcxo在市場上獲得最佳的抖動性能,即使頻率大于1.0GHz。客戶可以設計自己的鎖相環電路或與我們的工程師合作定制設計以滿足您的需求。

CTS Frequency Control產品有源晶體振蕩器為無線基礎設施、電纜核心網絡、同步以太網、光網絡、航空電子設備、軍事、石油和天然氣勘探以及測試和測量等應用提供定時和同步解決方案。

334C 19CA25C26M5HLR是一款高性能的光纖通道專用VCXO壓控晶振,CTS 334C型,編碼CA25C26M5HLR是一種低成本、高性能鎖相環壓控晶體振蕩器,支持HCMOS輸出。采用最新的IC技術,M334C具有良好的穩定性和低相位抖動性能。陶瓷表面貼裝包,低相位抖動性能,典型600fs,先進的鎖相環設計與低基頻晶體,頻率范圍10 - 250MHz *,o +2.5V或+3.3V操作,標準輸出開關,帶和卷包裝,EIA-418,應用:電視廣播系統,存儲區域組網,寬帶接入,鎖相環,網絡設備,對以太網/ GbE / SyncE,光纖通道,測試與測量。

Manufacturer Part Number原廠代碼 Manufacturer品牌 Series型號 Frequency 頻率 Frequency Stability頻率穩定度 Size / Dimension 尺寸
632N3I025M00000 CTS-Frequency Controls 632 25MHz ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
632L3I014M74560 CTS-Frequency Controls 632 14.7456MHz ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
632L3I014M74560 CTS-Frequency Controls 632 14.7456MHz ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
632L3I014M74560 CTS-Frequency Controls 632 14.7456MHz ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
632N3I033M00000 CTS-Frequency Controls 632 33MHz ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
632N3I033M00000 CTS-Frequency Controls 632 33MHz ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
632N3I033M00000 CTS貼片晶振
632 33MHz ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
632L3I013M00000 CTS-Frequency Controls 632 13MHz ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
632L3I013M00000 CTS-Frequency Controls 632 13MHz ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
632L3I013M00000 CTS-Frequency Controls 632 13MHz ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
632L3I024M57600 CTS-Frequency Controls 632 24.576MHz ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
632L3I024M57600 CTS-Frequency Controls 632 24.576MHz ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
632L3I024M57600 CTS-Frequency Controls 632 24.576MHz ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
632L3I036M86400 CTS-Frequency Controls 632 36.864MHz ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
632L3I036M86400 CTS-Frequency Controls 632 36.864MHz ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
632L3I036M86400 CTS-Frequency Controls 632 36.864MHz ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
632L3I050M00000 CTS-Frequency Controls 632 50MHz ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
CTS highest frequency voltage controlled crystal oscillators (VCXOs) highlight unique design techniques that allow our VCXOs to achieve the best jitter performance on the market, even at frequencies greater than 1.0GHz. Customers can design their own PLL circuits or work with our engineers to customize a design to fit your needs.

CTS Frequency Control products provide timing and synchronization solutions for applications such as wireless infrastructure, wireline core networking, synchronous Ethernet, optical networking, avionics, military, oil & gas exploration, and test & measurement.

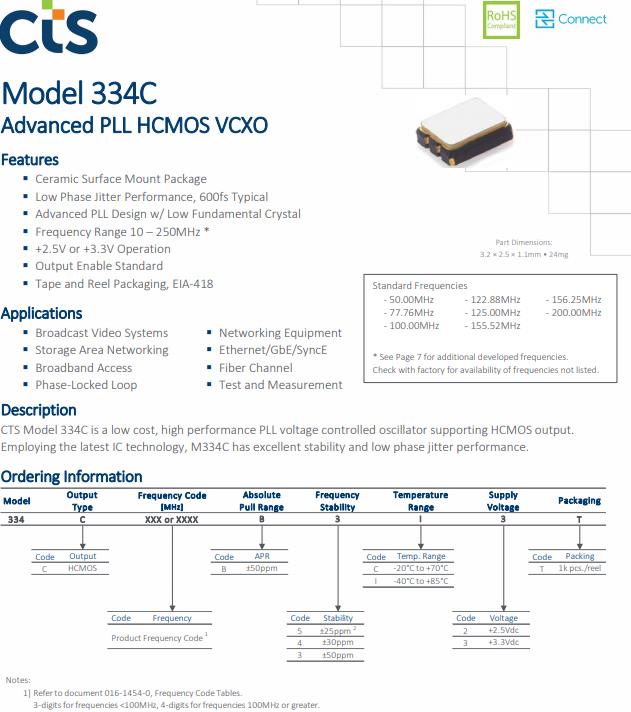

CTS Model 334C is a low cost, high performance PLL voltage controlled oscillator supporting HCMOS output. Employing the latest IC technology, M334C has excellent stability and low phase jitter performance.
