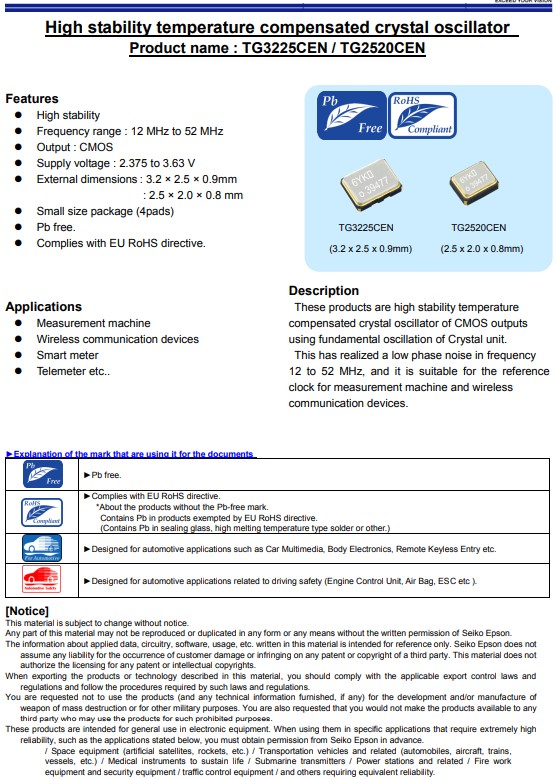

愛普生推出高穩定性溫度補償晶振TG2520CEN，是一款小體積晶振尺寸2.5x2.0mm有源晶振，石英晶體振蕩器，四腳貼片晶振，電源電壓:2.375V至3.63V，頻率范圍:12MHz至52MHz，支持CMOS輸出的溫度補償晶體振蕩器，TG2520CEN有源晶振具有超小型，輕薄型，低抖動，低功耗，低損耗，低耗能，低電源電壓，低相位噪聲，高穩定性等特點。適用于移動通信，GPS，無線藍牙，智能電表，遙測儀。X1G005161000727用于測量機和無線通訊設備的基準時鐘

產品編碼	型號	頻率	貼片晶振	輸出波	電源電壓	精度	工作溫度
X1G005161000227	TG2520CEN	25.000000MHz	2.50x2.00x0.80mm	CMOS	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161000727	TG2520CEN	32.000000MHz	2.50x2.00x0.80mm	CMOS	2.500 to 3.300 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161000927	TG2520CEN	27.000000MHz	2.50x2.00x0.80mm	CMOS	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161001127	TG2520CEN	16.000000MHz	2.50x2.00x0.80mm	CMOS	2.500 to 3.300 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161001227	TG2520CEN	25.000000MHz	2.50x2.00x0.80mm	CMOS	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161001327	TG2520CEN	48.000000MHz	2.50x2.00x0.80mm	CMOS	3.000 to 3.600 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161001427	TG2520CEN	20.000000MHz	2.50x2.00x0.80mm	CMOS	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161001527	TG2520CEN	26.000000MHz	2.50x2.00x0.80mm	CMOS	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161001927	TG2520CEN	38.400000MHz	2.50x2.00x0.80mm	CMOS	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161002227	TG2520CEN	12.288000MHz	2.50x2.00x0.80mm	CMOS	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161002327	TG2520CEN	12.000000MHz	2.50x2.00x0.80mm	CMOS	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161002527	TG2520CEN	40.000000MHz	2.50x2.00x0.80mm	CMOS	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161002627	TG2520CEN	24.000000MHz	2.50x2.00x0.80mm	CMOS	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C
X1G005161002827	TG2520CEN	19.200000MHz	2.50x2.00x0.80mm	CMOS	2.375 to 3.630 V	+/-2.0 ppm	-40 to ++85 °C

X1G005161000727用于測量機和無線通訊設備的基準時鐘

現代電子技術日新月異的發展,使得石英晶體振蕩器廣泛應用于現代通信,導航,測量等領域的電子設備中;工程實際應用中許多設備都工作在溫度范圍變化較大的環境中,由于石英晶體諧振器自身特殊的物理特性,溫度的變化會導致晶體振蕩器的頻率發生偏移.此時晶體振蕩器就不能為設備提供穩定時鐘頻率,導致工作異常,而經過溫度補償?shù)氖⒕w振蕩器彌補了這一缺陷,從而其應用更加廣泛.
