俄烏戰爭三星手機蘋果手機退出小米手機超越TCXO愛普生溫補晶振X1G005421020500
俄烏戰爭三星手機蘋果手機退出小米手機超越TCXO愛普生溫補晶振X1G005421020500
此前在俄烏戰爭爆發后三星手機從3月起暫停了對俄羅斯的出貨.這一舉措導致其在俄羅斯的市場份額大幅流失,從去年末的30%一路狂降至不足10%.如今,三星可能終于扛不住了.
由于蘋果手機和三星手機都停止向俄供貨,愛普生晶振導致市場份額大減,而中國智能手機品牌迅速搶占了俄羅斯的市場份額.根據俄羅斯最大的移動運營商MobileTeleSystemsPJSC(MTS)的數據,今年第二季度小米手機超越三星手機,成為俄羅斯最暢銷的智能手機品牌.而在俄羅斯最暢銷的前五名智能手機品牌中有三個是中國品牌.

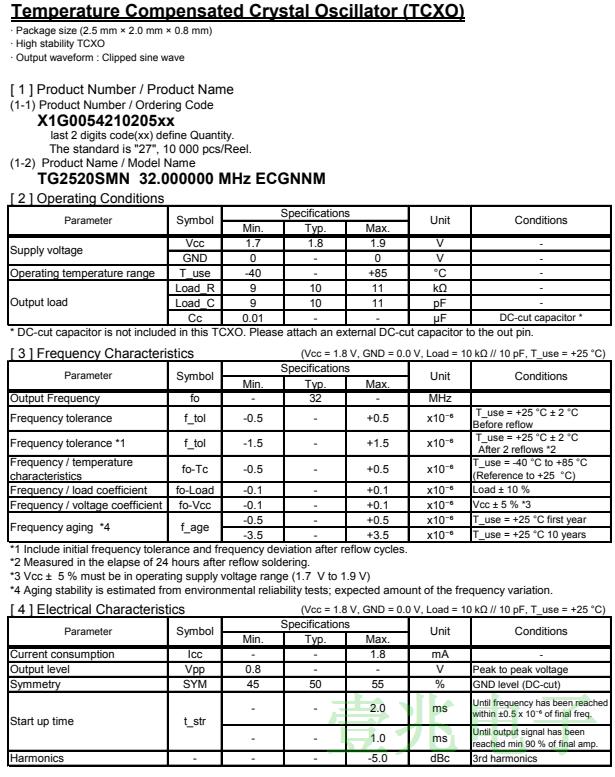

TCXO愛普生溫補晶振X1G005421020500,三星手機蘋果手機小米手機晶振
愛普生晶振編碼 | 型號 | 頻率 | 長x寬x高 | 輸出波 | 電源電壓 | 頻率偏差 | TCXO | 工作溫度 |
X1G005421002900 | TG2520SMN | 19.200000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 3.135 to 3.465 V | +/-2.0 ppm | TCXO | 40 to +85 °C |
X1G005421003000 | TG2520SMN | 12.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 3.135 to 3.465 V | +/-2.0 ppm | TCXO | 30 to +85 °C |
X1G005421003700 | TG2520SMN | 16.384000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 1.700 to 1.900 V | +/-1.5 ppm | TCXO | 40 to +85 °C |
X1G005421003800 | TG2520SMN | 16.384000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 2.260 to 3.465 V | +/-1.5 ppm | TCXO | 40 to +85 °C |
X1G005421020100 | TG2520SMN | 16.368000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 1.700 to 1.900 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421020200 | TG2520SMN | 16.369000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 1.700 to 1.900 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421020300 | TG2520SMN | 19.200000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 1.700 to 1.900 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421020400 | TG2520SMN | 26.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 1.700 to 1.900 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421020500 | TG2520SMN | 32.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 1.700 to 1.900 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421020600 | TG2520SMN | 38.400000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 1.700 to 1.900 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421020700 | TG2520SMN | 40.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 1.700 to 1.900 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421020800 | TG2520SMN | 16.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 1.700 to 1.900 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421021100 | TG2520SMN | 20.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 1.700 to 1.900 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421021200 | TG2520SMN | 24.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 1.700 to 1.900 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421021300 | TG2520SMN | 25.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 1.700 to 1.900 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421021400 | TG2520SMN | 27.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 1.700 to 1.900 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421021500 | TG2520SMN | 30.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 1.700 to 1.900 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421021600 | TG2520SMN | 48.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 1.700 to 1.900 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421022000 | TG2520SMN | 52.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 1.700 to 1.900 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421022100 | TG2520SMN | 27.600000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 1.700 to 1.900 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421022200 | TG2520SMN | 50.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 1.700 to 1.900 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421030100 | TG2520SMN | 16.368000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 2.660 to 3.465 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421030200 | TG2520SMN | 16.369000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 2.660 to 3.465 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421030300 | TG2520SMN | 19.200000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 2.660 to 3.465 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421030400 | TG2520SMN | 26.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 2.660 to 3.465 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421030500 | TG2520SMN | 32.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 2.660 to 3.465 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421030600 | TG2520SMN | 38.400000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 2.660 to 3.465 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421030700 | TG2520SMN | 40.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 2.660 to 3.465 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421030800 | TG2520SMN | 16.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 2.660 to 3.465 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421031100 | TG2520SMN | 20.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 2.660 to 3.465 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421031200 | TG2520SMN | 24.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 2.660 to 3.465 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421031300 | TG2520SMN | 25.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 2.660 to 3.465 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421031400 | TG2520SMN | 27.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 2.660 to 3.465 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421031500 | TG2520SMN | 30.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 2.660 to 3.465 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421031600 | TG2520SMN | 48.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 2.660 to 3.465 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421032000 | TG2520SMN | 52.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 2.660 to 3.465 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421032100 | TG2520SMN | 27.600000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 2.660 to 3.465 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421032200 | TG2520SMN | 50.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 2.660 to 3.465 V | +/-1.5 ppm | TCXO | -40 to +85 °C |
X1G005421032400 | TG2520SMN | 10.000000 MHz | 2.50 x 2.00 x 0.80 mm | Clipped sine wave | 2.260 to 3.465 V | +/-1.5 ppm | TCXO | 40 to +85 °C |
X1G005161000200 | TG2520CEN | 25.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 2.375 to 3.630 V | +/-2.0 ppm | TCXO | -40 to ++85 °C |
X1G005161000700 | TG2520CEN | 32.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 2.500 to 3.300 V | +/-2.0 ppm | TCXO | -40 to ++85 °C |
X1G005161000900 | TG2520CEN | 27.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 2.375 to 3.630 V | +/-2.0 ppm | TCXO | -40 to ++85 °C |
X1G005161001100 | TG2520CEN | 16.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 2.500 to 3.300 V | +/-2.0 ppm | TCXO | -40 to ++85 °C |
X1G005161001200 | TG2520CEN | 25.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 2.375 to 3.630 V | +/-2.0 ppm | TCXO | -40 to ++85 °C |
X1G005161001300 | TG2520CEN | 48.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 3.000 to 3.600 V | +/-2.0 ppm | TCXO | -40 to ++85 °C |
X1G005161001400 | TG2520CEN | 20.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 2.375 to 3.630 V | +/-2.0 ppm | TCXO | -40 to ++85 °C |
X1G005161001500 | TG2520CEN | 26.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 2.375 to 3.630 V | +/-2.0 ppm | TCXO | -40 to ++85 °C |
X1G005161001900 | TG2520CEN | 38.400000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 2.375 to 3.630 V | +/-2.0 ppm | TCXO | -40 to ++85 °C |
X1G005161002200 | TG2520CEN | 12.288000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 2.375 to 3.630 V | +/-2.0 ppm | TCXO | -40 to ++85 °C |
X1G005161002300 | TG2520CEN | 12.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 2.375 to 3.630 V | +/-2.0 ppm | TCXO | -40 to ++85 °C |
X1G005161002500 | TG2520CEN | 40.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 2.375 to 3.630 V | +/-2.0 ppm | TCXO | -40 to ++85 °C |
X1G005161002600 | TG2520CEN | 24.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 2.375 to 3.630 V | +/-2.0 ppm | TCXO | -40 to ++85 °C |
X1G005161002800 | TG2520CEN | 19.200000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 2.375 to 3.630 V | +/-2.0 ppm | TCXO | -40 to ++85 °C |
這一事實證明三星停止供貨舉措對市場份額的沖擊力是顯著的,而這可能也是三星急于回歸俄羅斯市場的原因.值得注意的是,前不久俄羅斯貿易和工業部長丹尼斯·曼圖羅夫曾表示,俄羅斯不排除會進口最新的iPhone14系列.如果蘋果能重返俄羅斯,估計三星也不會遠了.
TCXO愛普生溫補晶振X1G005421020500,三星手機蘋果手機小米手機晶振
