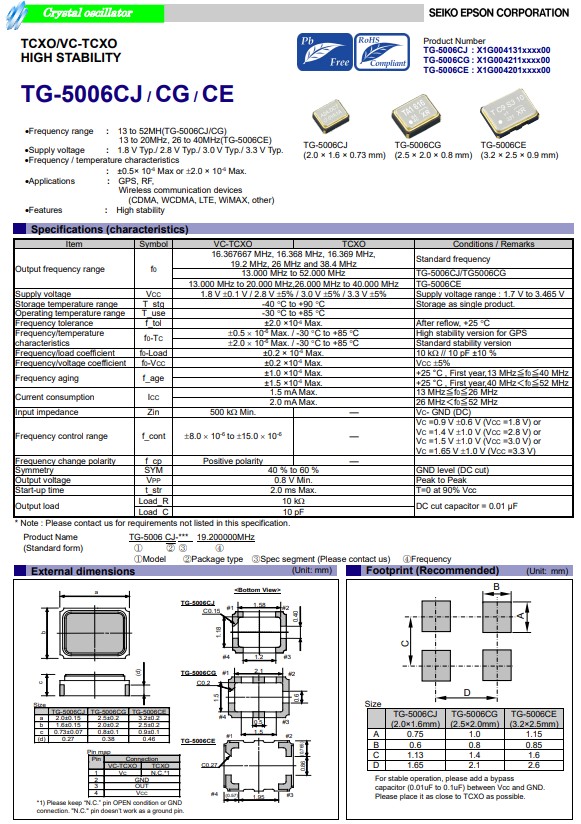

EPSON愛普生晶振公司推出的型號TG-5006CG溫補晶振TCXO系列，是一款小體積尺寸2.5x2.0mm四腳貼片晶振，具有超小型封裝可為客戶節省設計空間，有源晶振，電源電壓1.8V至3.3V，頻率范圍13MHz至52MHz，該產品具有超小型，輕薄型，低抖動，低功耗，低損耗，低耗能，低電源電壓，低相位噪聲等特點。愛普生晶振每一款都有它自己的身份編碼，其中編碼X1G004211000300晶振具有高精度，頻率為26.000MHz帶有溫度補償功能，在-30℃~+85℃的工作溫度范圍內精度為±0.5ppm，極高的溫度穩定性，高穩定性的優勢，運用于GPS定位器，工業控制，消費電子，智能安防，物聯網，車載電子，射頻和無線通信設備(CDMA，WCDMA，LTE，WiMAX)等。

GPS定位器專用晶振X1G004211000300,2520mm有源晶振

石英晶振	型號	頻率	尺寸	輸出波	電源電壓	精度	工作溫度
X1G004211000100	TG-5006CG	26.000000MHz	2.50x2.00x0.80mm	Clipped sine wave	2.660 to 2.940 V	+/-2.0 ppm	-30 to +85 °C
X1G004211000200	TG-5006CG	26.000000MHz	2.50x2.00x0.80mm	Clipped sine wave	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C
X1G004211000300	TG-5006CG	26.000000MHz	2.50x2.00x0.80mm	Clipped sine wave	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C
X1G004211000400	TG-5006CG	16.368000MHz	2.50x2.00x0.80mm	Clipped sine wave	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C
X1G004211000500	TG-5006CG	26.000000MHz	2.50x2.00x0.80mm	Clipped sine wave	1.700 to 1.900 V	+/-2.0 ppm	-30 to +85 °C
X1G004211000600	TG-5006CG	16.367667MHz	2.50x2.00x0.80mm	Clipped sine wave	2.850 to 3.150 V	+/-1.0 ppm	-30 to +85 °C
X1G004211000800	TG-5006CG	16.369000MHz	2.50x2.00x0.80mm	Clipped sine wave	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C
X1G004211001100	TG-5006CG	38.400000MHz	2.50x2.00x0.80mm	Clipped sine wave	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C
X1G004211001500	TG-5006CG	16.369000MHz	2.50x2.00x0.80mm	Clipped sine wave	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C
X1G004211001600	TG-5006CG	19.200000MHz	2.50x2.00x0.80mm	Clipped sine wave	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C
X1G004211002700	TG-5006CG	30.000000MHz	2.50x2.00x0.80mm	Clipped sine wave	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C
X1G004211003100	TG-5006CG	24.000000MHz	2.50x2.00x0.80mm	Clipped sine wave	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C
X1G004211003300	TG-5006CG	49.999800MHz	2.50x2.00x0.80mm	Clipped sine wave	1.700 to 3.465 V	+/-2.0 ppm	-30 to +85 °C
X1G004211003400	TG-5006CG	26.000000MHz	2.50x2.00x0.80mm	Clipped sine wave	2.520 to 3.080 V	+/-2.0 ppm	-40 to +85 °C
X1G004211003700	TG-5006CG	24.000000MHz	2.50x2.00x0.80mm	Clipped sine wave	1.700 to 3.465 V	+/-1.5 ppm	-30 to +85 °C

GPS定位器專用晶振X1G004211000300,2520mm有源晶振

TG-5006CG有源晶振頻率范圍13MHz至52MHz之間，多種頻率輸出為用戶的設計提供了更加靈活的選擇，可以在各種對頻率具有高要求的應用中具有出色的表現。還具有快速啟動時間，其振蕩啟動時間最大僅為2.0ms，具有以下優勢頻率隨溫度變化穩定度可達±0.5ppm，在經過回流焊后的偏差小于±2.0ppm，符合RoHS標準要求。
