超小型FA-118T貼片晶振X1E000251012100用于移動通信專用晶振
日本EPSON擁有先進的生產設備,追求“省、小、精”的獨特技術,研發制造符合業界需求的石英晶振,貼片晶振,有源晶體振蕩器等產品.愛普生所生產的石英貼片晶振產品,

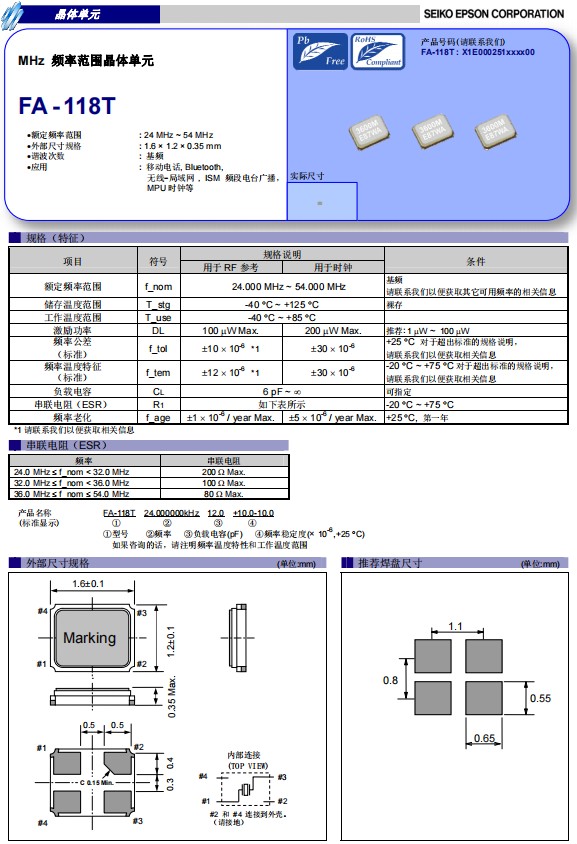

超小型1612貼片晶振FA-118T是目前愛普生石英晶體諧振器MHz級別外部尺寸最小的一款無源晶振，因此晶振本體上沒有印字，而是空白的，頻率范圍:24MHz至54MHz，四腳貼片晶振，工作溫度范圍-40℃至+85℃，FA-118T貼片石英晶體，體積小，焊接可采用自動貼片系統，產品本身小型，表面貼片晶振，特別適用于有小型化要求的電子數碼產品市場領域。因產品小型，薄型優勢，耐環境特性，包括耐高溫，耐沖擊性等，在移動通信領域得到了廣泛的應用，晶振產品本身可發揮優良的電氣特性，滿足無鉛焊接的高溫回流溫度曲線要求。
超小型FA-118T貼片晶振X1E000251012100用于移動通信專用晶振
| 產品編碼 | 貼片晶振 |
 型號
|
 頻率
|
 負載電容
|
 頻率
|
  頻率公差
|
 工作溫度
|
| X1E000251000900 | 1.6x1.2x0.35mm | FA-118T | 27.120000MHz | 10pF | +/-30ppm | +/-50ppm | -20to+75°C |
| X1E000251001100 | 1.6x1.2x0.35mm | FA-118T | 26.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251001400 | 1.6x1.2x0.35mm | FA-118T | 26.000000MHz | 9pF | +/-10ppm | +/-12ppm | -20to+75°C |
| X1E000251001600 | 1.6x1.2x0.35mm | FA-118T | 37.400000MHz | 16pF | +/-10ppm | +/-10ppm | -20to+85°C |
| X1E000251003100 | 1.6x1.2x0.35mm | FA-118T | 37.400000MHz | 16pF | +/-7ppm | +/-10ppm | -30to+85°C |
| X1E000251003200 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251003300 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251003400 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 9pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251003500 | 1.6x1.2x0.35mm | FA-118T | 30.000000MHz | 8pF | +/-20ppm | +/-20ppm | -20to+75°C |
| X1E000251004600 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251005000 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 9pF | +/-10ppm | +/-12ppm | -20to+75°C |
| X1E000251005600 | 1.6x1.2x0.35mm | FA-118T | 52.000000MHz | 9pF | +/-15ppm | +/-12ppm | -20to+75°C |
| X1E000251005700 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 7pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251005900 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251006000 | 1.6x1.2x0.35mm | FA-118T | 48.000000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251006400 | 1.6x1.2x0.35mm | FA-118T | 26.000000MHz | 12pF | +/-10ppm | +/-12ppm | -20to+75°C |
| X1E000251006500 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 10pF | +/-10ppm | +/-12ppm | -20to+75°C |
| X1E000251006800 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 8pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251006900 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251007100 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 12pF | +/-8ppm | +/-10ppm | -30to+85°C |
| X1E000251007500 | 1.6x1.2x0.35mm | FA-118T | 26.000000MHz | 8pF | +/-10ppm | +/-10ppm | -30to+85°C |
| X1E000251007700 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251007800 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 7pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251007900 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251008000 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 6pF | +/-10ppm | +/-12ppm | -20to+75°C |
| X1E000251008600 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 8pF | +/-20ppm | +/-20ppm | -20to+75°C |
| X1E000251009900 | 1.6x1.2x0.35mm | FA-118T | 48.000000MHz | 6pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251010200 | 1.6x1.2x0.35mm | FA-118T | 50.000000MHz | 8pF | +/-30ppm | +/-30ppm | -40to+85°C |
| X1E000251010400 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 10pF | +/-20ppm | +/-30ppm | -40to+85°C |
| X1E000251011100 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+75°C |
| X1E000251011300 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 8pF | +/-10ppm | +/-15ppm | -30to+85°C |
| X1E000251012100 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+85°C |
| X1E000251012600 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 7pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251013400 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 8pF | +/-10ppm | +/-12ppm | -20to+85°C |
| X1E000251013800 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 6pF | +/-10ppm | +/-15ppm | -20to+70°C |
| X1E000251014100 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 8pF | +/-20ppm | +/-20ppm | -40to+85°C |
| X1E000251014400 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 20pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251015000 | 1.6x1.2x0.35mm | FA-118T | 38.400000MHz | 20pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251015200 | 1.6x1.2x0.35mm | FA-118T | 48.000000MHz | 8pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000251015300 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 8pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000251015500 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 9pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251015800 | 1.6x1.2x0.35mm | FA-118T | 50.000000MHz | 12pF | +/-10ppm | +/-15ppm | -40to+85°C |
| X1E000251016100 | 1.6x1.2x0.35mm | FA-118T | 37.400000MHz | 8pF | +/-10ppm | +/-10ppm | -30to+85°C |
| X1E000251016600 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 10pF | +/-10ppm | +/-10ppm | -30to+85°C |
| X1E000251019000 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 12pF | +/-10ppm | +/-10ppm | -30to+85°C |
| X1E000251019700 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 6pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251020100 | 1.6x1.2x0.35mm | FA-118T | 38.400000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+85°C |
| X1E000251021200 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 6pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000251021500 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 6pF | +/-20ppm | +/-20ppm | -40to+85°C |
| X1E000251021900 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 10pF | +/-10ppm | +/-20ppm | -40to+85°C |
超小型FA-118T貼片晶振X1E000251012100用于移動通信專用晶振
隨著高科技產品的隨身攜帶且使用方便讓電路板中的各路元器件都使出渾身解數，力求越來越小的同時還要越來越精密，因此小型化的貼片尺寸成了很多廠家的需要考慮條件。而愛普生晶振推出的這款1612無源晶振FA-118T，它是一款長1.6mmm*寬*1.2mm*高0.35mm的當今很受歡迎的小尺寸晶振，隨著民生用市場中可無線通信產品的發展和迅速普及，搭載近距離無線通信Bluetooth功能的產品逐漸增加。
