XR20系列超小型晶振,XR20L3H26.0000A2F,2016mm晶振,石英晶體諧振器,ECERA石英晶體
我們提供全面的石英晶體諧振器產品組合。我們廣泛的行業標準封裝選擇包括陶瓷表面貼裝、HC-49/U、金屬表面貼裝、管狀和塑料模制。這些晶體在電子應用中充當主要組件
亞陶晶振XR20系列接縫密封裝置包括 封裝在標準的2.0x1.6mm毫米陶瓷中包裹,超小型晶振,這些設備是地面的理想選擇,安裝在人口密集或小尺寸PCB應用中。為高可靠性而設計和制造,XR20系列符合超聲波的要求 焊接制造過程以及 行業標準跌落測試。該系列非常適合為高性能的應用提供精確的定時 可靠性是必須的。該系列支持操作溫度范圍為-40℃至+125℃。
XR20系列超小型晶振,XR20L3H26.0000A2F,2016mm晶振,石英晶體諧振器,ECERA石英晶體
XR20系列超小型晶振,XR20L3H26.0000A2F,2016mm晶振,石英晶體諧振器,ECERA石英晶體
NX72G1102Z
Diodes Incorporated
SaRonix-eCera™ NX
161.132812MHz
±50ppm
-20°C ~ 70°C
NX72G1102Z
Diodes Incorporated
SaRonix-eCera™ NX
161.132812MHz
±50ppm
-20°C ~ 70°C
NX72G1102Z
Diodes Incorporated
SaRonix-eCera™ NX
161.132812MHz
±50ppm
-20°C ~ 70°C
NX7032C0200.000000
Diodes Incorporated
SaRonix-eCera™ NX
200MHz
±50ppm
-20°C ~ 70°C
NX7032C0200.000000
Diodes Incorporated
SaRonix-eCera™ NX
200MHz
±50ppm
-20°C ~ 70°C
NX7032C0200.000000
Diodes Incorporated
SaRonix-eCera™ NX
200MHz
±50ppm
-20°C ~ 70°C
UX52F62008
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-20°C ~ 70°C
UX52F62008
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-20°C ~ 70°C
UX52F62008
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-20°C ~ 70°C
UX54F62001
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
UX54F62001
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
UX54F62001
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
NX72W2201Z
Diodes Incorporated
SaRonix-eCera™ NX
322.265625MHz
±50ppm
-20°C ~ 70°C
NX72W2201Z
Diodes Incorporated
SaRonix-eCera™ NX
322.265625MHz
±50ppm
-20°C ~ 70°C
NX72W2201Z
Diodes Incorporated
SaRonix-eCera™ NX
322.265625MHz
±50ppm
-20°C ~ 70°C
JX5021E0156.250000
Diodes Incorporated
SaRonix-eCera™ JX
156.25MHz
±50ppm
-40°C ~ 85°C
JX5021E0156.250000
Diodes Incorporated
SaRonix-eCera™ JX
156.25MHz
±50ppm
-40°C ~ 85°C
JX5021E0156.250000
Diodes Incorporated
SaRonix-eCera™ JX
156.25MHz
±50ppm
-40°C ~ 85°C
UX73F62003
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
UX73F62003
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
UX73F62003
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
UX52F6204Z
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
UX52F6204Z
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
UX52F6204Z
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
UX72F6214Z
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C

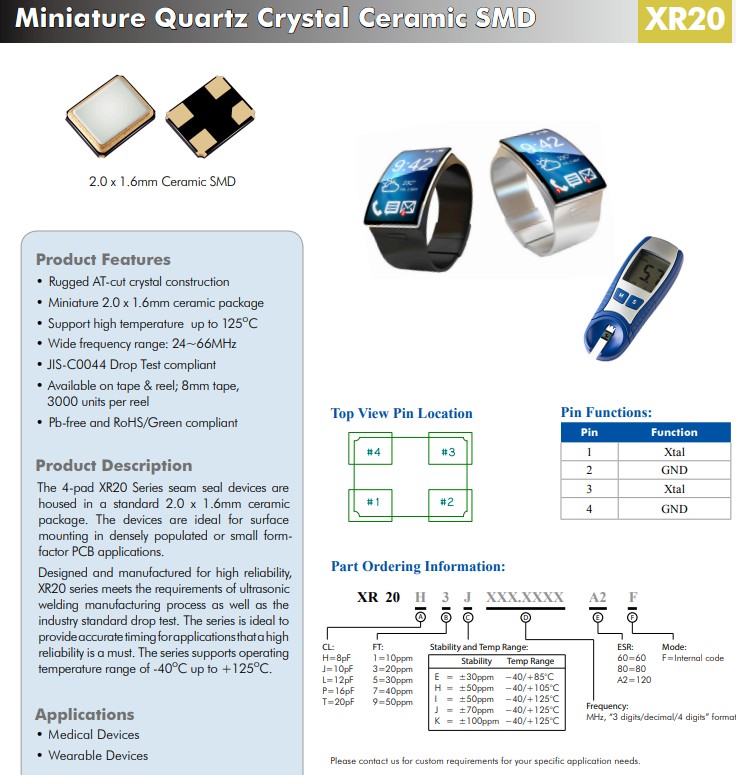

產品特性:
堅固的AT切割水晶結構
微型2.0x1.6mm毫米陶瓷封裝
支持高達125℃的高溫
寬頻率范圍:24~66MHz貼片晶振
符合JIS-C0044跌落測試
提供磁帶和卷軸;8毫米膠帶,
每卷3000件
無鉛且符合RoHS/Green標準
應用程序:醫療設備,可穿戴設備
UX72F6214Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
UX72F6214Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
UX31F6203Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±25ppm | -40°C ~ 85°C |
UX31F6203Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±25ppm | -40°C ~ 85°C |
UX31F6203Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±25ppm | -40°C ~ 85°C |
UX31F6201Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±25ppm | -40°C ~ 85°C |
UX31F6201Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±25ppm | -40°C ~ 85°C |
UX31F6201Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±25ppm | -40°C ~ 85°C |
UX52I0501Z | Diodes Incorporated | SaRonix-eCera™ UX | 180.55MHz | ±50ppm | -40°C ~ 85°C |
UX52I0501Z | Diodes Incorporated | SaRonix-eCera™ UX | 180.55MHz | ±50ppm | -40°C ~ 85°C |
UX52I0501Z | Diodes Incorporated | SaRonix-eCera™ UX | 180.55MHz | ±50ppm | -40°C ~ 85°C |
NX7021D0644.531250 | Diodes Incorporated | SaRonix-eCera™ NX | 644.53125MHz | ±25ppm | -40°C ~ 85°C |
NX7021D0644.531250 | Diodes Incorporated | SaRonix-eCera™ NX | 644.53125MHz | ±25ppm | -40°C ~ 85°C |
NX7021D0644.531250 | Diodes Incorporated | SaRonix-eCera™ NX | 644.53125MHz | ±25ppm | -40°C ~ 85°C |
KD3270037 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm | -40°C ~ 85°C |
KD3270037 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm | -40°C ~ 85°C |
KD3270037 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm | -40°C ~ 85°C |
KX2513G0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm | 0°C ~ 70°C |
KX3211A0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±20ppm | -20°C ~ 70°C |
KX3211A0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±20ppm | -20°C ~ 70°C |
KX3211A0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±20ppm | -20°C ~ 70°C |
YNETHE125 | Diodes Incorporated | SaRonix-eCera™ ASSP VCXO | 125MHz | ±50ppm | -40°C ~ 85°C |
YNETHE125 | Diodes Incorporated | SaRonix-eCera™ ASSP VCXO | 125MHz | ±50ppm | -40°C ~ 85°C |
YNETHE125 | Diodes Incorporated | SaRonix-eCera™ ASSP VCXO | 125MHz | ±50ppm | -40°C ~ 85°C |
KX3211D0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm | -40°C ~ 85°C |
XR20系列超小型晶振,XR20L3H26.0000A2F,2016mm晶振,石英晶體諧振器,ECERA石英晶體
頻率范圍:24.0000MHz至66.0000MHz無源晶振
25℃±3℃時的特性:頻率校準容差:10ppm至50ppm*
負載電容:7至32pF或串聯諧振
有效串聯電阻(ESR):
24.0000 MHz至29.9999 MHz:最大120ω
30.0000 MHz至59.9999 MHz:最大80ω
60.0000 MHz至66.0000 MHz:最大60ω
驅動電平:典型值10 W。(最大100瓦)
并聯電容:最大3pF
工作溫度:–40至+85℃或–40至+105℃或–40至+125℃
存儲溫度:–55至+125℃
溫度穩定性:30ppm至100ppm
在25℃下老化,第一年:最大3ppm
離心力:美國汽車工程師學會j 2657(1500克)
回流溫度:最高260℃,最長10秒
跌落測試:JIS-C0044
機械:
震驚:JESD22-B104
可焊性:J-STD-002
振動:JESD22-B103
耐焊接熱::J-STD-020(SMD)
環境:
總測試泄漏:JESD22-A109
精細泄漏測試:MIL STD 883 M1014
防潮性:JESD22-A101
絕緣電阻:最小500mω(100 VDC)
溫度循環:JESD22-A104
高溫暴露:JESD22-A103
高溫工作壽命:JESD22-A108
FRSTB1027 | Diodes Incorporated | SaRonix-eCera™ FR | 27MHz | ±25ppm | -20°C ~ 70°C |
FRTELE016 | Diodes Incorporated | SaRonix-eCera™ FR | 16.384MHz | ±25ppm | -20°C ~ 70°C |
FRETHE025 | Diodes Incorporated | SaRonix-eCera™ FR | 25MHz | ±25ppm | -20°C ~ 70°C |
KX2013B0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm | -20°C ~ 70°C |
KX2013D0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm | -40°C ~ 85°C |
KX2511A0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±20ppm | -20°C ~ 70°C |
KX2513D0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm | -40°C ~ 85°C |
KJ3270008 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm | -40°C ~ 85°C |
KJ3270008 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm | -40°C ~ 85°C |
KJ3270008 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm | -40°C ~ 85°C |
JX7011E0059.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 59MHz | ±50ppm | -40°C ~ 85°C |
JX7011E0059.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 59MHz | ±50ppm | -40°C ~ 85°C |
JX7011E0059.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 59MHz | ±50ppm | -40°C ~ 85°C |
KK3270046 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm | -40°C ~ 85°C |
KK3270046 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm | -40°C ~ 85°C |
KK3270046 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm | -40°C ~ 85°C |
KD3270031 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm | -40°C ~ 85°C |
KD3270031 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm | -40°C ~ 85°C |
KD3270031 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm | -40°C ~ 85°C |
KK3270045 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm | -40°C ~ 85°C |
KK3270045 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm | -40°C ~ 85°C |
KK3270045 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm | -40°C ~ 85°C |
KK3270049 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm | -40°C ~ 85°C |
KK3270049 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm | -40°C ~ 85°C |
KK3270049 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm | -40°C ~ 85°C |
Product Parameters
Compliance (Only Automotive supports PPAP) | Standard |
---|---|
ProductSeries | XR20 |
Family | Xtals/Crystals |
Legacy PN | None |
Freq Range (MHz) | 24 to 66 |
Package Type | Ceramic Seam |
Package Size (mm) | 2.0 x 1.6 x 0.45 |
Pads | 4 |
NotRecommended | 0 |
XR20系列超小型晶振,XR20L3H26.0000A2F,2016mm晶振,石英晶體諧振器,ECERA石英晶體
產品參數:
合規性(僅汽車支持PPAP)標準
產品系列 XR20
家庭 Xtals/SMD晶體
舊版 PN 沒有任何
頻率范圍 24MHz至66MHz
包裝類型 陶瓷縫
包裝尺寸2.0x1.6x0.45mm
墊 4腳
不建議 0
KK3270052
Diodes Incorporated
SaRonix-eCera™ KK
32.768kHz
±25ppm
-20°C ~ 70°C
KK3270052
Diodes Incorporated
SaRonix-eCera™ KK
32.768kHz
±25ppm
-20°C ~ 70°C
KK3270052
Diodes Incorporated
SaRonix-eCera™ KK
32.768kHz
±25ppm
-20°C ~ 70°C
JX7011B0044.736000
Diodes Incorporated
SaRonix-eCera™ JX
44.736MHz
±25ppm
-20°C ~ 70°C
JX7011B0044.736000
Diodes Incorporated
SaRonix-eCera™ JX
44.736MHz
±25ppm
-20°C ~ 70°C
JX7011B0044.736000
Diodes Incorporated
SaRonix-eCera™ JX
44.736MHz
±25ppm
-20°C ~ 70°C
KK3270051
Diodes Incorporated
SaRonix-eCera™ KK
32.768kHz
±25ppm
-40°C ~ 85°C
KK3270051
Diodes Incorporated
SaRonix-eCera™ KK
32.768kHz
±25ppm
-40°C ~ 85°C
KK3270051
Diodes Incorporated
SaRonix-eCera™ KK
32.768kHz
±25ppm
-40°C ~ 85°C
JX5011C0120.000000
Diodes Incorporated
SaRonix-eCera™ JX
120MHz
±50ppm
-20°C ~ 70°C
JX5011C0120.000000
Diodes Incorporated
SaRonix-eCera™ JX
120MHz
±50ppm
-20°C ~ 70°C
JX5011C0120.000000
Diodes Incorporated
SaRonix-eCera™ JX
120MHz
±50ppm
-20°C ~ 70°C
KX2132709Z
Diodes Incorporated
SaRonix-eCera™ KX
32.768kHz
±25ppm
-20°C ~ 70°C
KX2132709Z
Diodes Incorporated
SaRonix-eCera™ KX
32.768kHz
±25ppm
-20°C ~ 70°C
KX2132709Z
Diodes Incorporated
SaRonix-eCera™ KX
32.768kHz
±25ppm
-20°C ~ 70°C
JX7012D0025.001875
Diodes Incorporated
SaRonix-eCera™ JX
25.001875MHz
±25ppm
-40°C ~ 85°C
JX7012D0025.001875
Diodes Incorporated
SaRonix-eCera™ JX
25.001875MHz
±25ppm
-40°C ~ 85°C
JX7012D0025.001875
Diodes Incorporated
SaRonix-eCera™ JX
25.001875MHz
±25ppm
-40°C ~ 85°C
JX7011E0091.500000
Diodes Incorporated
SaRonix-eCera™ JX
91.5MHz
±50ppm
-40°C ~ 85°C
JX7011E0091.500000
Diodes Incorporated
SaRonix-eCera™ JX
91.5MHz
±50ppm
-40°C ~ 85°C
JX7011E0091.500000
Diodes Incorporated
SaRonix-eCera™ JX
91.5MHz
±50ppm
-40°C ~ 85°C
KJ3270004Z
Diodes Incorporated
SaRonix-eCera™ KJ
32.768kHz
±50ppm
-20°C ~ 70°C
KJ3270004Z
Diodes Incorporated
SaRonix-eCera™ KJ
32.768kHz
±50ppm
-20°C ~ 70°C
KJ3270004Z
Diodes Incorporated
SaRonix-eCera™ KJ
32.768kHz
±50ppm
-20°C ~ 70°C
PD10GE159
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
159.375MHz
±50ppm
-20°C ~ 70°C
XR20系列超小型晶振,XR20L3H26.0000A2F,2016mm晶振,石英晶體諧振器,ECERA石英晶體
XR20 標準 沒有任何 24至66 陶瓷縫 2.0x1.6x0.45 4 接縫密封SMD
XR25 標準 沒有任何 16至66 陶瓷縫 2.5x2.0x0.6 4 接縫密封SMD晶體諧振器
XR32 標準 沒有任何 12至66 陶瓷縫 3.2x2.5x0.65 4 接縫密封SMD
XRC 汽車 沒有任何 12至66、16至66、24至66 陶瓷縫 3.2x2.5x0.65,2.5x2.0x0.6,2.0x1.6x0.45,4 高可靠性水晶, 3.2x2.5, 2.5x2.0, 2.0x1.6mm
