XR32系列接縫密封SMD,XR32H1I026.000060Q,無源晶振,3225mm晶振,ECERA晶振
石英晶體諧振器是一種生活中隨處可見的電子器件，誕生于20世紀20年代初，因具有較高的品質因數及良好的頻率穩定性，被廣泛應用于航天、通信、軍事等工業領域。顧名思義，制造石英晶體諧振器的原材料就是石英，一種非常重要的壓電材料。其主要特征是其原子或分子有規律排列，反映在宏觀上是外形的對稱性，在電場的作用下，晶體內部產生應力而形變，從而產生機械振動，獲得特定的頻率。
百利通亞陶晶振4焊盤 XR32系列接縫密封裝置采用標準3.2x2.5mm陶瓷封裝。這些器件非常適合在人口密集或小型PCB應用中進行表面貼裝。XR32系列專為高可靠性而設計和制造，滿足超聲波焊接制造工藝以及行業標準跌落測試的要求。該系列非常適合為需要高可靠性的應用提供準確的時序。該系列支持-40℃至+125℃的工作溫度范圍。
XR32系列接縫密封SMD,XR32H1I026.000060Q,無源晶振,3225mm晶振,ECERA晶振
| HX3127001Q | Diodes Incorporated | SaRonix-eCera™ HX | 27MHz | ±25ppm | -40°C ~ 105°C |
| HX21480001 | Diodes Incorporated | SaRonix-eCera™ HX | 48MHz | ±50ppm | -40°C ~ 105°C |
| HX21480001 | Diodes Incorporated | SaRonix-eCera™ HX | 48MHz | ±50ppm | -40°C ~ 105°C |
| HX21480001 | Diodes Incorporated | SaRonix-eCera™ HX | 48MHz | ±50ppm | -40°C ~ 105°C |
| NX7031E0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm | -40°C ~ 85°C |
| NX7031E0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm | -40°C ~ 85°C |
| NX7031E0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm | -40°C ~ 85°C |
| HX2127001Q | Diodes Incorporated | SaRonix-eCera™ HX | 27MHz | ±25ppm | -40°C ~ 105°C |
| HX2127001Q | Diodes Incorporated | SaRonix-eCera™ HX | 27MHz | ±25ppm | -40°C ~ 105°C |
| HX2127001Q | Diodes Incorporated | SaRonix-eCera™ HX | 27MHz | ±25ppm | -40°C ~ 105°C |
| SHPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm | -40°C ~ 85°C |
| SHPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm | -40°C ~ 85°C |
| SHPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm | -40°C ~ 85°C |
| SQPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm | -40°C ~ 85°C |
| SQPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm | -40°C ~ 85°C |
| SQPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm | -40°C ~ 85°C |
| SN10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| SN10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| SN10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| SQA000001 | Diodes Incorporated | SaRonix-eCera™ SQ | 100MHz | ±50ppm | -40°C ~ 85°C |
| SQA000001 | Diodes Incorporated | SaRonix-eCera™ SQ | 100MHz | ±50ppm | -40°C ~ 85°C |
| SQA000001 | Diodes Incorporated | SaRonix-eCera™ SQ | 100MHz | ±50ppm | -40°C ~ 85°C |
| NX53D3301Z | Diodes Incorporated | SaRonix-eCera™ NX | 133.333333MHz | ±50ppm | -40°C ~ 85°C |
| NX53D3301Z | Diodes Incorporated | SaRonix-eCera™ NX | 133.333333MHz | ±50ppm | -40°C ~ 85°C |
| NX53D3301Z | Diodes Incorporated | SaRonix-eCera™ NX | 133.333333MHz | ±50ppm | -40°C ~ 85°C |
| JT2553P0016.369000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.369MHz | ±500ppb | -40°C ~ 85°C |
XR32系列接縫密封SMD,XR32H1I026.000060Q,無源晶振,3225mm晶振,ECERA晶振

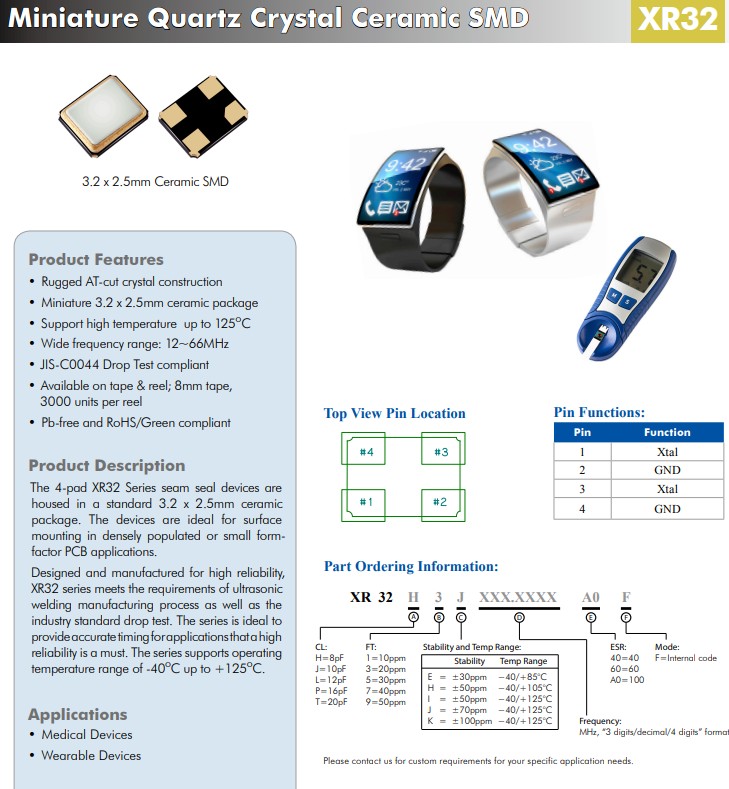

特征：
堅固的AT切割晶體結構
微型3.2x2.5mm陶瓷封裝
支持高達 125℃的高溫
寬頻率范圍：12~66MHz貼片晶振
符合JIS-C0044跌落測試
卷帶包裝；8毫米膠帶，每卷3000個單位
無鉛且符合RoHS/Green標準
應用程序：醫療設備，可穿戴設備
| JT2553P0016.369000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.369MHz | ±500ppb | -40°C ~ 85°C |
| JT2553P0016.369000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.369MHz | ±500ppb | -40°C ~ 85°C |
| JT15260001 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb | -30°C ~ 85°C |
| JT15260001 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb | -30°C ~ 85°C |
| JT15260001 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb | -30°C ~ 85°C |
| NX72F5506Z | Diodes Incorporated | SaRonix-eCera™ NX | 155.52MHz | ±50ppm | -20°C ~ 70°C |
| NX72F5506Z | Diodes Incorporated | SaRonix-eCera™ NX | 155.52MHz | ±50ppm | -20°C ~ 70°C |
| NX72F5506Z | Diodes Incorporated | SaRonix-eCera™ NX | 155.52MHz | ±50ppm | -20°C ~ 70°C |
| NX72F6208Z | Diodes Incorporated | SaRonix-eCera™ NX | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| NX72F6208Z | Diodes Incorporated | SaRonix-eCera™ NX | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| NX72F6208Z | Diodes Incorporated | SaRonix-eCera™ NX | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| HX51706001 | Diodes Incorporated | SaRonix-eCera™ HX | 70.656MHz | ±50ppm | -40°C ~ 105°C |
| HX51706001 | Diodes Incorporated | SaRonix-eCera™ HX | 70.656MHz | ±50ppm | -40°C ~ 105°C |
| HX51706001 | Diodes Incorporated | SaRonix-eCera™ HX | 70.656MHz | ±50ppm | -40°C ~ 105°C |
| HX7011C0020.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 20MHz | ±25ppm | -40°C ~ 105°C |
| HX7011C0020.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 20MHz | ±25ppm | -40°C ~ 105°C |
| HX7011C0020.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 20MHz | ±25ppm | -40°C ~ 105°C |
| PBF620074Z | Diodes Incorporated | SaRonix-eCera™ PB | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| PBF620074Z | Diodes Incorporated | SaRonix-eCera™ PB | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| PBF620074Z | Diodes Incorporated | SaRonix-eCera™ PB | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| NX3241E0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±50ppm | -40°C ~ 85°C |
| NX3241E0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±50ppm | -40°C ~ 85°C |
| NX3241E0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±50ppm | -40°C ~ 85°C |
| PXC500007 | Diodes Incorporated | SaRonix-eCera™ PX | 125MHz | ±50ppm | -20°C ~ 70°C |
| PXC500007 | Diodes Incorporated | SaRonix-eCera™ PX | 125MHz | ±50ppm | -20°C ~ 70°C |
Product Parameters
| Compliance (Only Automotive supports PPAP) | Standard |
|---|---|
| ProductSeries | XR32 |
| Family | Xtals/Crystals |
| Legacy PN | None |
| Freq Range (MHz) | 12 to 66 |
| Package Type | Ceramic Seam |
| Package Size (mm) | 3.2 x 2.5 x 0.65 |
| Pads | 4 |
| NotRecommended | 0 |
XR32系列接縫密封SMD,XR32H1I026.000060Q,無源晶振,3225mm晶振,ECERA晶振
產品參數：
合規性（僅汽車支持PPAP）標準產品系列 XR32
家庭 Xtals/石英晶體晶振
舊版 PN 沒有任何
頻率范圍 12MHz至66MHz
包裝類型 陶瓷縫
包裝尺寸 3.2x2.5x0.65mm
墊 4腳
不建議 0
| PXC500007 | Diodes Incorporated | SaRonix-eCera™ PX | 125MHz | ±50ppm | -20°C ~ 70°C |
| NX73K0004Z | Diodes Incorporated | SaRonix-eCera™ NX | 200MHz | ±50ppm | -40°C ~ 85°C |
| NX73K0004Z | Diodes Incorporated | SaRonix-eCera™ NX | 200MHz | ±50ppm | -40°C ~ 85°C |
| NX73K0004Z | Diodes Incorporated | SaRonix-eCera™ NX | 200MHz | ±50ppm | -40°C ~ 85°C |
| NX7021E0150.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 150MHz | ±50ppm | -40°C ~ 85°C |
| NX7021E0150.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 150MHz | ±50ppm | -40°C ~ 85°C |
| NX7021E0150.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 150MHz | ±50ppm | -40°C ~ 85°C |
| NX5041D0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±25ppm | -40°C ~ 85°C |
| NX5041D0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±25ppm | -40°C ~ 85°C |
| NX5041D0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±25ppm | -40°C ~ 85°C |
| NX7021D0148.500000 | Diodes Incorporated | SaRonix-eCera™ NX | 148.5MHz | ±25ppm | -40°C ~ 85°C |
| NX7021D0148.500000 | Diodes Incorporated | SaRonix-eCera™ NX | 148.5MHz | ±25ppm | -40°C ~ 85°C |
| NX7021D0148.500000 | Diodes Incorporated | SaRonix-eCera™ NX | 148.5MHz | ±25ppm | -40°C ~ 85°C |
| NX3221E0150.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 150MHz | ±50ppm | -40°C ~ 85°C |
| NX3221E0150.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 150MHz | ±50ppm | -40°C ~ 85°C |
| NX3221E0150.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 150MHz | ±50ppm | -40°C ~ 85°C |
| SNSAS2150 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 150MHz | ±50ppm | -20°C ~ 70°C |
| SNSAS2150 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 150MHz | ±50ppm | -20°C ~ 70°C |
| SNSAS2150 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 150MHz | ±50ppm | -20°C ~ 70°C |
| PD10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| PD10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| PD10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| PDF620008Z | Diodes Incorporated | SaRonix-eCera™ PD | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| PDF620008Z | Diodes Incorporated | SaRonix-eCera™ PD | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| PDF620008Z | Diodes Incorporated | SaRonix-eCera™ PD | 156.25MHz | ±50ppm | -40°C ~ 85°C |
XR32系列接縫密封SMD,XR32H1I026.000060Q,無源晶振,3225mm晶振,ECERA晶振
頻率范圍:12MHz至66.0000MHz超小型晶振
25℃±3℃時的特性:頻率校準容差:10ppm至50ppm
負載電容:7至32pF或串聯諧振
有效串聯電阻(ESR):
12.0000 MHz至19.9999 MHz:最大100ω
20.0000 MHz至31.9999 MHz:最大60ω
32.0000 MHz至66.0000 MHz:最大40ω
驅動電平:典型值10 W。(最大100瓦)
并聯電容:最大3pF
工作溫度:–40至+85℃或–40至+105℃或–40至+125℃
存儲溫度:–55至+125℃
溫度穩定性:30ppm至100ppm
在25℃下老化，第一年:最大3ppm
離心力:美國汽車工程師學會j 2657(1500克)
回流溫度:最高260℃，最長10秒
跌落測試:JIS-C0044
機械:
震驚:JESD22-B104
可焊性:J-STD-002
振動:JESD22-B103
耐焊接熱::J-STD-020 (SMD)
環境:
總測試泄漏:JESD22-A109
精細泄漏測試:MIL STD 883 M1014
防潮性:JESD22-A101
絕緣電阻:最小500mω(100 VDC)
溫度循環:JESD22-A104
高溫暴露:JESD22-A103
高溫工作壽命:JESD22-A108
