lora模塊低抖動溫補晶振TG2520SMN編碼X1G005421020827
晶振,電子產品都得依賴的一款電子器件,它是通常應用到一些高端電子產品當中。削波正弦波形是TCXO最受歡迎的輸出選項,這是為什么呢,主要原因有兩點.其一是低功耗,改善了熱特性以及更好的老化和頻率穩定性能;其二則是比CMOS輸出更好的相位噪聲性能.也就是說石英晶振在采用削波正玄波作為輸出方式之后會極大的減少諧波分量的數量,使得晶振產品具備低相位噪聲的性能.

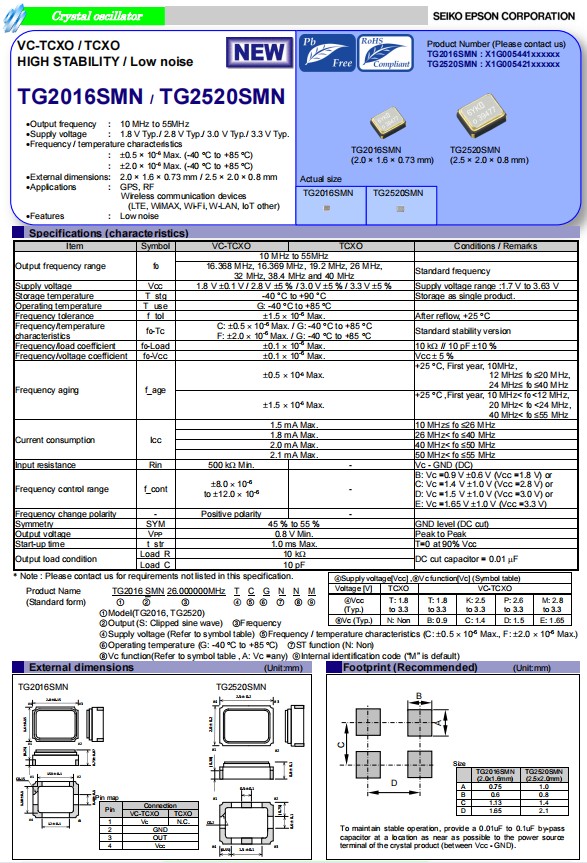

愛普生晶振TG2520SMN是一款小體積尺寸2.5x2.0mm溫度補償晶振，有源晶振，低電源電壓1.8V至3.3V，頻率范圍10MHz至55MHz，具有超小型，輕薄型，低電源電壓，低抖動，低功耗，低損耗，低耗能，低電平，低相位噪聲等特點，應用于鐘表、數碼產品、車載數碼、手機、對講機、數碼相機、平板電腦等通訊設備及各種頻率控制設備等。
lora模塊低抖動溫補晶振TG2520SMN編碼X1G005421020827
| 產品編碼 |
 型號
|
 頻率
|
有源晶振 |
 輸出波
|
 電源電壓
|
 精度
|
 工作溫度
|
| X1G005421002927 | TG2520SMN | 19.200000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 3.135 to 3.465V | +/-2.0ppm | 40 to +85°C |
| X1G005421003027 | TG2520SMN | 12.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 3.135 to 3.465V | +/-2.0ppm | 30 to +85°C |
| X1G005421003727 | TG2520SMN | 16.384000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | 40 to +85°C |
| X1G005421003827 | TG2520SMN | 16.384000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 2.260 to 3.465V | +/-1.5ppm | 40 to +85°C |
| X1G005421020127 | TG2520SMN | 16.368000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
| X1G005421020227 | TG2520SMN | 16.369000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
| X1G005421020327 | TG2520SMN | 19.200000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
| X1G005421020427 | TG2520SMN | 26.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
| X1G005421020527 | TG2520SMN | 32.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
| X1G005421020627 | TG2520SMN | 38.400000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
| X1G005421020727 | TG2520SMN | 40.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
| X1G005421020827 | TG2520SMN | 16.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
| X1G005421021127 | TG2520SMN | 20.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
| X1G005421021227 | TG2520SMN | 24.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
| X1G005421021327 | TG2520SMN | 25.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
| X1G005421021427 | TG2520SMN | 27.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
| X1G005421021527 | TG2520SMN | 30.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
| X1G005421021627 | TG2520SMN | 48.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
| X1G005421022027 | TG2520SMN | 52.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
| X1G005421022127 | TG2520SMN | 27.600000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
| X1G005421022227 | TG2520SMN | 50.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 1.700 to 1.900V | +/-1.5ppm | -40 to +85°C |
| X1G005421030127 | TG2520SMN | 16.368000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
| X1G005421030227 | TG2520SMN | 16.369000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
| X1G005421030327 | TG2520SMN | 19.200000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
| X1G005421030427 | TG2520SMN | 26.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
| X1G005421030527 | TG2520SMN | 32.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
| X1G005421030627 | TG2520SMN | 38.400000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
| X1G005421030727 | TG2520SMN | 40.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
| X1G005421030827 | TG2520SMN | 16.000000MHz | 2.50x2.00x0.80mm | TCXO晶振 | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
| X1G005421031127 | TG2520SMN | 20.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
| X1G005421031227 | TG2520SMN | 24.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
| X1G005421031327 | TG2520SMN | 25.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
| X1G005421031427 | TG2520SMN | 27.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
| X1G005421031527 | TG2520SMN | 30.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
| X1G005421031627 | TG2520SMN | 48.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
| X1G005421032027 | TG2520SMN | 52.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
| X1G005421032127 | TG2520SMN | 27.600000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
| X1G005421032227 | TG2520SMN | 50.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 2.660 to 3.465V | +/-1.5ppm | -40 to +85°C |
| X1G005421032427 | TG2520SMN | 10.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave | 2.260 to 3.465V | +/-1.5ppm | 40 to +85°C |
溫補晶振(TCXO)是一種自身帶有電源電壓以及溫度補償功能的石英晶體振蕩器,具有2016,2520,3225,5032,7050等多種封裝尺寸.此篇文章所要介紹到的就是2520溫補晶振,愛普生TG2520SMN溫補晶振,體積為2.5x2.0x0.8mm,重量超輕,尺寸超小,滿足市場對于小型化的需求.并且提供電源電壓1.8V-3.3V,低消耗電流.
TG2520SMN晶振選用無鉛無害,優異材料生產,符合歐盟ROHS環保指令.此款2520溫補晶振具有耐高溫-40℃to+85℃范圍,符合工業級產品要求.使用于GPS,RF,無線通信設備(LTE,WiMAX,Wi-Fi,W-LAN,IoT他)等產品中.具有低噪音,低相位,低抖動,耐高溫,抗振性強,低老化等特點.
