7050六腳差分晶體,CCLD-033-50-100.000,Crystek晶振
頻率:100 MHz

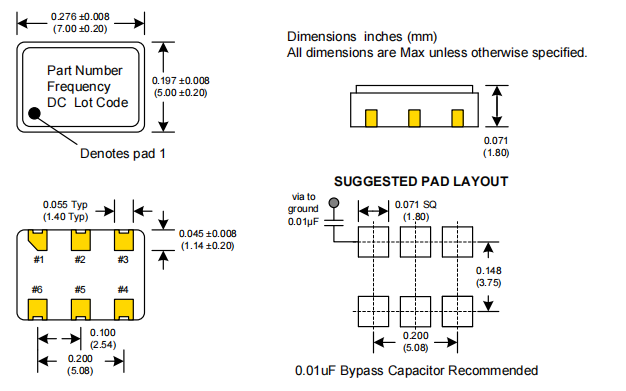

尺寸:7.0mm*5.0mm

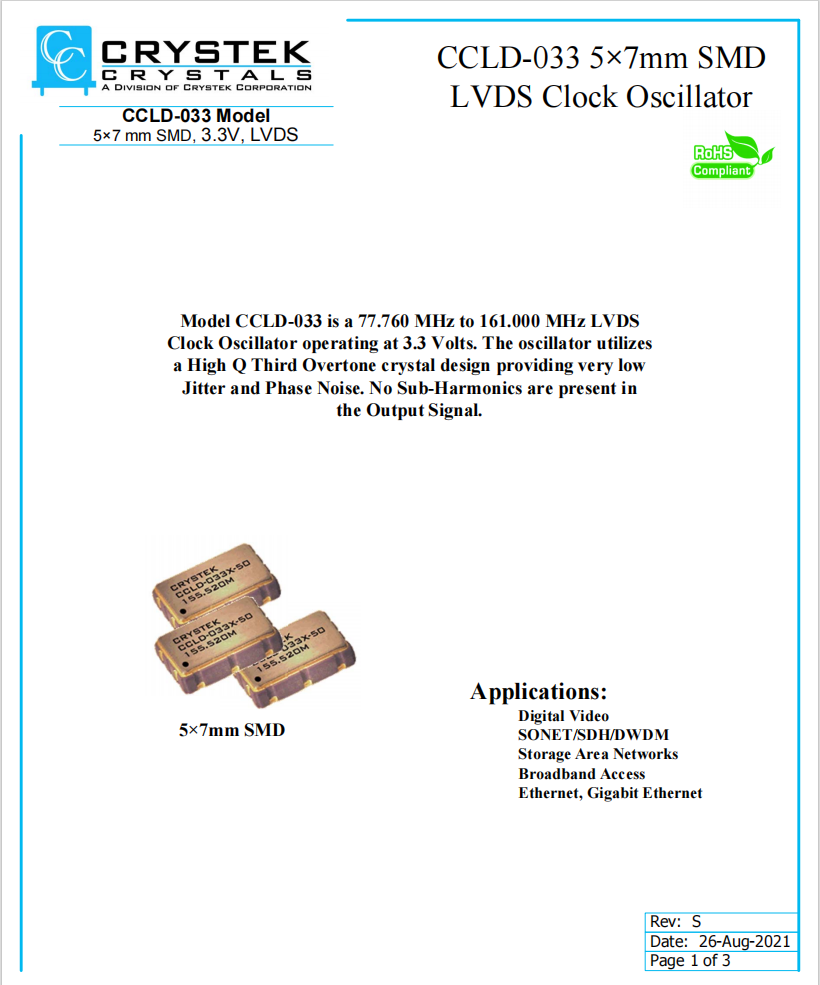

7050六腳差分晶體,CCLD-033-50-100.000,Crystek晶振,編碼:CCLD-033-50-100.000,型號:CCLD,工作溫度:0°C ~ 70°C,尺寸:7.0mm*5.0mm,頻率:100MHz,精度:±50ppm,電壓:3.3V,電流:66mA,輸出方式:LVDS,差分輸出振蕩器,有源晶振SPXO,時鐘晶體振蕩器,石英晶體振蕩器,有源7050貼片晶振,CCLD-033型號是一款77.760mhz至161.000mhz的LVDS,工作電壓為3.3伏的時鐘振蕩器,振蕩器利用了高Q第三泛音晶體設計提供非常低的抖動和相位噪聲,不存在次諧波輸出信號,產品廣泛應用于數字視頻,SONET/SDH/DWDM,存儲區域網絡,寬帶接入,以太網,千兆以太網。
7050六腳差分晶體,CCLD-033-50-100.000,Crystek晶振,參數表
編碼 |
CCLD-033-50-100.000 |
品牌 | Crystek |
型號 | CCLD |
頻率 | 100MHz |
精度 |
±50ppm |
電壓 |
3.3V |
電流 |
66mA |
輸出方式 |
LVDS |
工作溫度 |
0°C ~ 70°C |
尺寸 | 7.0mm*5.0mm |
Mfr Part # |
有源7050貼片晶振 |
Series | Type | Frequency | Output | Voltage - Supply |
CCLD-033-50-100.000 | Crystek Corporation | CCLD | XO (Standard) | 100 MHz | LVDS | 3.3V |
CCLD-033-50-125.000 | Crystek Corporation | CCLD | XO (Standard) | 125 MHz | LVDS | 3.3V |
CCLD-033-50-156.250 | Crystek Corporation | CCLD | XO (Standard) | 156.25 MHz | LVDS | 3.3V |
CCPD-034-50-200.000 | Crystek Corporation | CCPD-034 | XO (Standard) | 200 MHz | LVPECL | 3.3V |
CCPD-033-50-156.250 | Crystek Corporation | CCPD-033 | XO (Standard) | 156.25 MHz | LVPECL | 3.3V |
CCPD-033-50-161.1328 | Crystek Corporation | CCPD-033 | XO (Standard) | 161.1328 MHz | LVPECL | 3.3V |
CCPD-033-50-100.000 | Crystek Corporation | CCPD-033 | XO (Standard) | 100 MHz | LVPECL | 3.3V |
CCPD-033-50-106.250 | Crystek Corporation | CCPD-033 | XO (Standard) | 106.25 MHz | LVPECL | 3.3V |
CCPD-033-50-77.760 | Crystek Corporation | CCPD-033 | XO (Standard) | 77.76 MHz | LVPECL | 3.3V |
CCO-083-100.000 | Crystek Corporation | CCO | XO (Standard) | 100 MHz | Sine Wave | 3.3V |
CCPD-033X-50-77.760 | Crystek Corporation | CCPD-033 | XO (Standard) | 77.76 MHz | LVPECL | 3.3V |
CCPD-033X-25-77.76 | Crystek Corporation | CCPD-033 | XO (Standard) | 77.76 MHz | LVPECL | 3.3V |
CCPD-033X-50-100.00 | Crystek Corporation | CCPD-033 | XO (Standard) | 100 MHz | LVPECL | 3.3V |
CCPD-033X-25-100 | Crystek Corporation | CCPD-033 | XO (Standard) | 100 MHz | LVPECL | 3.3V |
CCPD-033X-50-106.250 | Crystek Corporation | CCPD-033 | XO (Standard) | 106.25 MHz | LVPECL | 3.3V |
CCPD-033X-50-125.000 | Crystek Corporation | CCPD-033 | XO (Standard) | 125 MHz | LVPECL | 3.3V |
CCLD-033-50-133.000 | Crystek Corporation | CCLD | XO (Standard) | 133 MHz | LVDS | 3.3V |
CCPD-033X-25-106.25 | Crystek Corporation | CCPD-033 | XO (Standard) | 106.25 MHz | LVPECL | 3.3V |
CCPD-033X-25-125 | Crystek Corporation | CCPD-033 | XO (Standard) | 125 MHz | LVPECL | 3.3V |
CCPD-033-50-155.520 | Crystek Corporation | CCPD-033 | XO (Standard) | 155.52 MHz | LVPECL | 3.3V |
CCPD-033M-50-156.250 | Crystek Corporation | CCPD-033 | XO (Standard) | 156.25 MHz | LVPECL | 3.3V |
CCPD-033X-50-155.520 | Crystek Corporation | CCPD-033 | XO (Standard) | 155.52 MHz | LVPECL | 3.3V |
CCPD-033X-50-156.250 | Crystek Corporation | CCPD-033 | XO (Standard) | 156.25 MHz | LVPECL | 3.3V |
CCPD-033X-25-155.520 | Crystek Corporation | CCPD-033 | XO (Standard) | 155.52 MHz | LVPECL | 3.3V |
CCPD-033X-25-156.25 | Crystek Corporation | CCPD-033 | XO (Standard) | 156.25 MHz | LVPECL | 3.3V |
CCPD-033-50-125.000 | Crystek Corporation | CCPD-033 | XO (Standard) | 125 MHz | LVPECL | 3.3V |
CCPD-033X-50-161.1328 | Crystek Corporation | CCPD-033 | XO (Standard) | 161.1328 MHz | LVPECL | 3.3V |
CCPD-033X-25-161.1328 | Crystek Corporation | CCPD-033 | XO (Standard) | 161.1328 MHz | LVPECL | 3.3V |
CCPD-034X-50-200.000 | Crystek Corporation | CCPD-034 | XO (Standard) | 200 MHz | LVPECL | 3.3V |
CCPD-034-50-250.000 | Crystek Corporation | CCPD-034 | XO (Standard) | 250 MHz | LVPECL | 3.3V |
CCPD-034M-50-245.760 | Crystek Corporation | CCPD-034 | XO (Standard) | 245.76 MHz | LVPECL | 3.3V |
