LFXTAL003000,貼片晶振32.768K,IQD晶振
頻率:32.768K

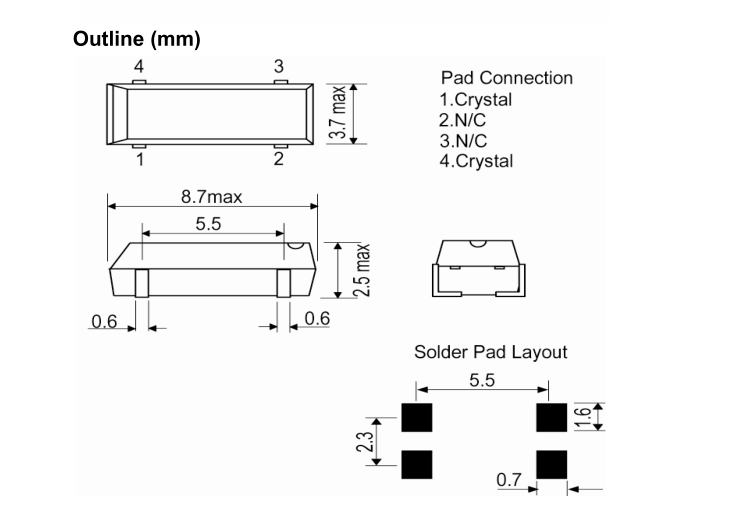

尺寸:8.7mm*3.8mm

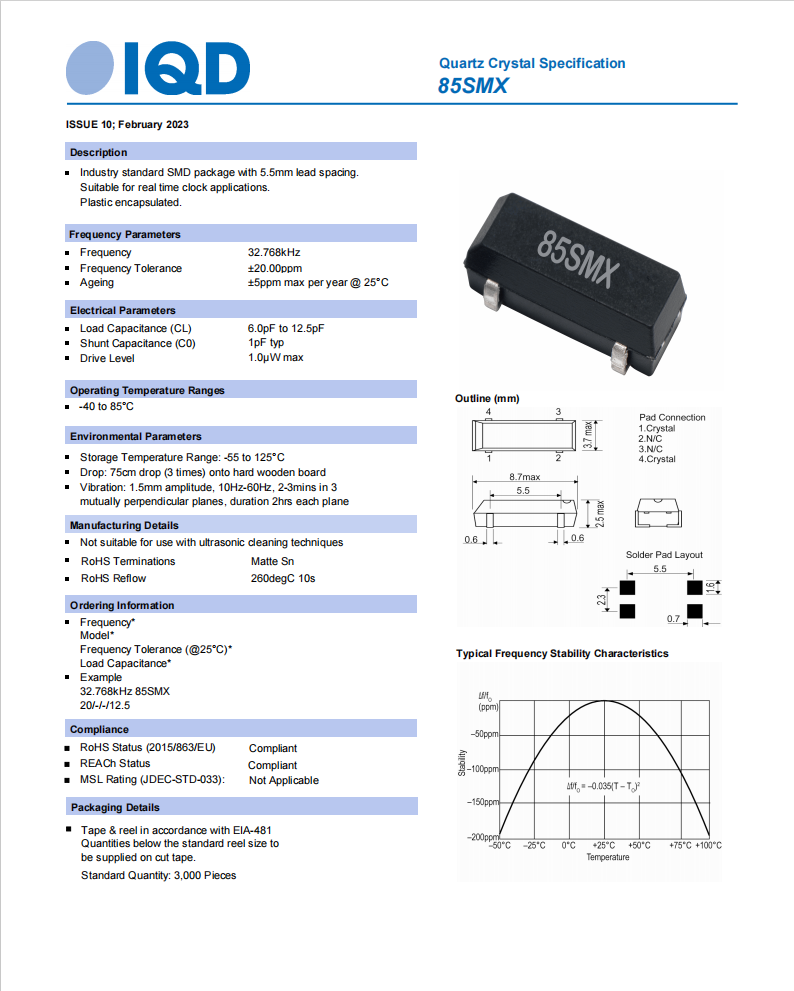

LFXTAL003000,貼片晶振32.768K,IQD晶振,編碼:LFXTAL003000,型號:85SMX,工作溫度:-40C ~ 85°C,尺寸:8.7mm*3.8mm,頻率:32.768 kHz,精度:±20ppm,負載電容:12.5pF,美國進口晶振,無源貼片晶振,貼片石英晶體,石英晶振,SMD晶體,貼片晶振32.768K,石英晶體諧振器,行業標準SMD封裝,引腳間距為5.5毫米,適合實時時鐘應用,塑料封裝,產品廣泛應用于時鐘鐘表,智能手機,智能手表,數碼相機,手機導航,GPS,醫療設備等用途。
LFXTAL003000,貼片晶振32.768K,IQD晶振,參數表
編碼 | LFXTAL003000 |
品牌 | IQD |
型號 | 85SMX |
頻率 | 32.768 kHz |
精度 |
±20ppm |
負載電容 |
12.5pF |
工作溫度 |
-40C ~ 85°C |
尺寸 | 8.7mm*3.8mm |
Mfr Part # | 晶體諧振器 | Series | Frequency | Frequency Tolerance | Load Capacitance | Operating Temperature |
LFXTAL003000 | IQD Frequency Products | 85SMX | 32.768 kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
LFXTAL069395RL3K | IQD Frequency Products | CFPX-218 | 16.384 MHz | ±20ppm | 10pF | -40°C ~ 85°C |
LFXTAL009678 | IQD Frequency Products | CFPX-217 | 32.768 kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
LFXTAL055299REEL | IQD Frequency Products | CFPX-180 | 25 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
LFXTAL053099REEL | IQD Frequency Products | CFPX-180 | 27.12 MHz | ±10ppm | 10pF | -20°C ~ 70°C |
LFXTAL055663REEL | IQD Frequency Products | CFPX-104 | 8 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
LFXTAL069383REEL | IQD Frequency Products | CFPX-218 | 24 MHz | ±20ppm | 10pF | -40°C ~ 85°C |
LFXTAL035264REEL | IQD Frequency Products | CFPX-180 | 16 MHz | ±50ppm | 16pF | -10°C ~ 60°C |
LFXTAL069944REEL | IQD Frequency Products | CFPX-180 | 12 MHz | ±20ppm | 15pF | -40°C ~ 85°C |
LFXTAL035268REEL | IQD Frequency Products | CFPX-180 | 25 MHz | ±50ppm | 16pF | -10°C ~ 60°C |
LFXTAL061627REEL | IQD Frequency Products | CFPX-104 | 8 MHz | ±20ppm | 16pF | -40°C ~ 85°C |
LFXTAL055901REEL | IQD Frequency Products | CFPX-104 | 8 MHz | ±20ppm | 18pF | -20°C ~ 70°C |
LFXTAL059158REEL | IQD Frequency Products | CFPX-104 | 8 MHz | ±30ppm | 16pF | -40°C ~ 85°C |
LFXTAL055663BULK | IQD Frequency Products | CFPX-104 | 8 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
LFXTAL082071RL3K | IQD Frequency Products | CFPX-180 | 16 MHz | ±10ppm | 8pF | -40°C ~ 85°C |
LFXTAL082069RL3K | IQD Frequency Products | CFPX-180 | 12 MHz | ±10ppm | 8pF | -40°C ~ 85°C |
LFXTAL058637RL3K | IQD Frequency Products | CFPX-180 | 25 MHz | ±30ppm | 12pF | -40°C ~ 85°C |
LFXTAL063334REEL | IQD Frequency Products | CFPX-218 | 25 MHz | ±20ppm | 10pF | -40°C ~ 85°C |
LFXTAL055474REEL | IQD Frequency Products | CFPX-180 | 25 MHz | ±50ppm | 16pF | -40°C ~ 85°C |
LFXTAL059648REEL | IQD Frequency Products | CFPX-180 | 40 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
LFXTAL072604REEL | IQD Frequency Products | CFPX-180 | 25 MHz | ±10ppm | 8pF | -40°C ~ 85°C |
LFXTAL069882REEL | IQD Frequency Products | CFPX-180 | 12 MHz | ±30ppm | 10pF | -40°C ~ 125°C |
LFXTAL070065REEL | IQD Frequency Products | CFPX-180 | 24 MHz | ±10ppm | 9pF | -40°C ~ 85°C |
LFXTAL055293REEL | IQD Frequency Products | CFPX-180 | 14.7456 MHz | ±50ppm | 18pF | -40°C ~ 85°C |
LFXTAL009650REEL | IQD Frequency Products | CFPX-180 | 16 MHz | ±10ppm | 16pF | -40°C ~ 85°C |
LFXTAL055295REEL | IQD Frequency Products | CFPX-180 | 12 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
LFXTAL082076REEL | IQD Frequency Products | CFPX-180 | 32 MHz | ±10ppm | 8pF | -40°C ~ 85°C |
LFXTAL057997REEL | IQD Frequency Products | CFPX-180 | 16 MHz | ±10ppm | 10pF | -40°C ~ 85°C |
LFXTAL056346REEL | IQD Frequency Products | CFPX-180 | 12 MHz | ±30ppm | 18pF | -40°C ~ 85°C |
LFXTAL083138RL3K | IQD Frequency Products | CFPX-180 | 8 MHz | ±30ppm | 12pF | -40°C ~ 85°C |
LFXTAL030819REEL | IQD Frequency Products | CFPX-104 | 16 MHz | ±50ppm | 18pF | -10°C ~ 60°C |
LFXTAL059530REEL | IQD Frequency Products | CFPX-104 | 24 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
LFXTAL061633REEL | IQD Frequency Products | CFPX-104 | 13.56 MHz | ±20ppm | 16pF | -40°C ~ 85°C |
