LFXTAL025159REEL石英晶體,CFPX-56兩腳插件晶振,
頻率:32.768K

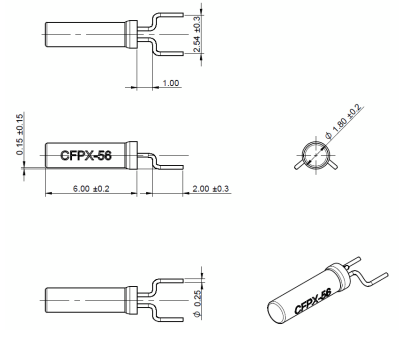

尺寸:1.8mm*6.0mm
LFXTAL025159REEL石英晶體,CFPX-56兩腳插件晶振,編碼:LFXTAL025159REEL,型號:CFPX-56,工作溫度:-40℃ ~ 85°C,尺寸:1.8mm*6.0mm,頻率:32.768 kHz,精度:±20ppm,負載電容:12.5pF,英國進口晶振,IQD石英晶體諧振器,石英晶振,貼片晶振,32.768貼片晶振,2x 6毫米手表水晶,帶預成型支腳,用于制作SMD 包裹。適合實時時鐘應用,智能手機,智能手表,工業設備,車載設備,網絡設備,無線電話,無線通信,計算機等應用。

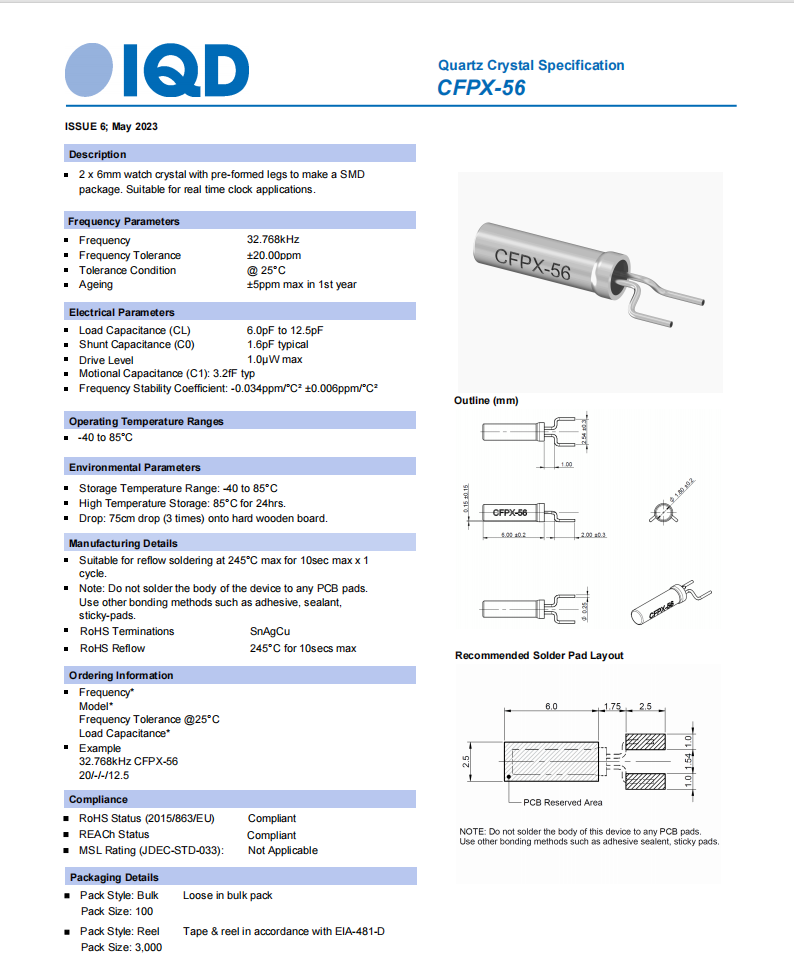

LFXTAL025159REEL石英晶體,CFPX-56兩腳插件晶振,參數表
編碼 | LFXTAL025159REEL |
品牌 | IQD |
型號 | CFPX-56 |
頻率 | 32.768 kHz |
精度 |
±20ppm |
負載電容 |
12.5pF |
工作溫度 |
-40℃ ~ 85°C |
尺寸 | 1.8mm*6.0mm |
Mfr Part # | 貼片石英晶體 | Series | Frequency | Frequency Tolerance | Load Capacitance | Operating Temperature |
LFXTAL069395RL3K | IQD Frequency Products | CFPX-218 | 16.384 MHz | ±20ppm | 10pF | -40°C ~ 85°C |
LFXTAL025159REEL | IQD Frequency Products | CFPX-56 | 32.768 kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
LFXTAL069383REEL | IQD Frequency Products | CFPX-218 | 24 MHz | ±20ppm | 10pF | -40°C ~ 85°C |
LFXTAL063334REEL | IQD Frequency Products | CFPX-218 | 25 MHz | ±20ppm | 10pF | -40°C ~ 85°C |
LFXTAL069405REEL | IQD Frequency Products | CFPX-218 | 27 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
LFXTAL069392REEL | IQD Frequency Products | CFPX-218 | 16 MHz | ±20ppm | 10pF | -40°C ~ 85°C |
LFXTAL068297REEL | IQD Frequency Products | CFPX-218 | 16 MHz | ±10ppm | 8pF | -20°C ~ 75°C |
LFXTAL069407REEL | IQD Frequency Products | CFPX-218 | 30 MHz | ±20ppm | 10pF | -40°C ~ 85°C |
LFXTAL082082CUTT | IQD Frequency Products | CFPX-218 | 24 MHz | ±10ppm | 10pF | -20°C ~ 70°C |
LFXTAL069381REEL | IQD Frequency Products | CFPX-218 | 20 MHz | ±20ppm | 10pF | -40°C ~ 85°C |
LFXTAL071952RL3K | IQD Frequency Products | CFPX-218 | 12 MHz | ±20ppm | 10pF | -40°C ~ 85°C |
LFXTAL025159BULK | IQD Frequency Products | CFPX-56 | 32.768 kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
LFXTAL081865RL3K | IQD Frequency Products | CFPX-218 | 26 MHz | ±10ppm | 10pF | -20°C ~ 70°C |
LFXTAL082080RL3K | IQD Frequency Products | CFPX-218 | 19.2 MHz | ±10ppm | 10pF | -20°C ~ 70°C |
LFXTAL078207RL3K | IQD Frequency Products | CFPX-218 | 32 MHz | ±10ppm | 10pF | -20°C ~ 70°C |
LFXTAL072844RL3K | IQD Frequency Products | CFPX-218 | 30 MHz | ±10ppm | 10pF | -20°C ~ 70°C |
LFXTAL082084RL3K | IQD Frequency Products | CFPX-218 | - | ±10ppm | 10pF | -20°C ~ 70°C |
LFXTAL082081RL3K | IQD Frequency Products | CFPX-218 | - | ±10ppm | 10pF | -20°C ~ 70°C |
LFXTAL078719RL3K | IQD Frequency Products | CFPX-218 | - | ±10ppm | 10pF | -20°C ~ 70°C |
LFXTAL082082RL3K | IQD Frequency Products | CFPX-218 | 24 MHz | ±10ppm | 10pF | -20°C ~ 70°C |
LFXTAL082087RL3K | IQD Frequency Products | CFPX-218 | 40 MHz | ±10ppm | 10pF | -20°C ~ 70°C |
LFXTAL082088RL3K | IQD Frequency Products | CFPX-218 | 50 MHz | ±10ppm | 10pF | -20°C ~ 70°C |
LFXTAL069400REEL | IQD Frequency Products | CFPX-218 | 18.432 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
LFXTAL050991REEL | IQD Frequency Products | CFPX-218 | 26 MHz | ±20ppm | 10pF | -40°C ~ 85°C |
LFXTAL069387REEL | IQD Frequency Products | CFPX-218 | 24.576 MHz | ±20ppm | 10pF | -40°C ~ 85°C |
LFXTAL069390REEL | IQD Frequency Products | CFPX-218 | 32 MHz | ±20ppm | 10pF | -40°C ~ 85°C |
LFXTAL069404REEL | IQD Frequency Products | CFPX-218 | 19.2 MHz | ±20ppm | 10pF | -40°C ~ 85°C |
LFXTAL071952REEL | IQD Frequency Products | CFPX-218 | 12 MHz | ±20ppm | 10pF | -40°C ~ 85°C |
LFXTAL082084CUTT | IQD Frequency Products | CFPX-218 | 27 MHz | ±10ppm | 10pF | -20°C ~ 70°C |
LFXTAL082087CUTT | IQD Frequency Products | CFPX-218 | 40 MHz | ±10ppm | 10pF | -20°C ~ 70°C |
LFXTAL082081CUTT | IQD Frequency Products | CFPX-218 | 20 MHz | ±10ppm | 10pF | -20°C ~ 70°C |
LFXTAL078207REEL | IQD Frequency Products | CFPX-218 | 32 MHz | ±10ppm | 10pF | -20°C ~ 70°C |
