LFXTAL055663REEL,英國進口晶振,5032貼片晶體
頻率:8MHz
尺寸:5.0mm*3.2mm
LFXTAL055663REEL,英國進口晶振,5032貼片晶體振,編碼:LFXTAL055663REEL,型號:CFPX-104,工作溫度:-40C ~ 85°C,尺寸:5.0mm*3.2mm,頻率:8 MHz,精度:±20ppm,負載電容:18pF,無源晶振,英國進口晶振,IQD晶振,石英晶體諧振器,石英晶體晶振,貼片 晶體,帶四個焊盤的標準5x3.2mm毫米SMD晶體,帶接縫密封金屬蓋的陶瓷封裝,密封,被廣泛應用于智能手機,數碼電子產品,智能家具家電,平板電腦,計算機,網絡設備,GPS,藍牙等用途。

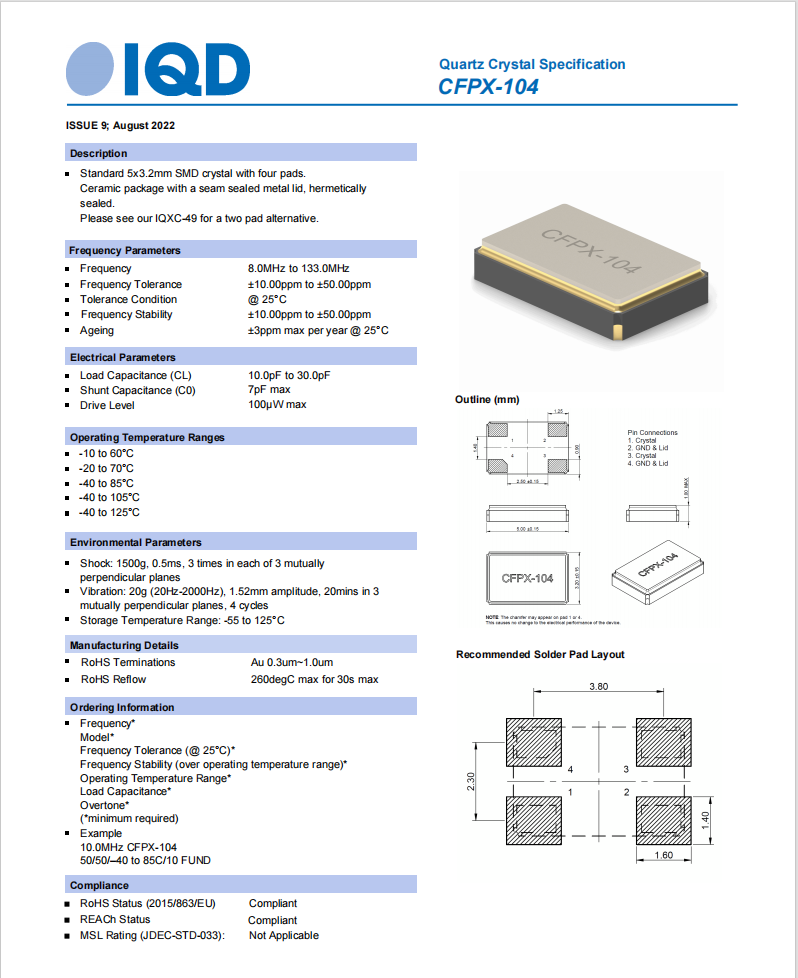

LFXTAL055663REEL,英國進口晶振,5032貼片晶體,參數表
編碼 | LFXTAL055663REEL |
品牌 | IQD |
型號 | CFPX-104 |
頻率 | 8 MHz |
精度 |
±20ppm |
負載電容 |
18pF |
工作溫度 |
-40C ~ 85°C |

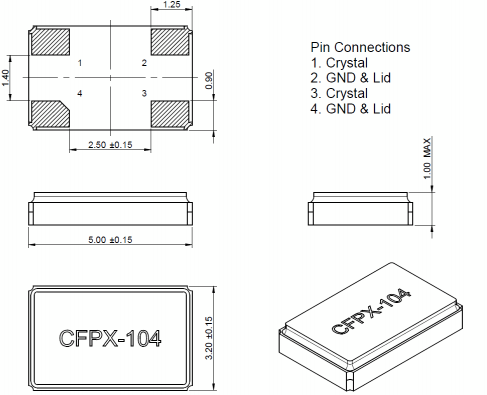

尺寸 | 5.0mm*3.2mm |
Mfr Part # | 貼片石英晶體 | Series | Frequency | Frequency Tolerance | Load Capacitance | Operating Temperature |
LFXTAL055663REEL | IQD Frequency Products | CFPX-104 | 8 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
LFXTAL061627REEL | IQD Frequency Products | CFPX-104 | 8 MHz | ±20ppm | 16pF | -40°C ~ 85°C |
LFXTAL055901REEL | IQD Frequency Products | CFPX-104 | 8 MHz | ±20ppm | 18pF | -20°C ~ 70°C |
LFXTAL059158REEL | IQD Frequency Products | CFPX-104 | 8 MHz | ±30ppm | 16pF | -40°C ~ 85°C |
LFXTAL055663BULK | IQD Frequency Products | CFPX-104 | 8 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
LFXTAL030819REEL | IQD Frequency Products | CFPX-104 | 16 MHz | ±50ppm | 18pF | -10°C ~ 60°C |
LFXTAL059530REEL | IQD Frequency Products | CFPX-104 | 24 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
LFXTAL061633REEL | IQD Frequency Products | CFPX-104 | 13.56 MHz | ±20ppm | 16pF | -40°C ~ 85°C |
LFXTAL055999REEL | IQD Frequency Products | CFPX-104 | 12 MHz | ±30ppm | 18pF | -40°C ~ 85°C |
LFXTAL033075REEL | IQD Frequency Products | CFPX-104 | 25 MHz | ±50ppm | 18pF | -10°C ~ 60°C |
LFXTAL059532REEL | IQD Frequency Products | CFPX-104 | 25 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
LFXTAL056556REEL | IQD Frequency Products | CFPX-104 | 12.5 MHz | ±50ppm | 18pF | -40°C ~ 85°C |
LFXTAL059528REEL | IQD Frequency Products | CFPX-104 | 16.384 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
LFXTAL050518REEL | IQD Frequency Products | CFPX-104 | 12 MHz | ±30ppm | 12pF | -40°C ~ 85°C |
LFXTAL061486REEL | IQD Frequency Products | CFPX-104 | 8.192 MHz | ±30ppm | 10pF | -40°C ~ 85°C |
LFXTAL036401REEL | IQD Frequency Products | CFPX-104 | 12 MHz | ±20ppm | 18pF | -20°C ~ 70°C |
LFXTAL069277REEL | IQD Frequency Products | CFPX-104 | 8 MHz | ±20ppm | 20pF | -40°C ~ 85°C |
LFXTAL059531REEL | IQD Frequency Products | CFPX-104 | 24.576 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
LFXTAL033645REEL | IQD Frequency Products | CFPX-104 | 40 MHz | ±50ppm | 18pF | -10°C ~ 60°C |
LFXTAL056583REEL | IQD Frequency Products | CFPX-104 | 10 MHz | ±30ppm | 12pF | -40°C ~ 85°C |
LFXTAL061642REEL | IQD Frequency Products | CFPX-104 | 25 MHz | ±20ppm | 16pF | -40°C ~ 85°C |
LFXTAL032817REEL | IQD Frequency Products | CFPX-104 | 24 MHz | ±50ppm | 18pF | -10°C ~ 60°C |
LFXTAL072402REEL | IQD Frequency Products | CFPX-104 | 10 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
LFXTAL059523REEL | IQD Frequency Products | CFPX-104 | 12.288 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
LFXTAL033328BULK | IQD Frequency Products | CFPX-104 | 14.7456 MHz | ±50ppm | 18pF | -10°C ~ 60°C |
LFXTAL033075BULK | IQD Frequency Products | CFPX-104 | 25 MHz | ±50ppm | 18pF | -10°C ~ 60°C |
LFXTAL059532BULK | IQD Frequency Products | CFPX-104 | 25 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
LFXTAL032878BULK | IQD Frequency Products | CFPX-104 | 12 MHz | ±50ppm | 18pF | -10°C ~ 60°C |
LFXTAL059522BULK | IQD Frequency Products | CFPX-104 | 12 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
LFXTAL030819BULK | IQD Frequency Products | CFPX-104 | 16 MHz | ±50ppm | 18pF | -10°C ~ 60°C |
LFXTAL059530BULK | IQD Frequency Products | CFPX-104 | 24 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
LFXTAL059522REEL | IQD Frequency Products | CFPX-104 | 12 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
LFXTAL032878REEL | IQD Frequency Products | CFPX-104 | 12 MHz | ±50ppm | 18pF | -10°C ~ 60°C |
