首頁 行業資訊

亞陶晶振KX251系列低電流和高度穩定性的實時時鐘振蕩器KX2513G0032.768000

2022-08-05 17:06:56 壹兆電子

我們的32.768k晶體振蕩器(XO)具有適用于各種應用的卓越性能。我們的產品包括世界上最小的32.768kHz晶體振蕩器(XO)，尺寸僅為2.0x1.6mm（KM系列）。KM系列旨在應對小型化的挑戰，同時保持時序信號的卓越精度。我們還提供KX系列晶體振蕩器，它們是業界功耗最低（小于10µA）和最嚴格穩定性 (+/- 20ppm) 的32kHz XO。
由于許多低功耗和便攜式應用程序大部分時間都處于待機模式，因此這些系統必須最大限度地降低待機功耗。我們基于32.768kHz的定時源允許這些系統快速轉換到待機模式（<10ms），以最大限度地延長電池壽命，而不會犧牲維持準確時鐘和日歷所需的穩定性（± 20ppm）。

亞陶晶振KX251系列低電流和高度穩定性的實時時鐘振蕩器KX2513G0032.768000

KX3213G0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KX3211H0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KD3270043 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KN3270026 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm
KN3270034 百利通亞陶晶振 SaRonix-eCera™ KN 32.768kHz ±25ppm
KD3270012 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KK3270040 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm
KK3270042 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm
KK3270044 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm
KN3270027 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±20ppm
KD3270033 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±20ppm
KN3270030 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±20ppm
KD3270039 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±20ppm
KN3270023 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm
FNC500129 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm
KN3270036 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm
KN3270029 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm
KX2511B0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KX2511C0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
KX2511E0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
KX2511H0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KX2513C0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
KX2513E0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
KX2513H0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KX2513B0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KD3270038 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm

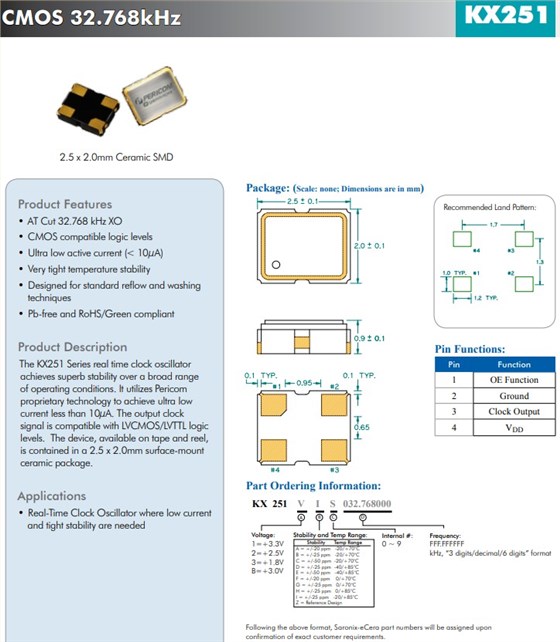

KX251系列實時時鐘晶體振蕩器在廣泛的工作條件下實現了卓越的穩定性。電源電壓1.8V/2.5V/3.3V，小體積晶振尺寸2.5x2.0mm, 32.768kHz CMOS晶體振蕩器它利用Pericom專有技術實現小于10μA的超低電流。輸出時鐘信號與LVCMOS/LVTTL邏輯電平兼容。該器件采用卷帶包裝，采用2.5x2.0mm表面貼裝陶瓷封裝。

特征：
AT Cut 32.768k XO振蕩器
CMOS兼容邏輯電平
超低有功電流（< 10μA）
非常嚴格的溫度穩定性
專為標準回流和清洗技術而設計
無鉛且符合RoHS/Green標準
應用：需要低電流和高度穩定性的實時時鐘振蕩器

亞陶晶振KX251系列低電流和高度穩定性的實時時鐘振蕩器KX2513G0032.768000

KD3270038 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KD3270038 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KN3270025 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm
KX2513A0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±20ppm
KD3270041 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±20ppm
KN3270024 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±20ppm
KK3270047 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm
KD3270044 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KD3270044 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KD3270044 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KN3270035 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm
KK3270007 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm
KK3270053 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±20ppm
KK3270041 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±20ppm
KK3270043 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm
S1700C-20.0000 Diodes Incorporated SaRonix™ S1700 20MHz ±100ppm
KK3270048 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±20ppm
KX3213H0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KX3213E0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
KX3213A0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±20ppm
KX3213D0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KX3213Z0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz -
KX2511G0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
NX5011C0056.000000 Diodes Incorporated SaRonix-eCera™ NX 56MHz ±50ppm
KX2511D0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KX2511Z0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz -
NX7011E0059.000000 Diodes Incorporated SaRonix-eCera™ NX 59MHz ±50ppm
FRSONT019 Diodes Incorporated SaRonix-eCera™ FR 19.44MHz ±25ppm

亞陶晶振KX251系列低電流和高度穩定性的實時時鐘振蕩器KX2513G0032.768000

產品參數

輸出邏輯 CMOS
電源電壓 (V) 1.8,2.5,3.3
包裝尺寸（毫米） 2.5x2.0x0.9振蕩器
包裝類型 陶瓷縫
穩定性 (PPM) 20 到 50
產品系列 KX251
頻率范圍 (MHz) 32.768KHZ
抖動均方根 (ps) <1 PS
墊 4
家庭 千赫XO

2

KX201 1.82.53.3 2.0 x 1.6 x 0.75 陶瓷縫 20~50 KX201 32.768KHZ <1 4 1.8V/2.5V/3.3V, 2.0x1.6mm, 32.768kHz CMOS 晶體振蕩器
KX251 1.82.53.3 2.5 x 2.0 x 0.9 陶瓷縫 20~50 KX251 32.768KHZ <1 4 1.8V/2.5V/3.3V, 2.5x2.0mm, 32.768kHz CMOS晶體振蕩器
KX31Q 3.32.51.8 3.2 x 2.5 陶瓷縫 20~50 KXQ 32.768KHZ <1 4 1.8/2.5/3.3V、3.2x2.5mm、超低電流、32.768KHz、汽車級CMOS晶體振蕩器
KX321 1.82.53.3 3.2 x 2.5 x 1.0 陶瓷縫 20~50 KX321 32.768KHZ <1 4 1.8V/2.5V/3.3V, 3.2x2.5mm, 32.768kHz CMOS 晶體振蕩器
KX501 1.82.53.3 5.0 x 3.2 x 1.2 陶瓷縫 20~50 KX501 32.768KHZ <1 4 1.8V/2.5V/3.3V, 5.0x3.2mm, 32.768kHz CMOS 晶體振蕩器
