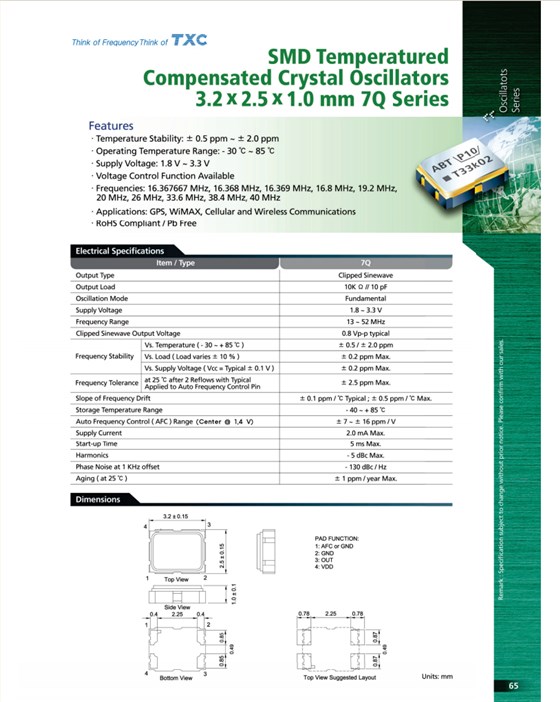

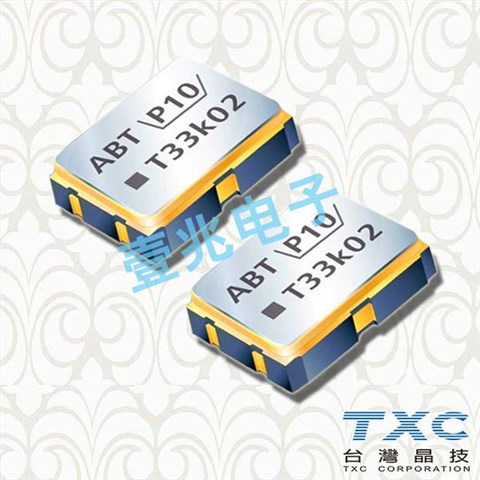

3225壓控溫補晶振,TXC進口晶體,7Q-12.800MCS-T,編碼:7Q-12.800MCS-T,型號:7Q,工作溫度:-30°C ~ 85°C,尺寸:3.2mm*2.5mm,頻率:12.8 MHz,精度:±2ppm,電壓:2.5V,電流:2mA,壓控溫補晶振,有源晶振SPXO,3225進口晶振,石英晶體振蕩器,壓控溫補振蕩器VC-TCXO,具有最適合于移動通信設備用途的高穩定的頻率溫度特性.為對應低電源電壓的產品.(可對應DC+1.8V±0.1Vto+3.2V±0.1V)高度:最高1.0mm,體積:0.007cm3,重量:0.024g,超小型,輕型.低消耗電流,表面貼片型產品.(可對應回流焊)無鉛產品.滿足無鉛焊接的回流溫度曲線要求。
3225壓控溫補晶振,TXC進口晶體,7Q-12.800MCS-T,參數表
編碼 |
7Q-12.800MCS-T |
品牌 | TXC |
型號 | 7Q |
頻率 | 12.8 MHz |
精度 |
±2ppm |
電壓 |
2.5V |
電流 |
2mA |
工作溫度 |
-30°C ~ 85°C |

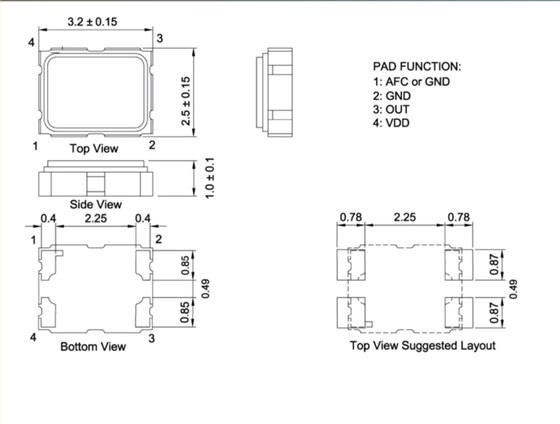

尺寸 | 3.2mm*2.5mm |
Mfr Part # | 3225進口晶振 | Series | Type | Frequency | Output | Voltage - Supply | Frequency Stability |
7Q-16.367667MBN-T | TXC CORPORATION | 7Q | TCXO | 16.367667 MHz | Clipped Sine Wave | 3.3V | ±2ppm |
7Q-16.368MBN-T | TXC CORPORATION | 7Q | TCXO | 16.368 MHz | Clipped Sine Wave | 3.3V | ±2ppm |
7Q-19.200MBS-T | TXC CORPORATION | 7Q | VCTCXO | 19.2 MHz | Clipped Sine Wave | 3.3V | ±2ppm |
7Q-26.000MBS-T | TXC CORPORATION | 7Q | VCTCXO | 26 MHz | Clipped Sine Wave | 3.3V | ±2ppm |
7Q-40.000MBS-T | TXC CORPORATION | 7Q | VCTCXO | 40 MHz | Clipped Sine Wave | 3.3V | ±2ppm |
7Q-16.367667MBG-T | TXC CORPORATION | 7Q | TCXO | 16.367667 MHz | Clipped Sine Wave | 3.3V | ±500ppb |
7Q-16.3676MBG-T | TXC CORPORATION | 7Q | TCXO | 16.3676 MHz | Clipped Sine Wave | 3.3V | ±500ppb |
7Q-16.368MBG-T | TXC CORPORATION | 7Q | TCXO | 16.368 MHz | Clipped Sine Wave | 3.3V | ±500ppb |
7Q-16.369MBG-T | TXC CORPORATION | 7Q | TCXO | 16.369 MHz | Clipped Sine Wave | 3.3V | ±500ppb |
7Q-26.000MBG-T | TXC CORPORATION | 7Q | TCXO | 26 MHz | Clipped Sine Wave | 3.3V | ±500ppb |
7Q-12.800MCS-T | TXC CORPORATION | 7Q | VCTCXO | 12.8 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
7Q-16.000MCS-T | TXC CORPORATION | 7Q | VCTCXO | 16 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
7Q-16.3676MCS-T | TXC CORPORATION | 7Q | VCTCXO | 16.3676 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
7Q-16.367667MCS-T | TXC CORPORATION | 7Q | VCTCXO | 16.367667 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
7Q-16.368MCS-T | TXC CORPORATION | 7Q | VCTCXO | 16.368 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
7Q-16.369MCS-T | TXC CORPORATION | 7Q | VCTCXO | 16.369 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
7Q-19.200MCS-T | TXC CORPORATION | 7Q | VCTCXO | 19.2 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
7Q-20.000MCS-T | TXC CORPORATION | 7Q | VCTCXO | 20 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
7Q-20.800MCS-T | TXC CORPORATION | 7Q | VCTCXO | 20.8 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
7Q-24.000MCS-T | TXC CORPORATION | 7Q | VCTCXO | 24 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
7Q-26.000MCS-T | TXC CORPORATION | 7Q | VCTCXO | 26 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
7Q-27.000MCS-T | TXC CORPORATION | 7Q | VCTCXO | 27 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
7Q-38.400MCS-T | TXC CORPORATION | 7Q | VCTCXO | 38.4 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
7Q-40.000MCS-T | TXC CORPORATION | 7Q | VCTCXO | 40 MHz | Clipped Sine Wave | 2.5V | ±2ppm |
7Q-12.800MCG-T | TXC CORPORATION | 7Q | TCXO | 12.8 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
7Q-16.000MCG-T | TXC CORPORATION | 7Q | TCXO | 16 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
7Q-16.3676MCG-T | TXC CORPORATION | 7Q | TCXO | 16.3676 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
7Q-16.367667MCG-T | TXC CORPORATION | 7Q | TCXO | 16.367667 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
7Q-16.368MCG-T | TXC CORPORATION | 7Q | TCXO | 16.368 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
7Q-16.369MCG-T | TXC CORPORATION | 7Q | TCXO | 16.369 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
7Q-19.200MCG-T | TXC CORPORATION | 7Q | TCXO | 19.2 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
7Q-20.000MCG-T | TXC CORPORATION | 7Q | TCXO | 20 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
7Q-20.800MCG-T | TXC CORPORATION | 7Q | TCXO | 20.8 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
7Q-24.000MCG-T | TXC CORPORATION | 7Q | TCXO | 24 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
7Q-26.000MCG-T | TXC CORPORATION | 7Q | TCXO | 26 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
7Q-27.000MCG-T | TXC CORPORATION | 7Q | TCXO | 27 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
7Q-38.400MCG-T | TXC CORPORATION | 7Q | TCXO | 38.4 MHz | Clipped Sine Wave | 2.5V | ±500ppb |
