5032mm|NX5032GA-20.000000MHZ-STD-CSK-8|20MHz|8pF消費設備晶振
頻率:8MHZ-55MHZ
尺寸:5.0x3.2mm
5032mm|NX5032GA-20.000000MHZ-STD-CSK-8|20MHz|8pF消費設備晶振,日本進口NDK晶振,型號NX5032GA,是一款小體積晶振尺寸5.0x3.2mm 兩腳貼片晶振,無源晶振,石英晶振,石英晶體諧振器,無鉛環保晶振,頻率范圍:8MHz至55MHZ,具超小型,輕薄型,優異的環境阻力性能,耐熱性和耐沖擊性,回流溫度分布(可用于無鉛焊接),適用于汽車配件,消費電子產品晶振設備,參考時鐘來源的視頻和音頻設備應用。

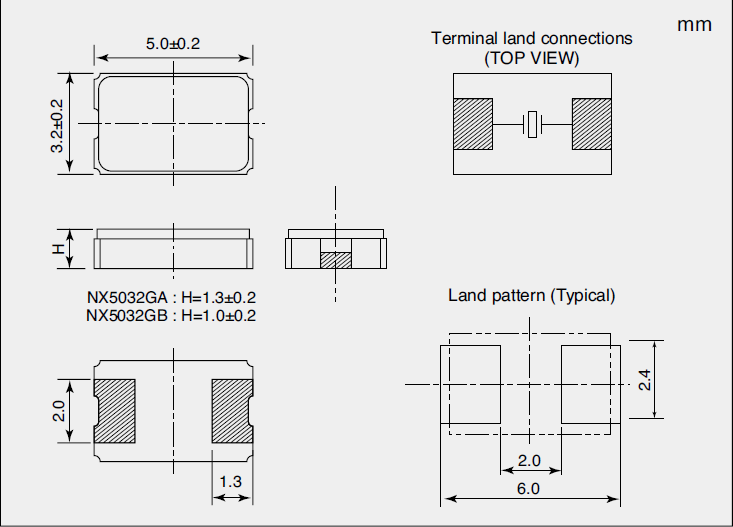

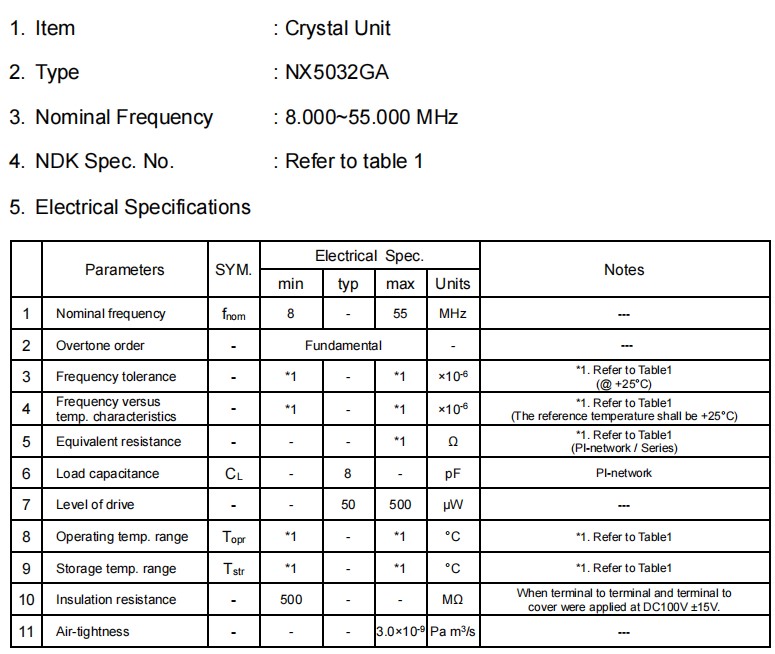

5032mm|NX5032GA-20.000000MHZ-STD-CSK-8|20MHz|8pF消費設備晶振,參數圖
Item | Model | NX5032GA | ||||
Nominal Frequency | 8 to 10.5 MHz | 10.5 to 50 MHz | 8 to 10.5 MHz | 10.5 to 50 MHz | 50 to 55 MHz | |
Overtone Order | Fundamental | |||||
Frequency Tolerance (25 ±3 °C) | ±30 × 10−6 | ±20 × 10−6 | ||||
Frequency versus Temperature Characteristics (with reference to +25 °C) | ±50 × 10−6 | ±30 × 10−6 | ||||
Operating Temperature Range | −40 to +85 °C | −10 to +70 °C | ||||
Storage Temperature Range | −40 to +125 °C | −40 to +85 °C | ||||
Equivalent Series Resistance | Refer to *1 | Refer to *2 | ||||
Level of Drive | 50 μW (Max. 500 μW) | |||||
Load Capacitance | 8 pF | |||||
Specifications Number | STD-CSK-7 | STD-CSK-8 | STD-CSK-3 | STD-CSK-4 | STD-CKW3 |

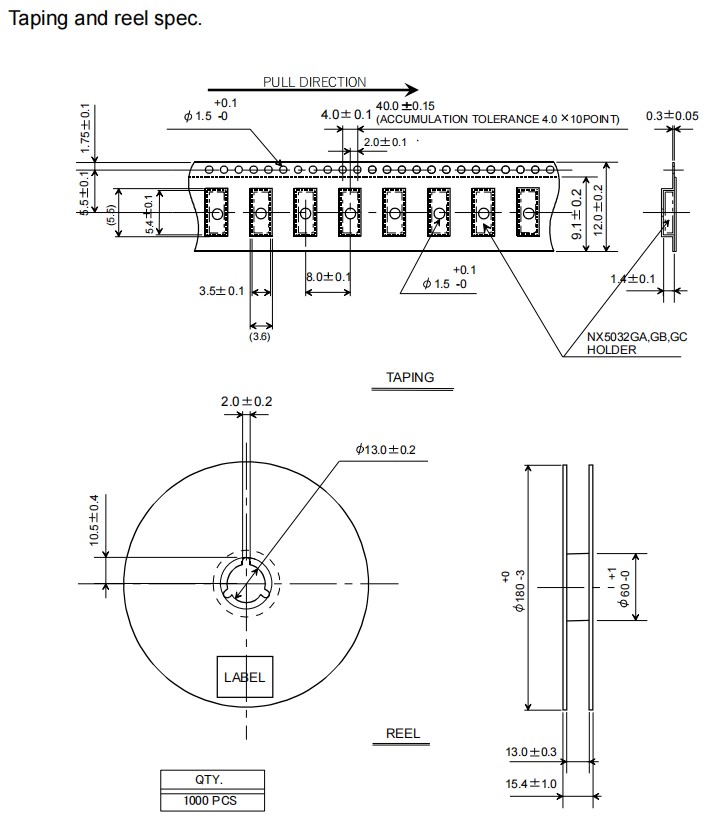

5032mm|NX5032GA-20.000000MHZ-STD-CSK-8|20MHz|8pF消費設備晶振,膠帶和卷軸規格
5032mm|NX5032GA-20.000000MHZ-STD-CSK-8|20MHz|8pF消費設備晶振
安裝條件:
請確保在以下條件下使用該產品。否則,可能會導致產品的特性惡化或破壞。
(1)回流焊耐熱峰值溫度
峰值溫度:265℃, 10sec.
加熱:230℃或更高,40秒
預熱:150~180℃,120秒
回流通道次數:2次
(2)手動焊接耐熱性
在終端電極上按壓400°C的焊鐵4秒鐘(兩次)
使用焊鐵時,將尖端壓在密封部分下方的部分,避免玻璃密封部分(否則玻璃融化,失去氣密性)
原廠編碼 | 晶振廠家 | 型號 | 頻率 | 頻率穩定度 | 包裝/封裝 |
NX5032GA-24.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 24MHz | ±50ppm | 2-SMD, No Lead |
NX5032GA-25.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 25MHz | ±50ppm | 2-SMD, No Lead |
NX5032GA-27.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 27MHz | ±50ppm | 2-SMD, No Lead |
NX5032GA-16.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 16MHz | ±50ppm | 2-SMD, No Lead |
NX5032GA-10.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 10MHz | ±50ppm | 2-SMD, No Lead |
NX5032GA-12.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 12MHz | ±50ppm | 2-SMD, No Lead |
NX5032GA-48.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 48MHz | ±50ppm | 2-SMD, No Lead |
NX5032GA-16.384000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 16.384MHz | ±50ppm | 2-SMD, No Lead |
NX5032GA-20.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 20MHz | ±50ppm | 2-SMD, No Lead |
NX5032GA-32.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 32MHz | ±50ppm | 2-SMD, No Lead |
NX5032GA-27M-STD-CSK-4 | NDK晶振 | NX5032GA | 27MHz | ±30ppm | 2-SMD, No Lead |
NX5032GA-12.288M-STD-CSK-4 | NDK晶振 | NX5032GA | 12.288MHz | ±30ppm | 2-SMD, No Lead |
NX5032GA-14.31818M-STD-CSK-4 | NDK晶振 | NX5032GA | 14.31818MHz | ±30ppm | 2-SMD, No Lead |
NX5032GA-25.000M-STD-CSK-4 | NDK晶振 | NX5032GA | 25MHz | ±30ppm | 2-SMD, No Lead |
NX5032GA-12MHZ-STD-CSK-4 | NDK晶振 | NX5032GA | 12MHz | ±30ppm | 2-SMD, No Lead |
NX5032GA-10.000M-STD-CSU-1 | NDK晶振 | NX5032GA | 10MHz | ±150ppm | 2-SMD, No Lead |
NX5032GA-20.000M-STD-CSU-2 | NDK晶振 | NX5032GA | 20MHz | ±150ppm | 2-SMD, No Lead |
NX5032GA-12.000M-STD-CSU-2 | 晶體諧振器 | NX5032GA | 12MHz | ±150ppm | 2-SMD, No Lead |
NX5032GA-20.000M-STD-CSK-4 | NDK晶振 | NX5032GA | 20MHz | ±30ppm | 2-SMD, No Lead |
NX5032GA-13.56M-STD-CSK-4 | NDK晶振 | NX5032GA | 13.56MHz | ±30ppm | 2-SMD, No Lead |
NX5032GA-12.288000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 12.288MHz | ±50ppm | 2-SMD, No Lead |
NX5032GA-16MHZ-STD-CSK-8 | NDK晶振 | NX5032GA | 16MHz | ±50ppm | 2-SMD, No Lead |
NX5032GA-16MHZ-STD-CSK-4 | NDK晶振 | NX5032GA | 16MHz | ±30ppm | 2-SMD, No Lead |
NX5032GA- 9.84375M-STD-CSU-1 | NDK晶振 | NX5032GA | 9.84375MHz | ±150ppm | 2-SMD, No Lead |
NX5032GA-10.000M-STD-CSK-3 | NDK晶振 | NX5032GA | 10MHz | ±30ppm | 2-SMD, No Lead |
NX5032GA-30.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 30MHz | ±50ppm | 2-SMD, No Lead |
NX5032GA-40.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 40MHz | ±50ppm | 2-SMD, No Lead |
NX5032GA-12MHZ-STD-CSK-8 | NDK晶振 | NX5032GA | 12MHz | ±50ppm | 2-SMD, No Lead |
NX5032GA-16.000M-STD-CSU-2 | NDK晶振 | NX5032GA | 16MHz | ±150ppm | 2-SMD, No Lead |
NX5032GA-8.000M-STD-CSU-1 | NDK晶振 | NX5032GA | 8MHz | ±150ppm | 2-SMD, No Lead |
NX5032GA-13.560000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 13.56MHz | ±50ppm | 2-SMD, No Lead |
NX5032GA-11.0592M-STD-CSK-4 | NDK晶振 | NX5032GA | 11.0592MHz | ±30ppm | 2-SMD, No Lead |
NX5032GA-30.000M-STD-CSK-4 | NDK晶振 | NX5032GA | 30MHz | ±30ppm | 2-SMD, No Lead |
NX5032GA-24.000M-STD-CSK-4 | NDK晶振 | NX5032GA | 24MHz | ±30ppm | 2-SMD, No Lead |
NX5032GA-40.000M-STD-CSU-2 | NDK晶振 | NX5032GA | 40MHz | ±150ppm | 2-SMD, No Lead |
NX5032GA -13.56M-STD-CSU-2 | NDK晶振 | NX5032GA | 13.56MHz | ±150ppm | 2-SMD, No Lead |
