416F26022CKR石英晶體諧振器,1612貼片晶體,美國CTS晶振
頻率:26MHz
尺寸:1.6mm x 1.2mm

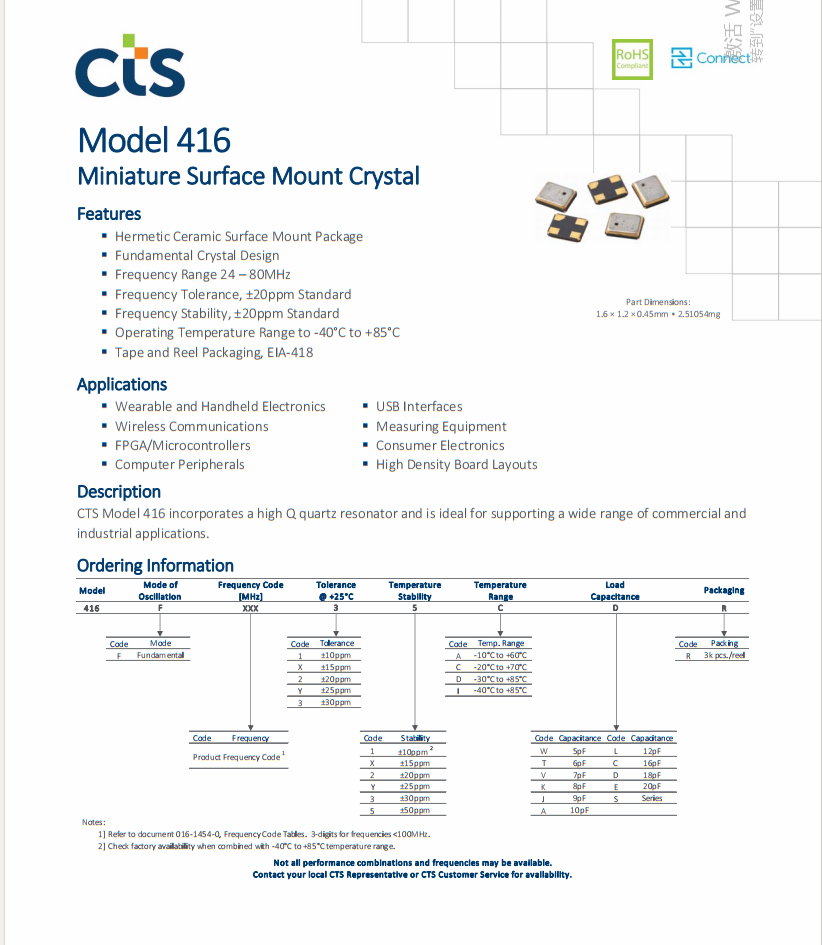

416F26022CKR石英晶體諧振器,1612貼片晶體,美國CTS晶振,參數表
原廠編碼
416F26022CKR
品牌
CTS晶振
型號
416
頻率
26MHz
頻率偏差
±20ppm
負載電容
8pF
工作溫度
-20°C ~ 70°C
Manufacturer Part Number原廠編碼 | 壹兆晶振廠家 | Series型號 | Frequency | Frequency Stability頻率穩定度 | Frequency Tolerance頻率偏差 | Load Capacitance負載電容 | ESR (Equivalent Series Resistance)電阻 | Operating Temperature 工作溫度 |
416F26022CKR | CTS-Frequency Controls | 416 | 26MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm | -20°C ~ 70°C |
416F26022CKR | CTS-Frequency Controls | 416 | 26MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm | -20°C ~ 70°C |
416F26022CKR | CTS-Frequency Controls | 416 | 26MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm | -20°C ~ 70°C |
416F27022CKR | CTS-Frequency Controls | 416 | 27MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm | -20°C ~ 70°C |
416F27022CKR | CTS-Frequency Controls | 416 | 27MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm | -20°C ~ 70°C |
416F27022CKR | CTS-Frequency Controls | 416 | 27MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm | -20°C ~ 70°C |
416F48022CKR | CTS-Frequency Controls | 416 | 48MHz | ±20ppm | ±20ppm | 8pF | 100 Ohm | -20°C ~ 70°C |
416F48022CKR | CTS-Frequency Controls | 416 | 48MHz | ±20ppm | ±20ppm | 8pF | 100 Ohm | -20°C ~ 70°C |
416F48022CKR | CTS-Frequency Controls | 416 | 48MHz | ±20ppm | ±20ppm | 8pF | 100 Ohm | -20°C ~ 70°C |
416F52022CKR | CTS-Frequency Controls | 416 | 52MHz | ±20ppm | ±20ppm | 8pF | 100 Ohm | -20°C ~ 70°C |
416F52022CKR | CTS-Frequency Controls | 416 | 52MHz | ±20ppm | ±20ppm | 8pF | 100 Ohm | -20°C ~ 70°C |
416F52022CKR | CTS-Frequency Controls | 416 | 52MHz | ±20ppm | ±20ppm | 8pF | 100 Ohm | -20°C ~ 70°C |
416F24022IKR | CTS-Frequency Controls | 416 | 24MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm | -40°C ~ 85°C |
416F24022IKR | CTS-Frequency Controls | 416 | 24MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm | -40°C ~ 85°C |
416F24022IKR | CTS-Frequency Controls | 416 | 24MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm | -40°C ~ 85°C |
416F32022IKR | CTS-Frequency Controls | 416 | 32MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm | -40°C ~ 85°C |
416F32022IKR | CTS-Frequency Controls | 416 | 32MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm | -40°C ~ 85°C |
416F32022IKR | CTS-Frequency Controls | 416 | 32MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm | -40°C ~ 85°C |
416F48022IKR | CTS-Frequency Controls | 416 | 48MHz | ±20ppm | ±20ppm | 8pF | 100 Ohm | -40°C ~ 85°C |
416F48022IKR | CTS-Frequency Controls | 416 | 48MHz | ±20ppm | ±20ppm | 8pF | 100 Ohm | -40°C ~ 85°C |
