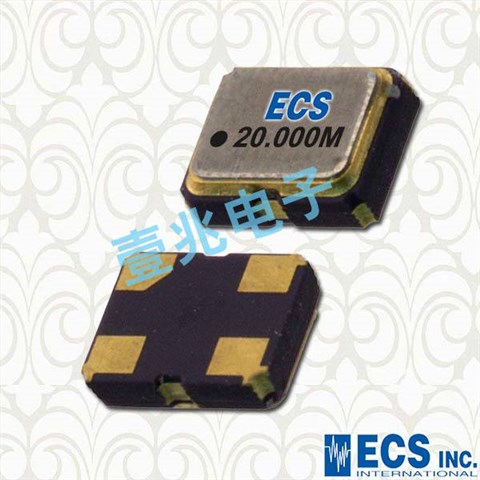

ECS-2520S18-120-FN-TR,12MHz晶振,2520四腳貼片晶振

ECS-2520S18-120-FN-TR,12MHz晶振,2520四腳貼片晶振ECS-2520S18-120-FN-TR,12MHz晶振,2520四腳貼片晶振

產品簡介

ECS-2520S18-120-FN-TR,12MHz晶振,2520四腳貼片晶振，型號：ECS-2520S系列晶振，編碼為：ECS-2520S18-120-FN-TR，頻率：12MHz,尺寸：2.5*2.0mm,工作溫度為：﹣40°C ~ 85°C，四腳貼片晶振，ECS crystal晶振，微型ECS-2520S是微型SMD HCMOS緊密穩定石英晶體振蕩器，2.5 x 2.0 x 0.9毫米陶瓷封裝是理想之選 對于穩定性至關重要無線和IOT應用被廣泛應用于無線通訊系統，無線局域網，智能手機，平板電腦，醫療設備等用途。

產品詳情

ECS-2520S18-120-FN-TR,12MHz晶振,2520四腳貼片晶振，型號：ECS-2520S系列晶振，編碼為：ECS-2520S18-120-FN-TR，頻率：12MHz,尺寸：2.5*2.0mm,工作溫度為：﹣40°C ~ 85°C，四腳貼片晶振，ECS crystal晶振，微型ECS-2520S是微型SMD HCMOS緊密穩定石英晶體振蕩器，2.5 x 2.0 x 0.9毫米陶瓷封裝是理想之選 對于穩定性至關重要無線和IOT應用被廣泛應用于無線通訊系統，無線局域網，智能手機，平板電腦，醫療設備等用途。

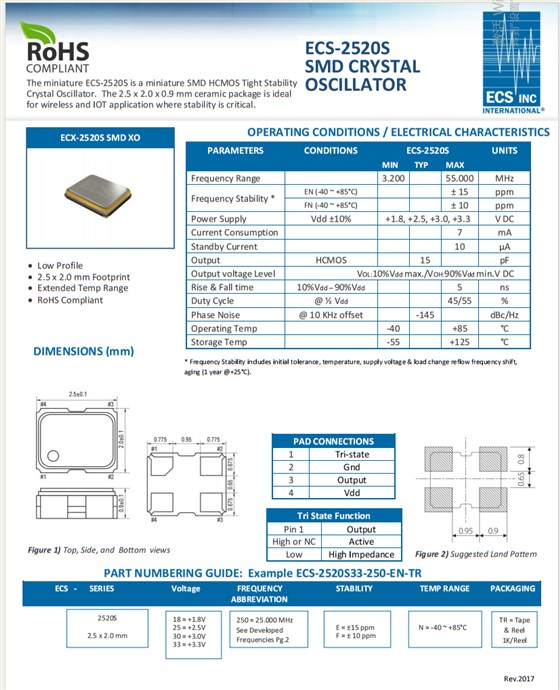

ECS-2520S18-120-FN-TR,12MHz晶振,2520四腳貼片晶振，參數表

PARAMETERS CONDITIONS ECS-2520S UNITS
MIN TYP MAX
Frequency Range
12
MHz
Frequency Stability * EN (-40 ~ +85°C) ± 15 ppm
FN (-40 ~ +85°C) ± 10 ppm
Power Supply Vdd ±10% +1.8, +2.5, +3.0, +3.3 V DC
Current Consumption 7 mA
Standby Current 10 µA
Output HCMOS 15 pF
Output voltage Level VOL:10%Vddmax./VOH:90%Vddmin.V DC
Rise & Fall time 10%Vdd –90%Vdd 5 ns
Duty Cycle @ ½ Vdd 45/55 %
Phase Noise @ 10 KHz offset -145 dBc/Hz
Operating Temp -40 +85 °C
Storage Temp -55 +125 °C

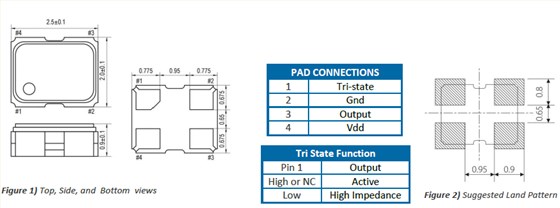

ECS-2520S18-120-FN-TR,12MHz晶振,2520四腳貼片晶振，尺寸圖

ECS-2520S 2520 ECS OSC

ECS2520S

Manufacturer Part Number原廠代碼 有源晶振 Series型號 Frequency 頻率 Operating Temperature工作溫度
ECS-2520S25-240-FN-TR ECS 晶振 ECS-2520S 24MHz -40°C ~ 85°C
ECS-2520S25-240-FN-TR ECS 晶振 ECS-2520S 24MHz -40°C ~ 85°C
ECS-2520S25-240-FN-TR ECS 晶振 ECS-2520S 24MHz -40°C ~ 85°C
ECS-2520S25-500-FN-TR ECS 晶振 ECS-2520S 50MHz -40°C ~ 85°C
ECS-2520S25-500-FN-TR ECS 晶振 ECS-2520S 50MHz -40°C ~ 85°C
ECS-2520S25-500-FN-TR ECS 晶振 ECS-2520S 50MHz -40°C ~ 85°C
ECS-2520S18-100-FN-TR ECS 晶振 ECS-2520S 10MHz -40°C ~ 85°C
ECS-2520S18-100-FN-TR ECS 晶振 ECS-2520S 10MHz -40°C ~ 85°C
ECS-2520S18-100-FN-TR ECS 晶振 ECS-2520S 10MHz -40°C ~ 85°C
ECS-2520S18-120-FN-TR ECS 晶振 ECS-2520S 12MHz -40°C ~ 85°C
ECS-2520S18-120-FN-TR ECS 晶振 ECS-2520S 12MHz -40°C ~ 85°C
ECS-2520S18-120-FN-TR ECS 晶振 ECS-2520S 12MHz -40°C ~ 85°C
ECS-2520S18-160-FN-TR ECS 晶振 ECS-2520S 16MHz -40°C ~ 85°C
ECS-2520S18-160-FN-TR ECS 晶振 ECS-2520S 16MHz -40°C ~ 85°C
ECS-2520S18-160-FN-TR ECS 晶振 ECS-2520S 16MHz -40°C ~ 85°C
ECS-2520S18-240-FN-TR ECS 晶振 ECS-2520S 24MHz -40°C ~ 85°C
ECS-2520S18-240-FN-TR ECS 晶振 ECS-2520S 24MHz -40°C ~ 85°C
ECS-2520S18-240-FN-TR ECS 晶振 ECS-2520S 24MHz -40°C ~ 85°C
ECS-2520S18-250-FN-TR ECS 晶振 ECS-2520S 25MHz -40°C ~ 85°C
ECS-2520S18-250-FN-TR ECS 晶振 ECS-2520S 25MHz -40°C ~ 85°C
ECS-2520S18-250-FN-TR ECS 晶振 ECS-2520S 25MHz -40°C ~ 85°C
ECS-2520S18-260-FN-TR ECS 晶振 ECS-2520S 26MHz -40°C ~ 85°C
ECS-2520S18-260-FN-TR ECS 晶振 ECS-2520S 26MHz -40°C ~ 85°C
ECS-2520S18-260-FN-TR ECS 晶振 ECS-2520S 26MHz -40°C ~ 85°C
ECS-2520S18-320-FN-TR ECS 晶振 ECS-2520S 32MHz -40°C ~ 85°C
ECS-2520S18-320-FN-TR ECS 晶振 ECS-2520S 32MHz -40°C ~ 85°C
ECS-2520S18-320-FN-TR ECS 晶振 ECS-2520S 32MHz -40°C ~ 85°C
ECS-2520S18-400-FN-TR ECS 晶振 ECS-2520S 40MHz -40°C ~ 85°C
ECS-2520S18-400-FN-TR ECS 晶振 ECS-2520S 40MHz -40°C ~ 85°C
ECS-2520S18-400-FN-TR ECS 晶振 ECS-2520S 40MHz -40°C ~ 85°C
