愛普生SG7050EAN差分晶振X1G004291000800適用于光纖通信設備

返回列表 來源：壹兆電子 查看手機網址
掃一掃!愛普生SG7050EAN差分晶振X1G004291000800適用于光纖通信設備掃一掃!
 瀏覽：- 發布日期：2022-09-21 18:16:29【大 中 小】
分享到：

愛普生是日本有名的頻率元件制造商,專業生產銷售石英晶振,石英晶體振蕩器,貼片晶振,晶體濾波器等.發展至今已是國際有名的晶體元件制造商,致力于為客戶提供高性能,高可靠,高品質晶振產品

日本愛普生晶振推出LV-PECL差分輸出振蕩器，型號SG7050EAN，小體積尺寸7.0x5.0mm有源晶振，六腳貼片晶振，電源電壓2.5V或3.3V，通過使用PLL技術和AT晶體單元來實現覆蓋73.5MHz至700MHz中高頻晶振領域。頻率公差可以達到±20ppm、相位抖動為0.27ps typ.，具有高精度、高穩定性能，實現了-40℃至+85℃的較大的工作溫度范圍，該產品具有小體積輕薄型，低電源電壓，低抖動，低功耗，低損耗，低耗能，低相位噪聲等特點，能夠輕易識別網絡信號以及精確的處理雙極信號，廣泛應用于5G通訊設備、機頂盒、光端機、安防設備、路由器/交換機、儀器儀表、SATA，SAS，光纖通信設備，10G以太網及各種頻率控制設備上。愛普生SG7050EAN差分晶振X1G004291000800適用于光纖通信設備

產品編碼 型號 頻率 有源晶振 輸出波 電源電壓 工作溫度
X1G004291000100 SG7050EAN 125.000000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291000200 SG7050EAN 155.520000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291000300 SG7050EAN 312.500000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291000400 SG7050EAN 150.000000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291000500 SG7050EAN 156.250000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291000600 SG7050EAN 125.006250MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291000800 SG7050EAN 100.000000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291000900 SG7050EAN 200.000000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291001000 SG7050EAN 400.000000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291001100 SG7050EAN 106.250000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291001300 SG7050EAN 74.250000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291001400 SG7050EAN 148.500000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291001600 SG7050EAN 312.515625MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291001700 SG7050EAN 161.132800MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291001900 SG7050EAN 700.000000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291002000 SG7050EAN 125.000000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291002100 SG7050EAN 125.006250MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291002200 SG7050EAN 133.330000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291002300 SG7050EAN 100.000000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291002400 SG7050EAN 200.000000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291002600 SG7050EAN 106.250000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291002700 SG7050EAN 212.500000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C

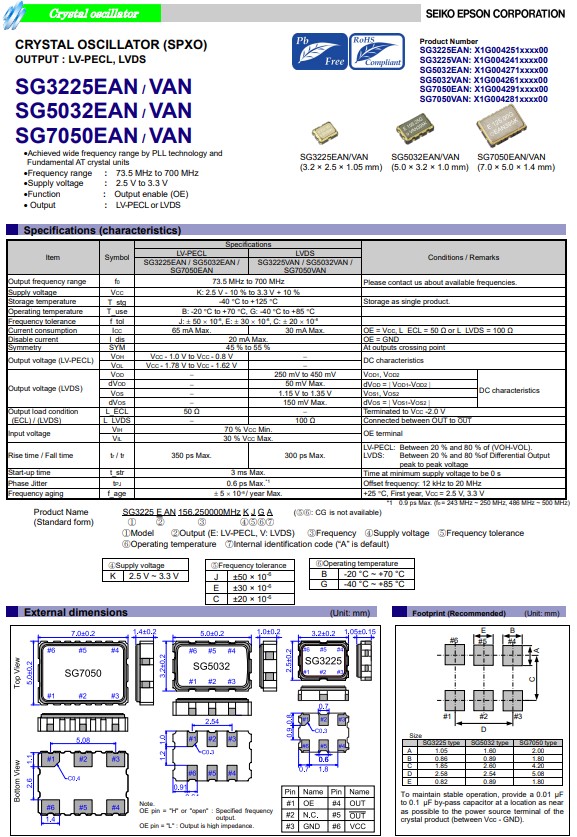

SG3225EAN，VAN,SG5032EAN,VAN,SG7050EAN,VAN,

X1G004291010500 SG7050EAN 698.812335MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291010600 SG7050EAN 153.600000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291010700 SG7050EAN 644.531200MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G004291010800 SG7050EAN 155.520000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G004291011000 SG7050EAN 250.000000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291011200 SG7050EAN 80.000000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291011400 SG7050EAN 156.253800MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G004291011500 SG7050EAN 156.257812MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291011600 SG7050EAN 114.625000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291012000 SG7050EAN 350.000000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G004291012400 SG7050EAN 156.253906MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291012500 SG7050EAN 156.253906MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291012800 SG7050EAN 125.003700MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G004291013300 SG7050EAN 322.562500MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291013400 SG7050EAN 120.000000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291013500 SG7050EAN 135.000000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291013600 SG7050EAN 322.265625MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291013700 SG7050EAN 77.760000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291013800 SG7050EAN 112.500000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291013900 SG7050EAN 137.500000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291014000 SG7050EAN 167.332000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291014100 SG7050EAN 222.230000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291014200 SG7050EAN 121.500000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291014300 SG7050EAN 300.000000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G004291014400 SG7050EAN 133.000000MHz 7.00x5.00x1.60mm LV-PECL 2.250 to 3.630 V -40 to 85 °C

愛普生SG7050EAN差分晶振X1G004291000800適用于光纖通信設備

差分晶振一般為六腳貼片，工作溫度范圍-40℃至+85℃，差分晶振的頻率相對都比較高，比如從50MHz起可以做到700MHz或者更低和更高頻率，且任意頻率精確到個位小數點后六位。電源電壓能夠做到2.5V-3.3V之間。例如：2.25V、2.5V 、3.0V、3.3V、3.6V 可任意選擇應用。常見的封裝尺寸有7.0x5.0mm，5.0x3.2mm，3.2x2.5mm，更小封裝可達到2.5x2.0mm石英晶振，常用的輸出方式主要有LVPECL和LVDS兩種。
