lora模塊數據傳輸專用晶振SG3225VEN編碼X1G005351003300

返回列表 來源：壹兆電子 查看手機網址
掃一掃!lora模塊數據傳輸專用晶振SG3225VEN編碼X1G005351003300掃一掃!
 瀏覽：- 發布日期：2022-09-15 16:53:45【大 中 小】
分享到：

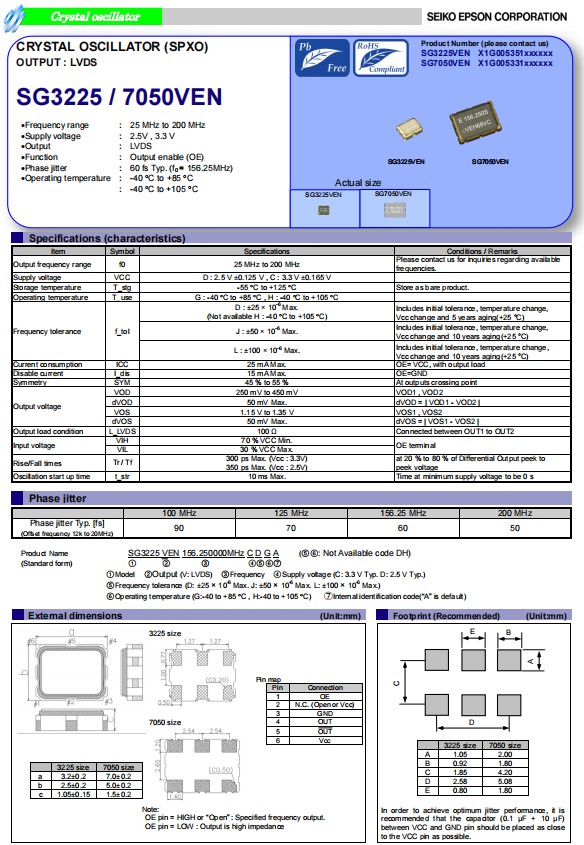

日本進口愛普生晶振SG3225VEN，是一款LVDS差分輸出振蕩器，小體積晶振尺寸3.2x2.5mm 六腳貼片晶振，電源電壓2.5V,3.3V，寬頻率范圍25MHz至200MHz任意一頻點具有低電源電壓，滿足產品低消耗電流特點，該產品具有超小型，輕薄型，低抖動，低功耗，低損耗，低耗能，低相位噪聲，低電平等特點，能夠輕易識別網絡信號以及精確的處理雙極信號。SG3225VEN有源晶振被廣泛應用于5G通訊設備、機頂盒、光端機、安防設備、路由器/交換機、儀器儀表、Lora模塊，SAS，光纖通信，10G以太網及各種頻率控制設備上。

lora模塊數據傳輸專用晶振SG3225VEN編碼X1G005351003300

產品編碼 型號 頻率 愛普生晶振 輸出波 電源電壓 工作溫度
X1G005521000100 SG3225VEN 212.500000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 85°C
X1G005521000200 SG3225VEN 312.500000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 85°C
X1G005521000500 SG3225VEN 322.265600MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 85°C
X1G005521000900 SG3225VEN 333.330000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 85°C
X1G005521001100 SG3225VEN 245.760000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 85°C
X1G005521100700 SG3225VEN 322.265625MHz 3.20x2.50x1.20mm LVDS 2.375 to 2.625V -40 to 85°C
X1G005351000100 SG3225VEN 72.000000MHz 3.20x2.50x1.20mm LVDS 2.375 to 2.625V -40 to 85°C
X1G005351000200 SG3225VEN 125.000000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 85°C
X1G005351000300 SG3225VEN 156.250000MHz 3.20x2.50x1.20mm LVDS 2.375 to 2.625V -40 to 85°C
X1G005351000700 SG3225VEN 156.250000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 85°C
X1G005351000800 SG3225VEN 156.250000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 85°C
X1G005351001100 SG3225VEN 100.000000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 85°C
X1G005351001200 SG3225VEN 125.000000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 85°C
X1G005351001900 SG3225VEN 100.000000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 85°C
X1G005351002000 SG3225VEN 100.000000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 105°C
X1G005351002100 SG3225VEN 148.351640MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 105°C

SG3225VEN，SG7050VEN

X1G005351002200 SG3225VEN 148.500000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 105°C
X1G005351002300 SG3225VEN 200.000000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 105°C
X1G005351002400 SG3225VEN 74.250000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 105°C
X1G005351002600 SG3225VEN 30.000000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 85°C
X1G005351002700 SG3225VEN 36.000000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 85°C
X1G005351002800 SG3225VEN 42.000000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 85°C
X1G005351002900 SG3225VEN 48.000000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 85°C
X1G005351003000 SG3225VEN 54.000000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 85°C
X1G005351003100 SG3225VEN 60.000000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 85°C
X1G005351003200 SG3225VEN 70.656000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 85°C
X1G005351003300 SG3225VEN 150.000000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 85°C
X1G005351003400 SG3225VEN 182.000000MHz 3.20x2.50x1.20mm LVDS貼片晶振 3.135 to 3.465V -40 to 105°C
X1G005351003600 SG3225VEN 156.250000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 105°C
X1G005351003700 SG3225VEN 200.000000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 85°C
X1G005351004100 SG3225VEN 135.000000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 85°C
X1G005351004200 SG3225VEN 200.000000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 85°C
X1G005351004400 SG3225VEN 25.000000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 85°C
X1G005351004500 SG3225VEN 27.000000MHz 3.20x2.50x1.20mm LVDS 3.135 to 3.465V -40 to 85°C
lora模塊數據傳輸專用晶振SG3225VEN編碼X1G005351003300

差分晶振常見的是3225晶振,5032晶振,7050晶振三種封裝尺寸,文中所列舉的是愛普生3225體積的部分差分晶振編碼.均為較高的頻率點,為輸出LVDS方式,電源電壓范圍2.5V/3.3V,振蕩啟動時間在電源電壓最低時,所需時間為0秒.愛普生差分晶振具有性能強,精密穩定,低電壓的特征,普遍用于對于高速網絡要求的應用.
