WIFI模塊應用晶振SG5032VAN差分輸出振蕩器X1G004261002000
愛普生是日本有名的頻率元件制造商,專業生產銷售石英晶振,石英晶體振蕩器,貼片晶振,晶體濾波器等.發展至今已是國際有名的晶體元件制造商,致力于為客戶提供高性能,高可靠,高品質晶振產品。

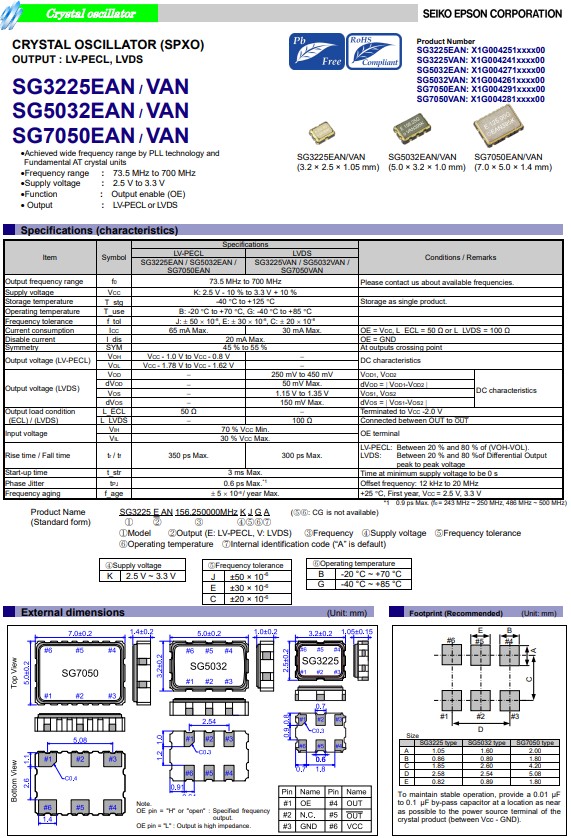

日本進口愛普生晶振推出SG5032VAN,是一款LVDS差分輸出振蕩器,小體積晶振5.0x3.2mm,六腳貼片晶振,有源晶振,電源電壓2.5V至3.3V,寬頻率范圍73.5MHz至700MHz,任意一頻點具有低電源電壓,滿足產品低消耗電流的特點,該產品具有超小型,輕薄型,低抖動,低電源電壓,低功耗,低損耗,低耗能,低相位噪聲,低電平等特點,能夠輕易識別網絡信號以及精確的處理雙極信號.被廣泛用于通訊設備,WIFI,機頂盒,光端機,安防設備及各種頻率控制設備上.WIFI模塊應用晶振SG5032VAN差分輸出振蕩器X1G004261002000
愛普生晶振 | 型號 | 頻率 | 尺寸 | 輸出波 | 電源電壓 | 工作溫度 |
X1G004261000100 | SG5032VAN | 100.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261000200 | SG5032VAN | 125.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261000500 | SG5032VAN | 200.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261000600 | SG5032VAN | 156.250000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261001100 | SG5032VAN | 148.500000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261001300 | SG5032VAN | 150.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261001400 | SG5032VAN | 155.520000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261002000 | SG5032VAN | 125.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261002100 | SG5032VAN | 125.006250MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261002300 | SG5032VAN | 100.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261002400 | SG5032VAN | 200.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261002500 | SG5032VAN | 400.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261002900 | SG5032VAN | 148.500000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261003100 | SG5032VAN | 150.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261003300 | SG5032VAN | 156.250000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261003400 | SG5032VAN | 312.500000MHz | 5.00x3.20x1.20mm | 差分晶振 | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261004300 | SG5032VAN | 200.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
X1G004261006200 | SG5032VAN | 200.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
X1G004261006700 | SG5032VAN | 148.500000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
X1G004261006900 | SG5032VAN | 150.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
X1G004261007100 | SG5032VAN | 156.250000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
X1G004261010200 | SG5032VAN | 250.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261010700 | SG5032VAN | 153.600000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261011400 | SG5032VAN | 78.125000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261011900 | SG5032VAN | 120.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261012100 | SG5032VAN | 644.531250MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261012500 | SG5032VAN | 148.351600MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261012600 | SG5032VAN | 133.333300MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261012800 | SG5032VAN | 250.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261012900 | SG5032VAN | 135.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261013100 | SG5032VAN | 322.265625MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261013300 | SG5032VAN | 230.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261013500 | SG5032VAN | 148.351600MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261013600 | SG5032VAN | 644.531250MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261013800 | SG5032VAN | 148.351600MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
X1G004261014100 | SG5032VAN | 161.132812MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
X1G004261014300 | SG5032VAN | 625.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
LVDS(Low Voltage Differential Signaling)它是一種低擺幅的差分信號技術,它使得信號能夠在差PCB線對或平衡電纜上以幾百的Mbps的速率傳輸,其低壓幅以及低電流驅動輸出實現了低噪聲以及低功耗。LVDS(Low Voltage Differential Signaling)是一種小振幅差分信號技術,LVDS差分晶振信號傳輸一般由三部分組成:差分信號發送器,差分信號互聯器,差分信號接收器。
