亞陶晶振KX251系列低電流和高度穩定性的實時時鐘振蕩器KX2513G0032.768000
我們的32.768k晶體振蕩器(XO)具有適用于各種應用的卓越性能。我們的產品包括世界上最小的32.768kHz晶體振蕩器(XO)，尺寸僅為2.0x1.6mm（KM系列）。KM系列旨在應對小型化的挑戰，同時保持時序信號的卓越精度。我們還提供KX系列晶體振蕩器，它們是業界功耗最低（小于10µA）和最嚴格穩定性 (+/- 20ppm) 的32kHz XO。
由于許多低功耗和便攜式應用程序大部分時間都處于待機模式，因此這些系統必須最大限度地降低待機功耗。我們基于32.768kHz的定時源允許這些系統快速轉換到待機模式（<10ms），以最大限度地延長電池壽命，而不會犧牲維持準確時鐘和日歷所需的穩定性（± 20ppm）。
由于許多低功耗和便攜式應用程序大部分時間都處于待機模式，因此這些系統必須最大限度地降低待機功耗。我們基于32.768kHz的定時源允許這些系統快速轉換到待機模式（<10ms），以最大限度地延長電池壽命，而不會犧牲維持準確時鐘和日歷所需的穩定性（± 20ppm）。
亞陶晶振KX251系列低電流和高度穩定性的實時時鐘振蕩器KX2513G0032.768000
| KX3213G0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX3211H0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KD3270043 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KN3270026 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±25ppm |
| KN3270034 | 百利通亞陶晶振 | SaRonix-eCera™ KN | 32.768kHz | ±25ppm |
| KD3270012 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KK3270040 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm |
| KK3270042 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm |
| KK3270044 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm |
| KN3270027 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±20ppm |
| KD3270033 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±20ppm |
| KN3270030 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±20ppm |
| KD3270039 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±20ppm |
| KN3270023 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±50ppm |
| FNC500129 | Diodes Incorporated | SaRonix-eCera™ FN | 125MHz | ±50ppm |
| KN3270036 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±25ppm |
| KN3270029 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±25ppm |
| KX2511B0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX2511C0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm |
| KX2511E0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm |
| KX2511H0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX2513C0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm |
| KX2513E0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm |
| KX2513H0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX2513B0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KD3270038 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |

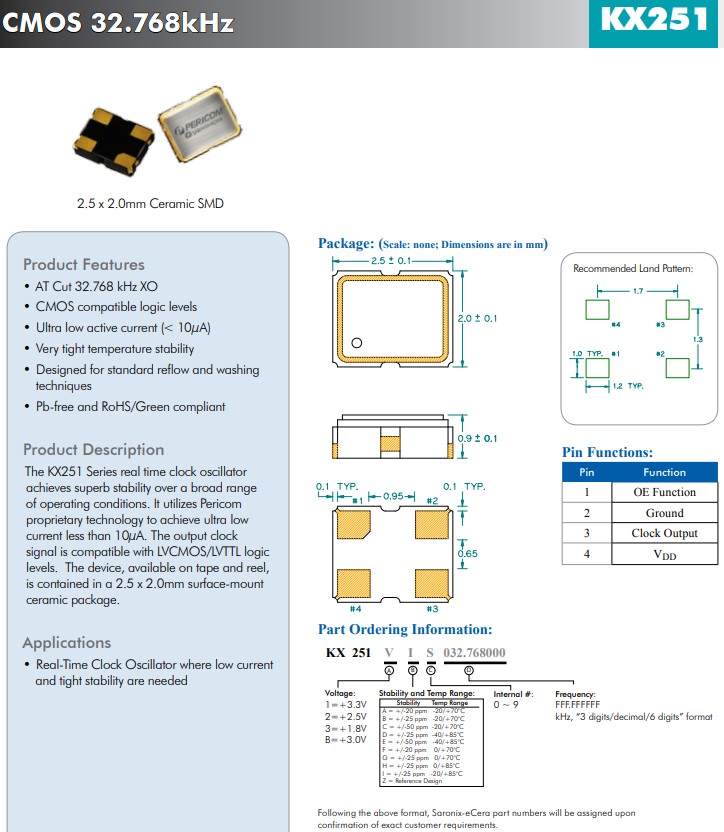

KX251系列實時時鐘晶體振蕩器在廣泛的工作條件下實現了卓越的穩定性。電源電壓1.8V/2.5V/3.3V，小體積晶振尺寸2.5x2.0mm, 32.768kHz CMOS晶體振蕩器它利用Pericom專有技術實現小于10μA的超低電流。輸出時鐘信號與LVCMOS/LVTTL邏輯電平兼容。該器件采用卷帶包裝，采用2.5x2.0mm表面貼裝陶瓷封裝。
特征：
AT Cut 32.768k XO振蕩器
CMOS兼容邏輯電平
超低有功電流（< 10μA）
非常嚴格的溫度穩定性
專為標準回流和清洗技術而設計
無鉛且符合RoHS/Green標準
應用：需要低電流和高度穩定性的實時時鐘振蕩器
亞陶晶振KX251系列低電流和高度穩定性的實時時鐘振蕩器KX2513G0032.768000
| KD3270038 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KD3270038 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KN3270025 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±25ppm |
| KX2513A0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±20ppm |
| KD3270041 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±20ppm |
| KN3270024 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±20ppm |
| KK3270047 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm |
| KD3270044 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KD3270044 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KD3270044 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KN3270035 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±25ppm |
| KK3270007 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| KK3270053 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±20ppm |
| KK3270041 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±20ppm |
| KK3270043 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| S1700C-20.0000 | Diodes Incorporated | SaRonix™ S1700 | 20MHz | ±100ppm |
| KK3270048 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±20ppm |
| KX3213H0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX3213E0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm |
| KX3213A0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±20ppm |
| KX3213D0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX3213Z0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | - |
| KX2511G0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| NX5011C0056.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 56MHz | ±50ppm |
| KX2511D0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX2511Z0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | - |
| NX7011E0059.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 59MHz | ±50ppm |
| FRSONT019 | Diodes Incorporated | SaRonix-eCera™ FR | 19.44MHz | ±25ppm |
亞陶晶振KX251系列低電流和高度穩定性的實時時鐘振蕩器KX2513G0032.768000
產品參數
| 輸出邏輯 | CMOS |
|---|---|
| 電源電壓 (V) | 1.8,2.5,3.3 |
| 包裝尺寸（毫米） | 2.5x2.0x0.9振蕩器 |
| 包裝類型 | 陶瓷縫 |
| 穩定性 (PPM) | 20 到 50 |
| 產品系列 | KX251 |
| 頻率范圍 (MHz) | 32.768KHZ |
| 抖動均方根 (ps) | <1 PS |
| 墊 | 4 |
| 家庭 | 千赫XO |
| KX201 | 1.82.53.3 | 2.0 x 1.6 x 0.75 | 陶瓷縫 | 20~50 | KX201 | 32.768KHZ | <1 | 4 | 1.8V/2.5V/3.3V, 2.0x1.6mm, 32.768kHz CMOS 晶體振蕩器 | |
|---|---|---|---|---|---|---|---|---|---|---|
| KX251 | 1.82.53.3 | 2.5 x 2.0 x 0.9 | 陶瓷縫 | 20~50 | KX251 | 32.768KHZ | <1 | 4 | 1.8V/2.5V/3.3V, 2.5x2.0mm, 32.768kHz CMOS晶體振蕩器 | |
| KX31Q | 3.32.51.8 | 3.2 x 2.5 | 陶瓷縫 | 20~50 | KXQ | 32.768KHZ | <1 | 4 | 1.8/2.5/3.3V、3.2x2.5mm、超低電流、32.768KHz、汽車級CMOS晶體振蕩器 | |
| KX321 | 1.82.53.3 | 3.2 x 2.5 x 1.0 | 陶瓷縫 | 20~50 | KX321 | 32.768KHZ | <1 | 4 | 1.8V/2.5V/3.3V, 3.2x2.5mm, 32.768kHz CMOS 晶體振蕩器 | |
| KX501 | 1.82.53.3 | 5.0 x 3.2 x 1.2 | 陶瓷縫 | 20~50 | KX501 | 32.768KHZ | <1 | 4 | 1.8V/2.5V/3.3V, 5.0x3.2mm, 32.768kHz CMOS 晶體振蕩器 |
